The outer spherical bearing with a seat is a bearing unit that combines a rolling bearing with a bearing seat. Most of the outer spherical bearings are made of a spherical outer diameter, and are installed together with a bearing seat with a spherical inner hole. The structure is diverse, and the versatility and interchangeability are good.

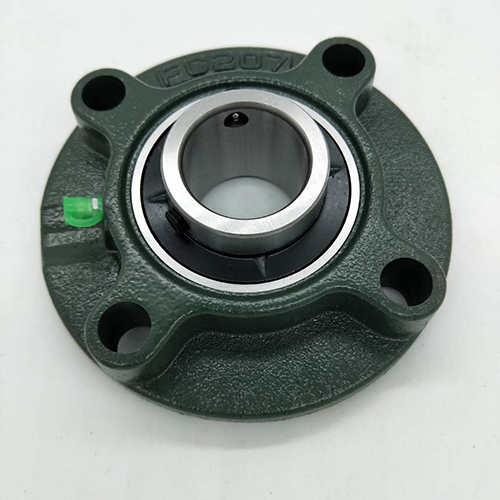

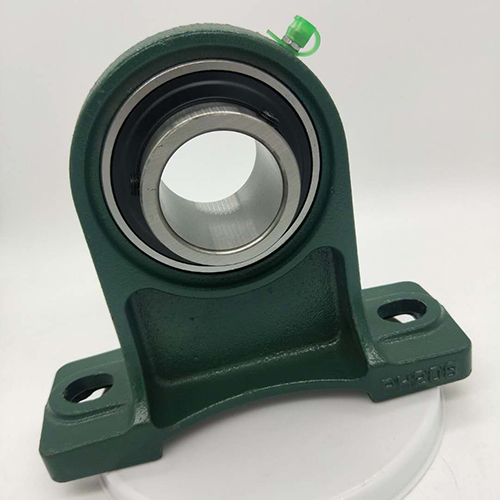

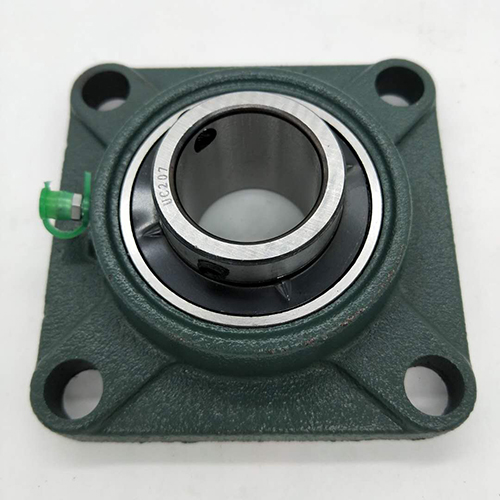

At the same time, this type of bearing also has a certain degree of alignment in design, is easy to install, and has a dual-structure sealing device that can work in harsh environments. The bearing seat is generally formed by casting. Commonly used seats include vertical seat (P), square seat (F), boss square seat (FS), boss round seat (FC), diamond seat (FL), ring seat (C), slider seat, etc. ( T).

The outer spherical bearing with seat is divided into the bearing core and the bearing seat. In the name, it is called the bearing core plus the bearing seat. For example, the outer spherical bearing with set screw UC205 is called UCP205. Because of the strong interchangeability of the outer spherical bearing with seat, the bearing core can be assembled in the same specification and different shape bearing seat at will.

ZZ BEARING can produce different type of bearing housing with competitive price ,for more bearing price ,sample ,pls contact us at info@bearings-factory.com/
