How are bearings manufactured?

How are bearings manufactured?

  • 2020-05-08

High quality ball bearing need more than 25 steps to finish production ,it  is much more complex than we can imagine.


ZZ BEARING have automic production line . the number of operations by doing multiple operations on the same tailored machine to increase flexibility and reduce production time. Here are deep groove ball bearing production process for your refernce :

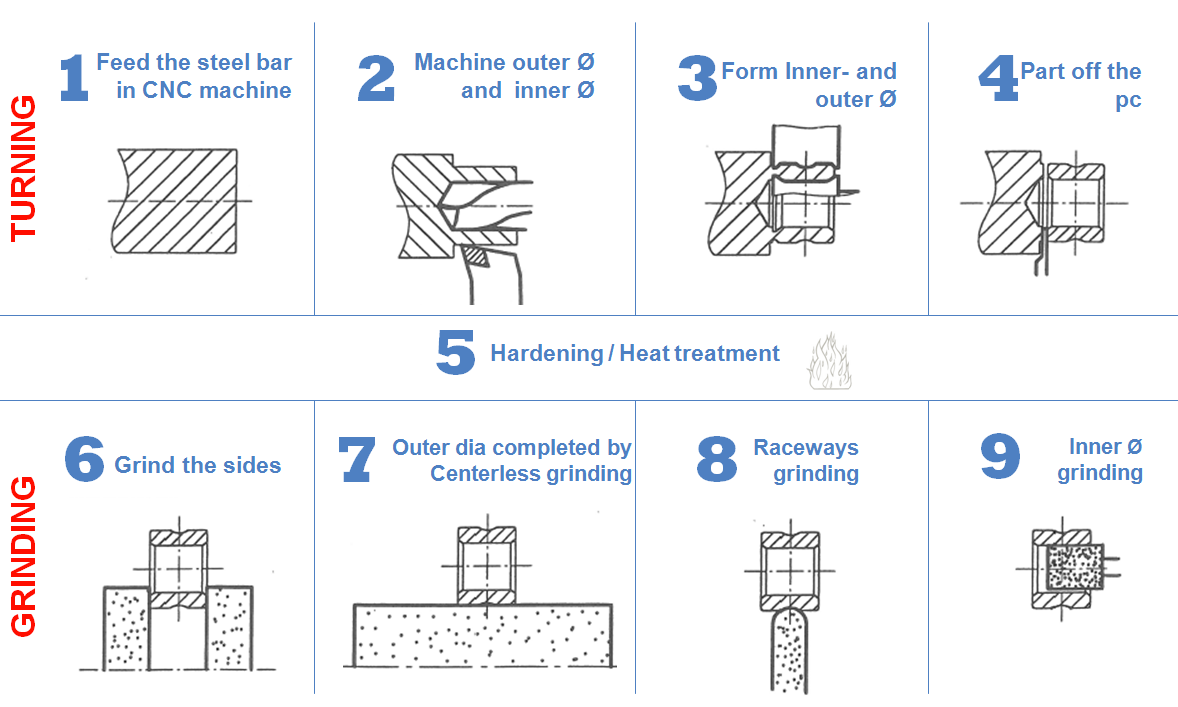

Inner Rings : With turning ,Grinding treatment

bearing inner ring production process


Inner Rings:

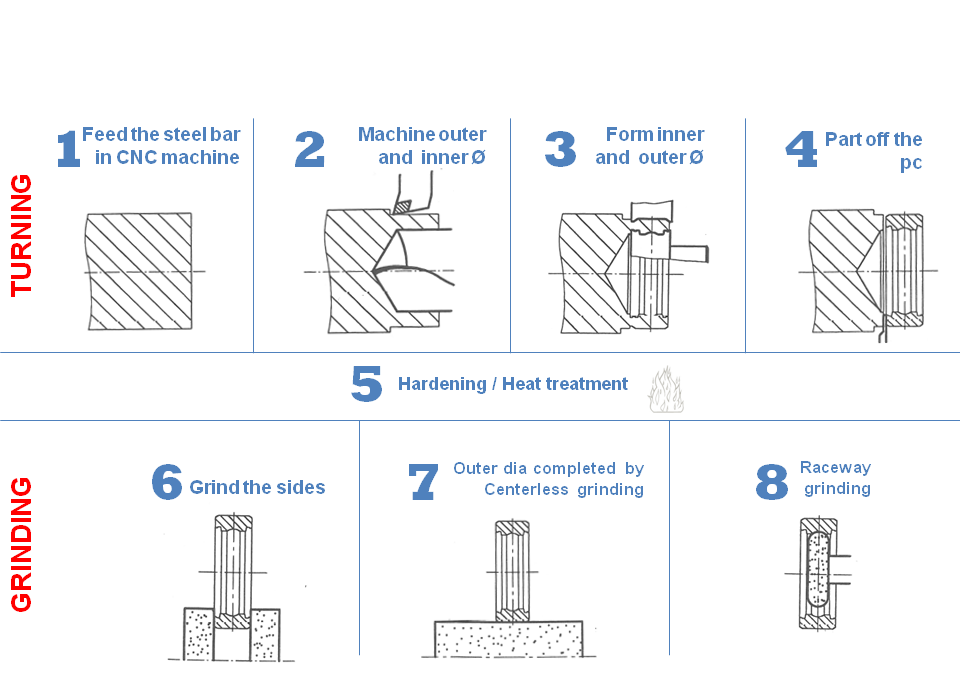

bearing outer ring production process

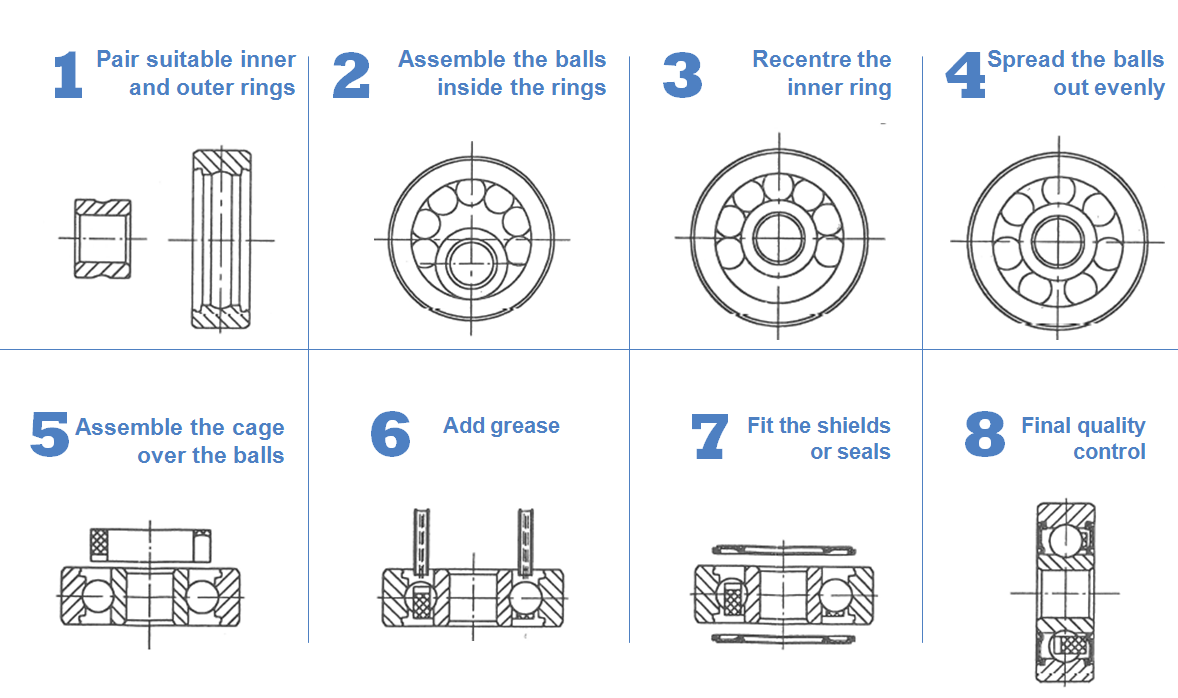

Assembly:

bearing assemble

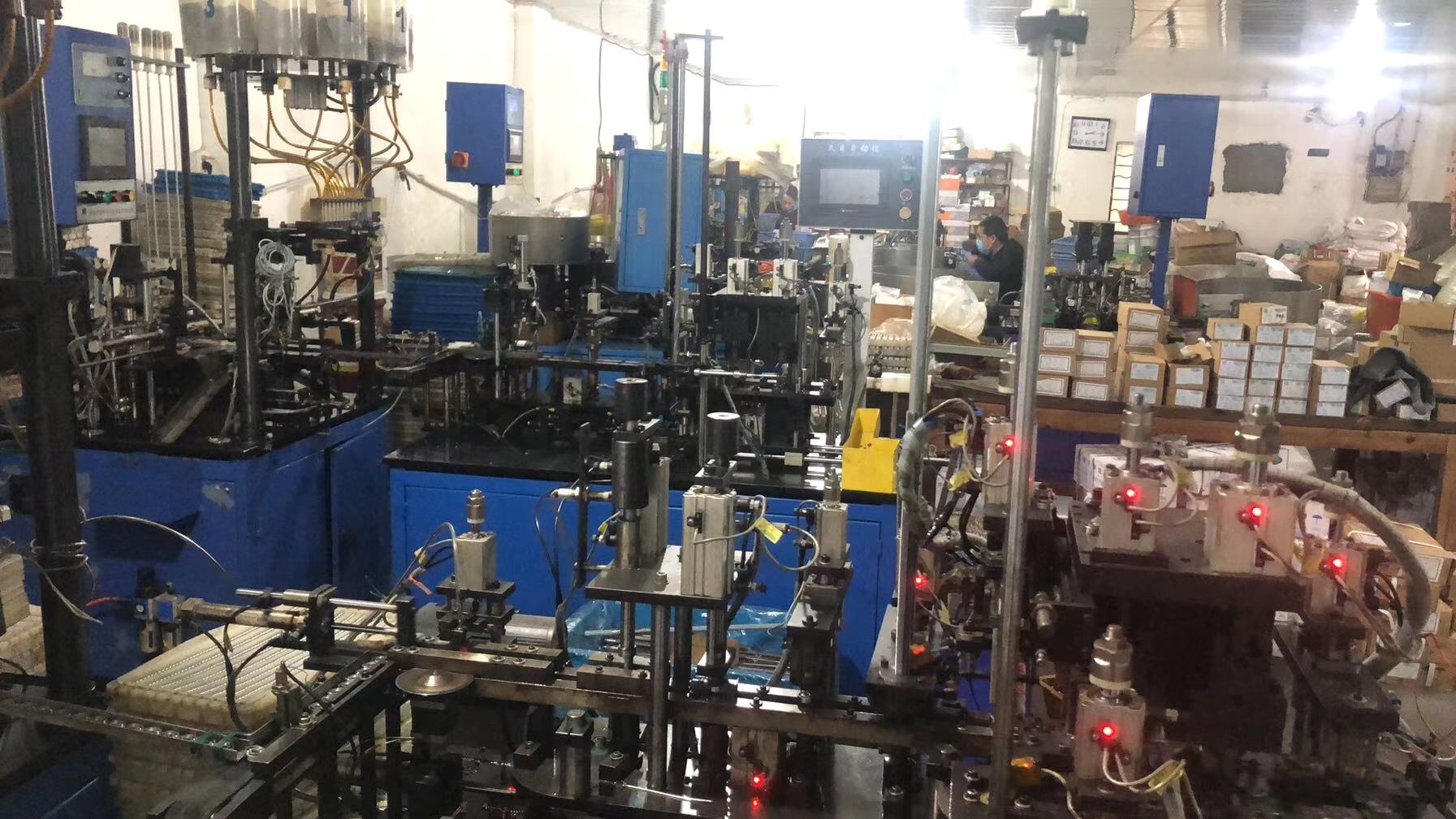

Below here is our workshop for your reference :
