ZZ BEARINGS Send RM3 Bearing Sample To Test Before Order
We can provide bearing sampel for you test before order .

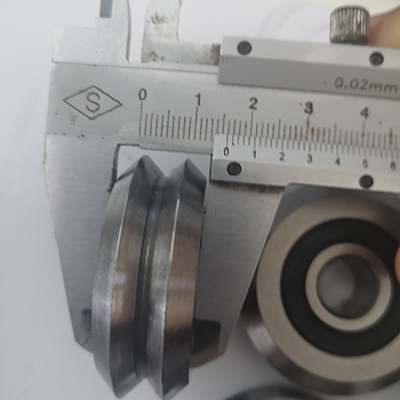

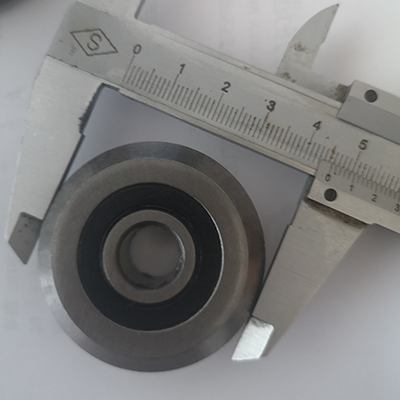

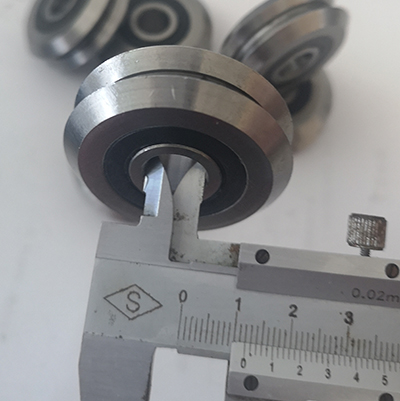

Below here is RM3-2RS 12*45.72*15.88mm guide rail roller bearing sample we provide for our customer .
 |
 |
 |
We also Can Produce Other Track Roller Bearings
such as :RM2 ZZ RM2 RS RM3 RS 3 / 8 V deep groove ball bearing
ZZ BEARINGS are bearing manufacturer ,we can produce different bearings for you .
Various structure: WV,LV,V,LFR,LR,W Series
Sealed type: Z, ZZ, RS, 2RS, 2RS1, NPP, KDD, P, PP, N, NR
Material: GCr15 Chrome Steel ,stainless steel
Below Here is our W series bearing number for your reference :
| Bearing No. | A1 | A2 | Chamfer r/min | Weight | |||||
| Bore | O.D. | Width | mm | Load | |||||
| mm | mm | mm | |||||||
| D1 | D | B | A1 | A2 | R/min | Cw(KN) | Cow(KN) | Kg | |
| W1 | 4.763 | 19.56 | 7.87 | 7.9. | 11.86 | 0.3 | 2.2 | 1 | 11 |
| W1X | 4.763 | 19.56 | 7.87 | 7.93 | 11.86 | 0.3 | 2.2 | 1 | 11 |
| W2 | 9.525 | 30.73 | 11.1 | 12.7 | 18.24 | 0.3 | 4.9 | 2.5 | 38 |
| W2X | 9.525 | 30.73 | 11.1 | 12.7 | 18.24 | 0.3 | 4.9 | 2.5 | 38 |
| W3 | 12 | 45.72 | 15.88 | 19.05 | 26.98 | 0.6 | 9.4 | 4.9 | 130 |
| W3X | 12 | 45.72 | 15.88 | 19.05 | 26.98 | 0.6 | 9.4 | 4.9 | 130 |
| W4 | 15 | 59.94 | 19.05 | 25.4 | 34.93 | 1 | 14.8 | 8.2 | 280 |
| W4X | 15 | 59.94 | 19.05 | 25.4 | 34.93 | 1 | 14.8 | 8.2 | 280 |
| RM1ZZ | 4.763 | 19.56 | 7.87 | 7.9. | 11.86 | 0.3 | 2.2 | 1 | 11 |
| RM1 2RS | 4.763 | 19.56 | 7.87 | 7.93 | 11.86 | 0.3 | 2.2 | 1 | 11 |
| RM2ZZ | 9.525 | 30.73 | 11.1 | 12.7 | 18.24 | 0.3 | 4.9 | 2.5 | 38 |
| RM2 2RS | 9.525 | 30.73 | 11.1 | 12.7 | 18.24 | 0.3 | 4.9 | 2.5 | 38 |
| RM3ZZ | 12 | 45.72 | 15.88 | 19.05 | 26.98 | 0.6 | 9.4 | 4.9 | 130 |
| RM3 2RS | 12 | 45.72 | 15.88 | 19.05 | 26.98 | 0.6 | 9.4 | 4.9 | 130 |
| RM4ZZ | 15 | 59.94 | 19.05 | 25.4 | 34.93 | 1 | 14.8 | 8.2 | 280 |
| RM4 2RS | 15 | 59.94 | 19.05 | 25.4 | 34.93 | 1 | 14.8 | 8.2 | 280 |
