ZZ BEARINGS Produce Gcr15 Hardened Roller For Customer

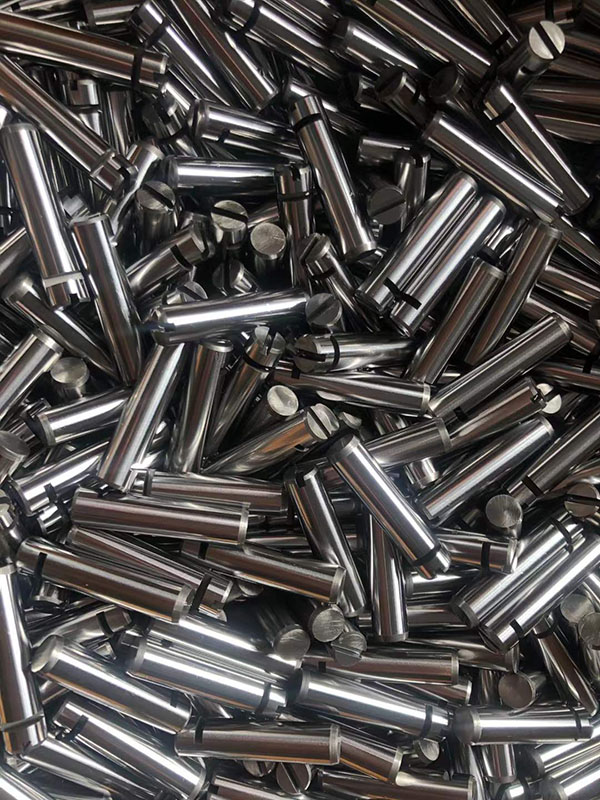

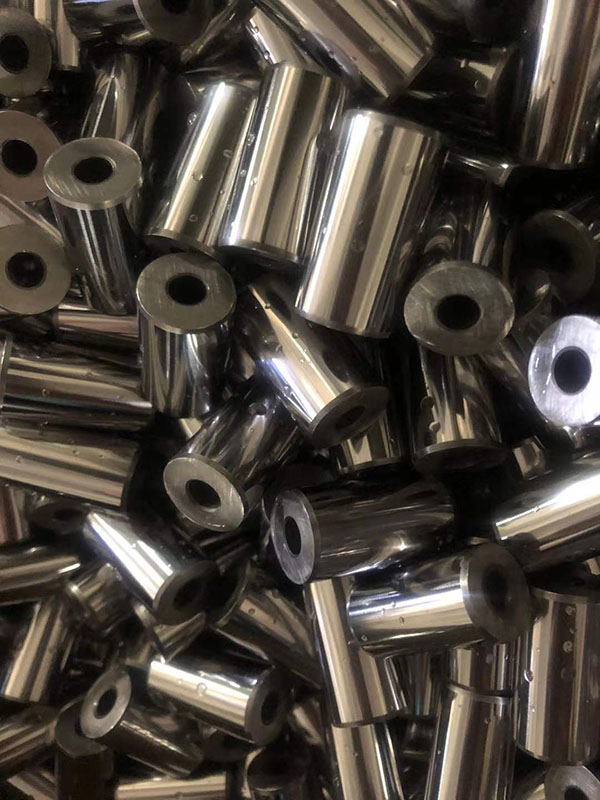

ZZ BEARINGS can produce different Size of Position Pin, Cylindrical Pin Roller for you
Such with dimension :
9.2*7,8.08*8,5.3*11,5.1*11,10.2*9.5,9.2*7,4*6,6*10,6*8,10*10,15*15,15.7*20mm
10*22.8,13*28.6,14*28.5,15*27.7,15*29,7.887*34,9*22,7*10mm
|
|
For material we can produce with stainless steel ,Chrome steel ,carbon steel and ceramic.
Below here is bearing steel chemical composition for your reference :
GCr15 Steel Chemical Composition
Chemical Composition % | ||||||||||||||||
Steel Grade | C | Si | Mn | Cr | Mo ≤ | Ni ≤ | Cu ≤ | P ≤ | S ≤ | Ca ≤ | O ≤ | Ti ≤ | Al ≤ | As ≤ | As+Sn+Sb ≤ | Pb ≤ |
GCr15 | 0.95-1.05 | 0.15-0.35 | 0.25-0.45 | 1.40-1.65 | 0.10 | 0.25 | 0.25 | 0.025 | 0.02 | – | 0.0012 | 0.005 | 0.05 | 0.04 | 0.075 | 0.002 |
|
|
