ZZ BEARING Finished Bearing Order Production

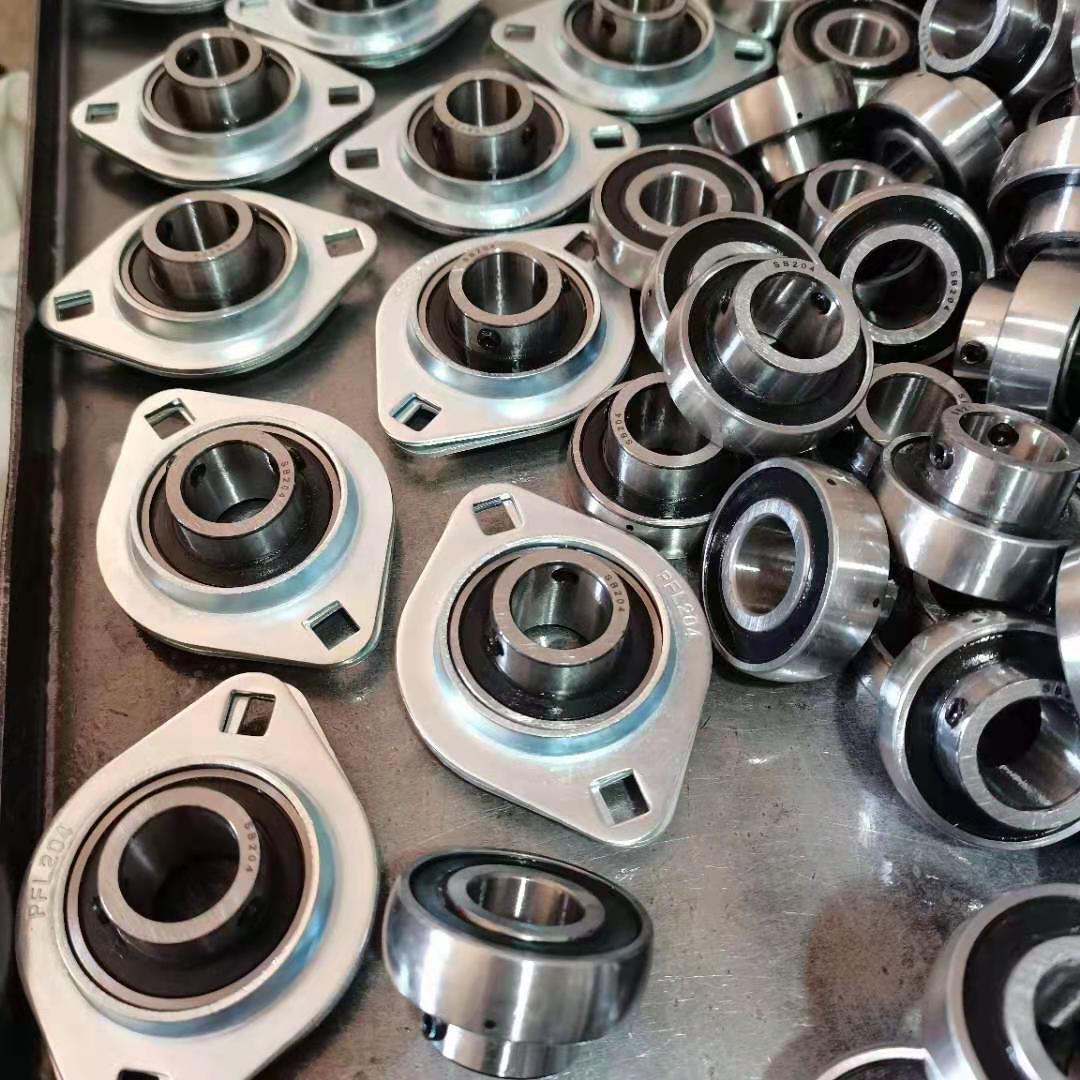

ZZ BEARING Can produce SBPFL series flange bearings for you .
Such as SBPFL 204 bearing ,they can used for agricultural machinery, conveyor systems, construction machines.
The bearing material are with Chrome steel Gcr15 with pressed steel, oval flange, setscrew type, 2 mount holes.
Bearing No.:SBPFL 204, SBPFL-204, SBPFL204.
 |
 |
2 bolt Flange bearings units
3 bolt Flange bearings units
4-Bolt Flange Bearing Units
Take -up bearings
insert bearings
SBPFL Series Pillow Block Ball Bearings No.:
|
bearing No.
|
Shaft Dia
|
Dimensions(mm)
|
||||
|
d
|
||||||
|
(in)
|
(mm)
|
H
|
J
|
L
|
A
|
|
|
SBPFL201
|
|
12
|
81
|
63.5
|
59
|
14
|
|
SBPFL201-8
|
1/2
|
|
81
|
63.5
|
59
|
14
|
|
SBPFL202
|
|
15
|
81
|
63.5
|
59
|
14
|
|
SBPFL202-10
|
5/8
|
|
81
|
63.5
|
59
|
14
|
|
SBPFL203
|
|
17
|
81
|
63.5
|
59
|
14
|
|
SBPFL203-11
|
11/16
|
|
81
|
63.5
|
59
|
14
|
|
SBPFL204
|
|
20
|
90
|
71.5
|
67
|
16
|
|
SBPFL204-12
|
3/4
|
|
90
|
71.5
|
67
|
16
|
|
SBPFL205
|
|
25
|
95
|
76
|
71
|
18
|
|
SBPFL205-14
|
7/8
|
|
95
|
76
|
71
|
18
|
|
SBPFL205-15
|
15/16
|
|
95
|
76
|
71
|
18
|
|
SBPFL205-16
|
1
|
|
95
|
76
|
71
|
18
|
|
SBPFL206
|
|
30
|
113
|
90.5
|
84
|
18
|
|
SBPFL206-18
|
1/1/8
|
|
113
|
90.5
|
84
|
18
|
|
SBPFL206-19
|
1/3/16
|
|
113
|
90.5
|
84
|
18
|
|
SBPFL206-20
|
1/1/4
|
|
113
|
90.5
|
84
|
18
|
|
SBPFL207
|
|
35
|
122
|
100
|
94
|
20
|
|
SBPFL207-20
|
1/1/4
|
|
122
|
100
|
94
|
20
|
|
SBPFL207-21
|
1/5/16
|
|
122
|
100
|
94
|
20
|
|
SBPFL207-22
|
1/3/8
|
|
122
|
100
|
94
|
20
|
|
SBPFL207-23
|
1/7/16
|
|
122
|
100
|
94
|
20
|
|
SBPFL208
|
|
40
|
147
|
119
|
106
|
23
|
|
SBPFL208-24
|
1/1/2
|
|
147
|
119
|
106
|
23
|
|
SBPFL208-25
|
1/9/16
|
|
147
|
119
|
106
|
23
|
For packing we can packed with white box /piece ,and with export and pallet .
