21308CC Radial Spherical Roller Bearings

40x90x 23mm 21308CC Bearing produce with Chrome steel material ,we have this bearing in stock .

item no.:
21308CC
lead time:
3 days
product orgin:
China ,Shanghai
shipping port:
NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
MOQ:
5

products details

Spherical Roller Bearing 21308 CC W33 C3 Specification :

Material :Chrome steel Gcr15

Dimension :

Inner diameter : 40mm

outer diameter :90mm

height:23mm

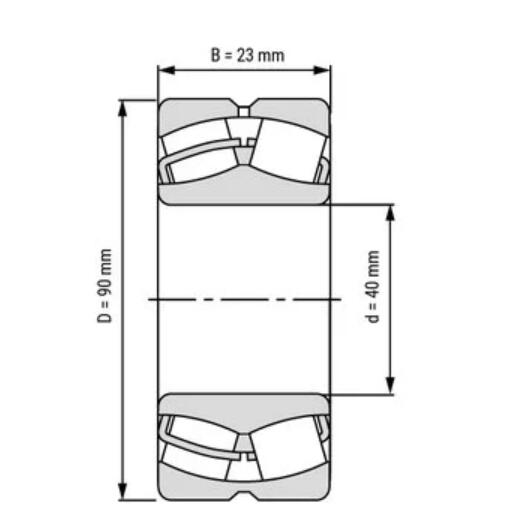

21308CC Bearing Dimension

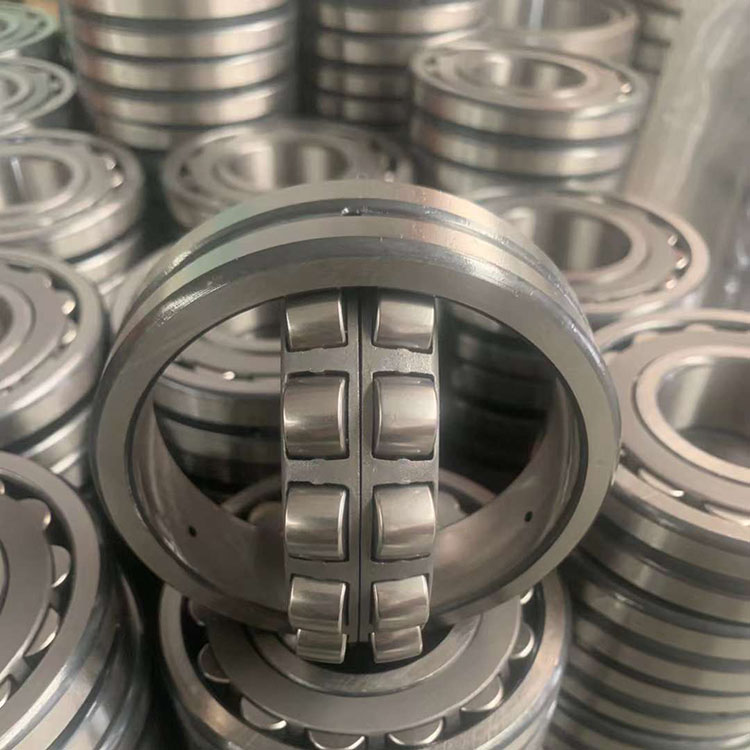

21308CC/W33C3 Bearing Picture :

21308CC/W33C3 Bearing

We can produce different type of spherical roller bearing for you ,such as CC,CA,MA,MB .

Bearing IN0,	Dimensions (mm)			Load Ratings (Kn)		Rotating speed (rpm)		mounting dimensions(mm)			Weight (kg)
	Dimensions (mm)			Load Ratings (Kn)		Rotating speed (rpm)		da	Da	ra	Weight (kg)
	d	D	B	Cr	Cor	Grease	Oil	Mmn	Max	Max	≈
21304	20	52	15	32	32	6100	7500	27	45	1.0	0.17
21305	25	62	17	42	45	5400	6800	32	55	1.0	0.25
21306	30	72	19	58	64	4400	5800	37	65	1.0	0.43
21307	35	80	21	65	75	4200	5400	44	71	1.5	0.52
21308	40	90	23	89	99	3800	4500	49	81	1.5	0.75
21309	45	100	25	106	118	3400	3800	54	91	1.5	1.03
21310	50	110	27	124	144	3000	4000	60	100	2.0	1.4
21311	55	120	29	146	175	2800	3400	65	110	2.0	1.68
21312	60	130	31	167	201	2600	3300	72	118	2.1	2
21313	65	140	33	188	235	2400	3200	77	128	2.1	2.57
21314	70	150	35	218	276	2200	2900	82	138	2.1	3.2
21315	75	160	37	245	311	2000	2800	87	148	2.1	3.76
21316	80	170	39	268	359	2000	2400	92	158	2.1	4.81
21317	85	180	41	307	397	1800	2200	99	166	2.5	5.3
21318	90	190	43	330	433	1600	2200	104	176	2.5	6.2
21319	95	200	45	366	500	1700	2200	109	186	2.5	7.1
21320	100	215	47	397	546	1600	2000	114	201	2.5	8.9
21321	105	225	49	420	575	1500	1900	119	211	2.5	10.1
21322	110	240	50	460	635	1400	1800	124	226	2.5	11.82
