 LFR5201KDD U Groove Track Roller Bearings

new products
LFR5201-10 KDD Bearings LFR5201-10 KDD Bearings LFR5201-10 KDD Bearings

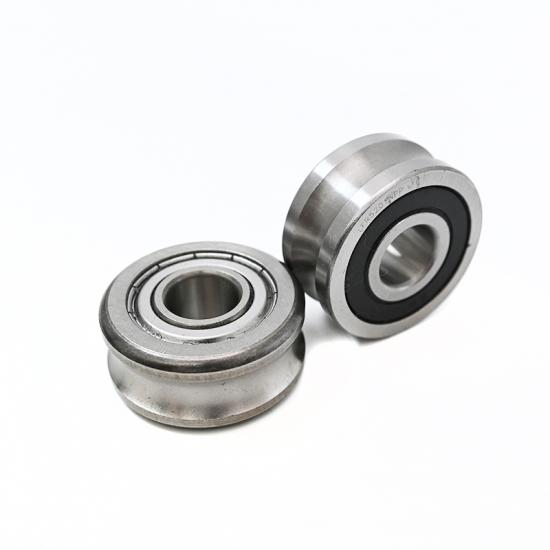

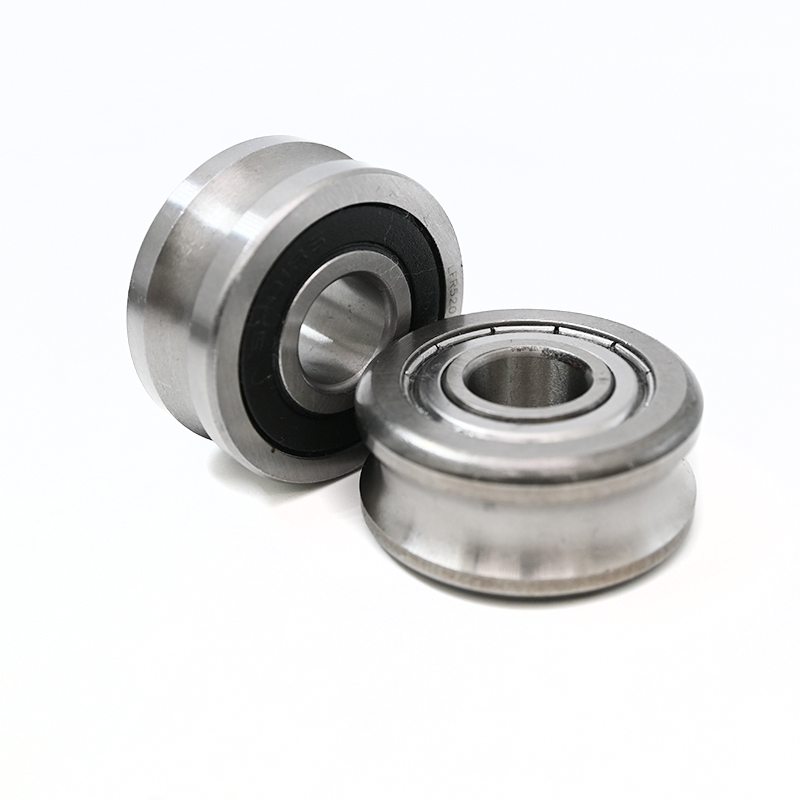

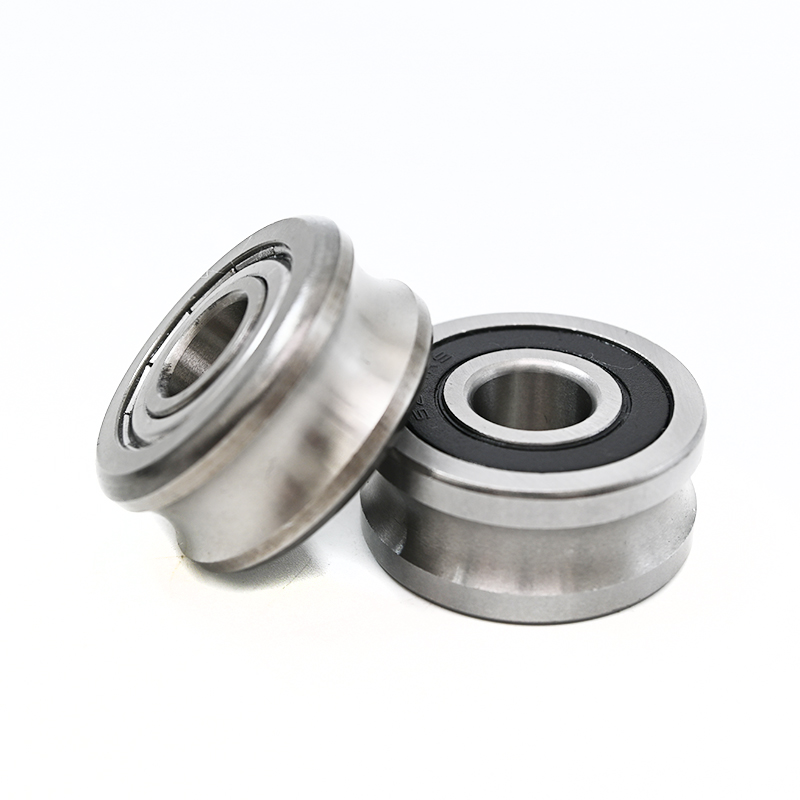

LFR5201KDD U Groove Track Roller Bearings

12x35x15.9mm LFR5201KDD U groove track roller bearings are produce with Chrome steel Gcr15 ,we can provide sample for you test .

  • item no.:

    LFR5201KDD

  • lead time:

    7 days

  • product orgin:

    China ,Shanghai

  • shipping port:

    NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI

  • MOQ:

    100
contact us
products details

LFR5201KDD U Groove Track Roller Bearings Specification :


Groove Diameter: 10 mm

Inner Diameter: 12 mm

Outer Diameter: 35 mm

Inner Thickness: 15.9 mm

Outer Thickness: 15.9 mm

Weight: 0.068 kg

Closure type:metal shield (KDD/2Z) or rubble seal (NPP/2RS)

Material : Chrome steel or stainless steel

LFR 5201 KDD bearing
LFR5201KDD U Groove Track Roller Bearings

We can Produce Other LFR Series U Groove Track Roller Bearings:

Dimensions Load Ratings Limiting Speed Mass
dw d +0-0.008 D C B A rs Cr Cor
  mm KN r/min ≈(g)
LFR 50/4-5 NPP 5 4 13 6 7 8.04 0.2 1.48 0.66 21000 0.004
LFR 50/5-4 KDD 4 5 16 7 8 9 0.2 1.75 0.92 26000 0.007
LFR 50/5-4 NPP 4 5 16 7 8 9 0.2 1.75 0.92 15000 0.007
LFR 50/5 KDD 6 5 17 7 8 10.5 0.2 1.75 0.92 26000 0.008
LFR 50/5 NPP 6 5 17 7 8 10.5 0.2 1.75 0.92 15000 0.008
LFR 50/6 KDD 6 6 19 8.5 9 11.5 0.3 3.05 1.4 26000 0.007
LFR 50/6 NPP 6 6 19 8.5 9 11.5 0.3 3.05 1.4 15000 0.007
LFR 50/8 KDD 6 8 24 11 11 14 0.3 5.09 2.6 20000 0.024
LFR 50/8 NPP 6 8 24 11 11 14 0.3 5.09 2.6 11000 0.024
LFR 50/8-8 KDD 8 8 24 11 11 14.75 0.3 5.09 2.6 20000 0.024
LFR 50/8-8 NPP 8 8 24 11 11 14.75 0.3 5.09 2.6 11000 0.024
LFR 5201 KDD 10 12 35 15.9 15.9 20.65 0.3 10.5 5.8 15000 0.068
LFR 5201 NPP 10 12 35 15.9 15.9 20.65 0.3 10.5 5.8 7200 0.068
LFR 5201-12 KDD 12 12 35 15.9 15.9 21.75 0.3 10.5 5.8 15000 0.068
LFR 5201-12 NPP 12 12 35 15.9 15.9 21.75 0.3 10.5 5.8 7200 0.068
LFR 5201-14 KDD 14 12 39.9 18 20 24 0.3 10.5 5.8 15000 0.107
LFR 5201-14 NPP 14 12 39.9 18 20 24 0.3 10.5 5.8 7200 0.107
LFR 5201-10.40 KDD 10 12 39.9 18 20 22 0.3 10.5 5.8 15000 0.115
LFR 5201-10.40 NPP 10 12 39.9 18 20 22 0.3 10.5 5.8 7200 0.115
LFR 5202-12 KDD 12 15 45 15.9 15.9 26.5 0.6 11.7 7 13000 0.12
LFR 5202-12 NPP 12 15 45 15.9 15.9 26.5 0.6 11.7 7 6000 0.12
LFR 5204-16 KDD 16 20 52 20.6 22.6 31.5 0.6 19.6 12.6 10000 0.195
LFR 5204-16 NPP 16 20 52 20.6 22.6 31.5 0.6 19.6 12.6 4500 0.195
LFR 5206-20 KDD 20 25 72 23.8 25.8 41 0.6 29.5 21.1 7500 0.435
LFR 5206-20 NPP 20 25 72 23.8 25.8 41 0.6 29.5 21.1 3500 0.435
LFR 5206-25 KDD 25 25 72 23.8 25.8 43.5 0.6 29.5 21.1 7500 0.425
LFR 5206-25 NPP 25 25 72 23.8 25.8 43.5 0.6 29.5 21.1 3500 0.425
LFR 5207-30 KDD 30 30 80 27 29 51 1 39 28.6 6500 0.66
LFR 5207-30 NPP 30 30 80 27 29 51 1 39 28.6 3000 0.66
LFR 5208-40 KDD 40 40 98 36 38 62.5 1 44.7 33.8 6000 1.36
LFR 5208-40 NPP 40 40 98 36 38 62.5 1 44.7 33.8 2500 1.36
LFR 5301 KDD 10 12 42 19 19 24 0.6 15.4 8.2 14000 0.13
LFR 5301 NPP 10 12 42 19 19 24 0.6 15.4 8.2 6500 0.13
LFR 5301-20 KDD 20 12 42 19 19 28 0.6 13 7.7 14000 0.125
LFR 5301-20 NPP 20 12 42 19 19 28 0.6 13 7.7 6500 0.125
LFR 5302 KDD 10 15 47 19 19 26.65 1 17.7 10.3 12000 0.163
LFR 5302 NPP 10 15 47 19 19 26.65 1 17.7 10.3 5500 0.163
LFR5308-50 KDD 50 40 110 44 46 72.5 1.1 62.3 45.2 5500 1.4
LFR5308-50 NPP 50 40 110 44 46 72.5 1.1 62.3 45.2 2300 1.4
