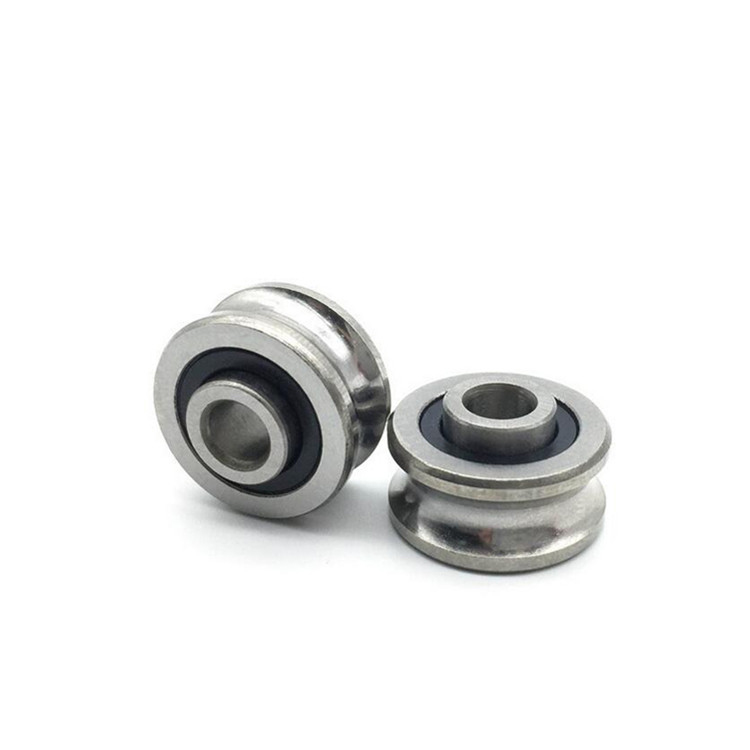

SG25 U Groove Ball Track Guide Bearings

8*30*14mm SG25 bearings are produce with Chrome steel Gcr15 ,we can provide sample before order .

item no.:
SG25
lead time:
7 days
product orgin:
China ,Shanghai
shipping port:
NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
MOQ:
100

products details

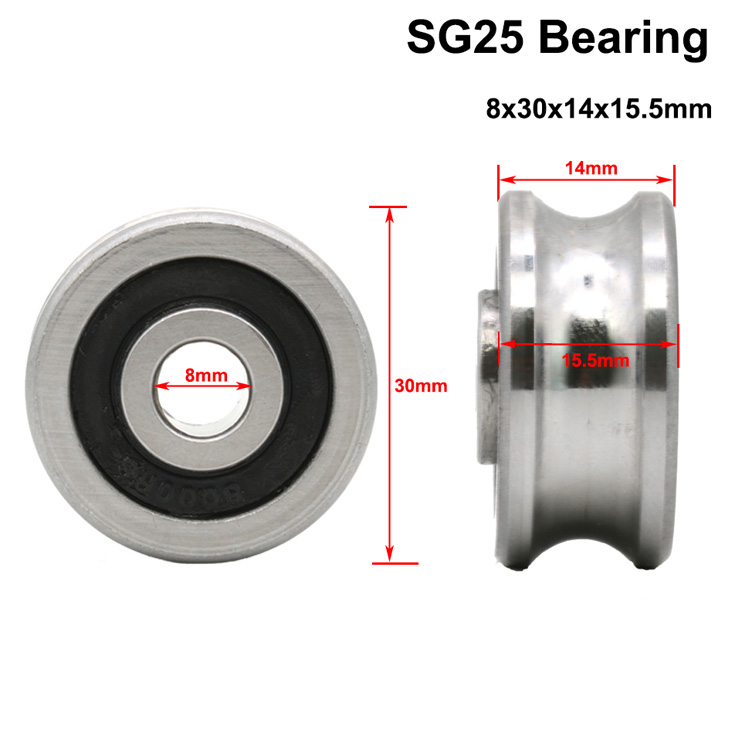

SG25 Embroidery Machine Bearing Specification :

SG25 bearing dimension :

Inner diameter :8mm

Outer diameter :30mm

Height :14mm

Material : Chrome steel Gcr15

Application : embroidery machine

For closure type,we have metal shield (zz) and rubber seal (RS ),you can choose what you need .

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation Suffix RS/RS) - Made of sheet steel reinforced NBR (oil- and liquid-resistant). Lower limit speed ，have good sealing performance.

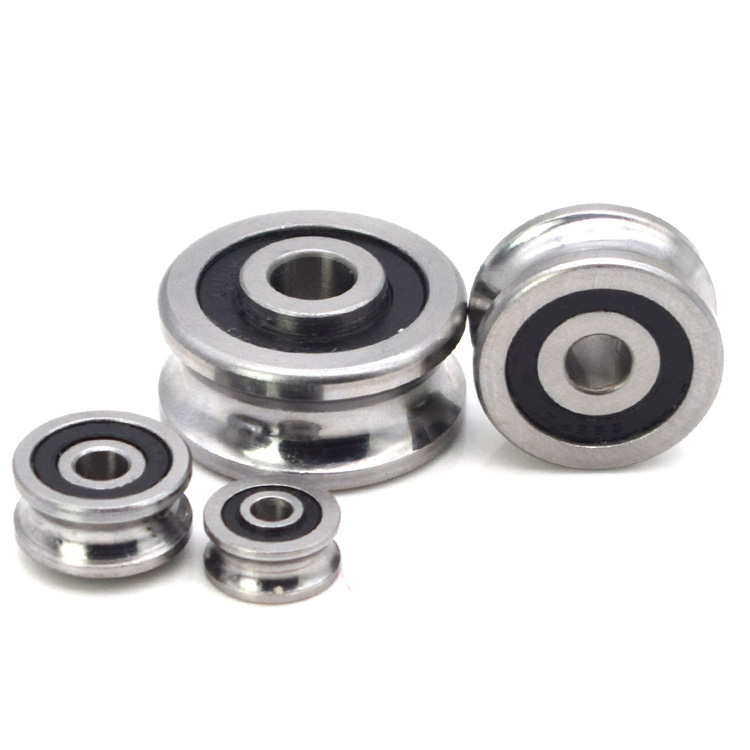

We can Produce other SG Track Roller Bearings :

These bearings asre suitable for linear motion track rollers, and they can suit to the cylindrical track.

Various structure: WV,LV,V,LFR,LR,W Series
Sealed type: Z, ZZ, RS, 2RS, 2RS1, NPP, KDD, P, PP, N, NR
Material: GCr15,100Cr6,Chrome Steel,steel ,stainless steel

SG LINE TRACK ROLLERS
Bearing No.	Dimension (mm)								Balls Numbers	Mass(g)
Bearing No.	dw	Bore	O.D.	Width	Width	L	D2	H	Balls Numbers	Mass(g)
SG10	5	4	13	6	3.5*2	16.08	5.9		14	7

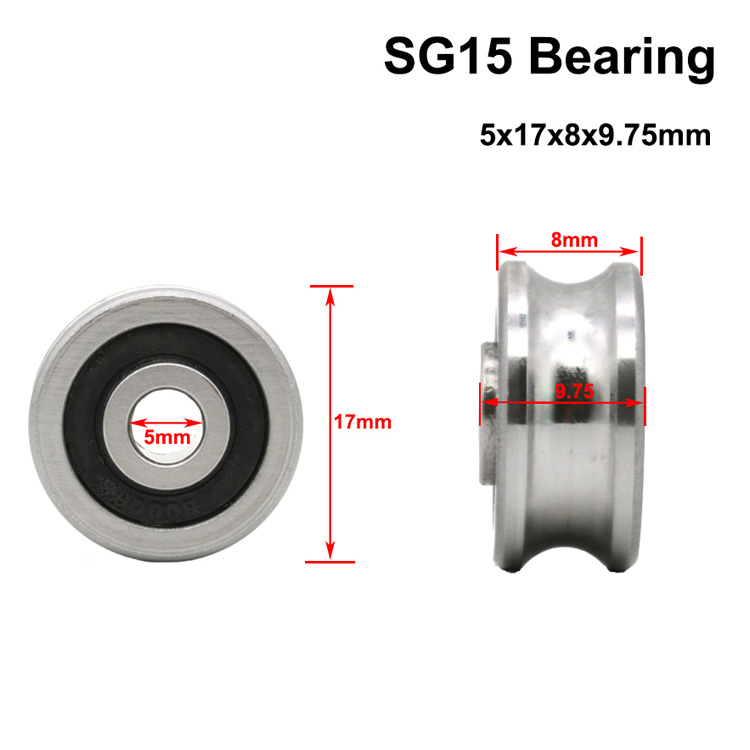

SG15	6	5	17	8	5.75	20.46	8.6	0.5	18	8
SG15-10	10	5	17	8	5.75	25.5	8.6	1.2	18	9
SG15-1	7	5	17	8	5.75	20.46	8.6	1.5	18	10
SG20	8	6	24	11	7.25	28.62	11.1	0.7	14	25
SG20-1	9	6	24	11	7.25	28.62	11.1	0.5	14	25
SG25	10	8	30	14	8.5	35.77	13	0.7	14	49
SG25-1	5	8	27.6	14	10	30.77	13	1	14	50
SG35	12	12	42	19	12.5	48.93	18	1	14	136
