30YM1/48Y1 Tapered Roller Motorcycle Bearings

30YM1/48Y1 Steering Head Bearing with dimension 30*48*12 mmcan be used For Column Izh Jupiter Izh Planeta,we have bearings in stock now ,can provide with short delivery time.

item no.:
30YM1/48Y1
lead time:
7 days
product orgin:
China
shipping port:
NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
MOQ:
100

products details

Bearing Specs:

No.: 38YM1/48Y1

Type: Taper Roller Bearing

Application :For motorcycle

Lubrication: Need Grease

Dimensions: 30 x 48 x 12 mm

ID (inner diameter)/Bore: 30 mm

OD (outer diameter): 48 mm

Width/Height/thickness: 12 mm

Weight: 77 g

Dynamic load :23500N
Static load :21200N

38YM1/48Y1 bearing

30YM1/48Y1 Bearing Can For Motorcycle Steering-Head

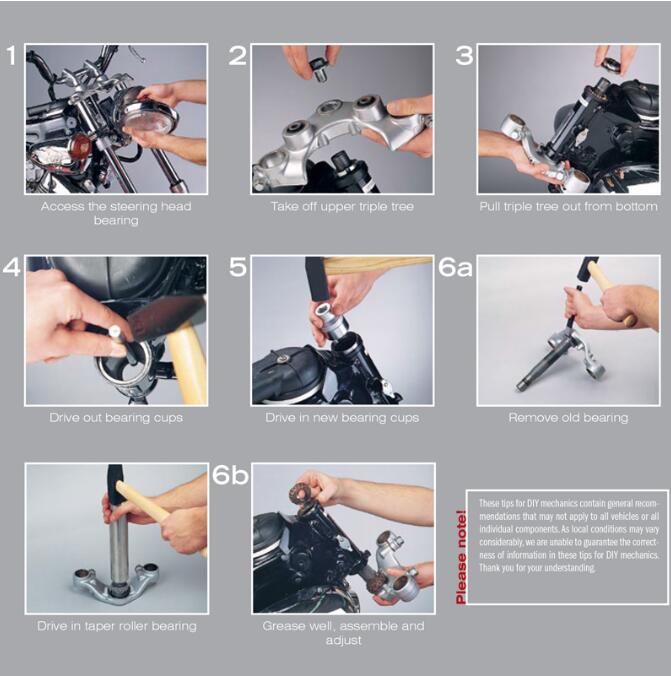

How to replace your Motorcycle Steering-Head?

1.Access the steering head bearing
2.Take off upper trpie tree
3.Pull triple tree out from bottom
4.Drive out bearing cups
5.Drive in new bearing cups
6.Remove old bearing
7.Drive in taper roller bearing
8.Grease well,assemble and adjust

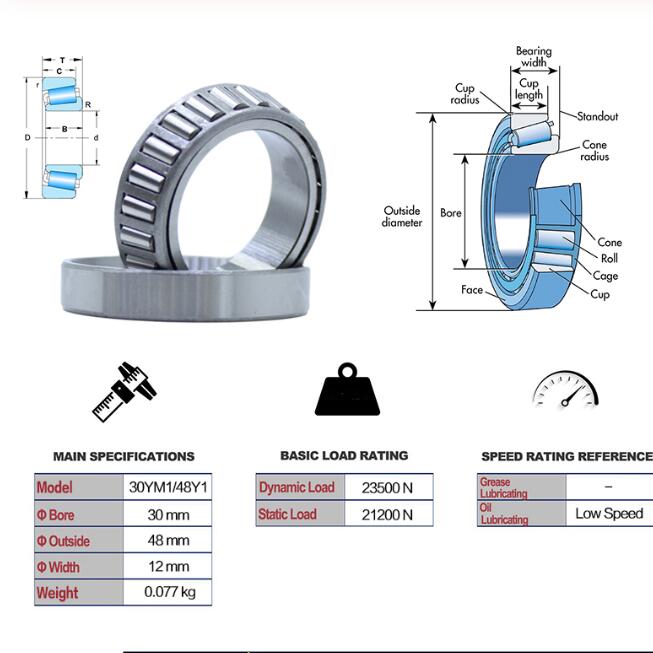

The structure of taple roller bearing :

taper roller bearing struture

We can prodive different type of taper roller bearings ,if you are interested ,pls feel free to contact with me ,here are some KOYO bearing number for your reference:

Bearing No.	Boundary dimensions(mm)
	d	D	T	B
323/32R	32	75	29.75	28
32907JR-2	35	55	14	14
32007JR	35	62	18	18
33007JR	35	62	21	21
30207CR	35	72	18.25	17
30207JR	35	72	18.25	17
32207-1R	35	72	24.25	23
32207JR	35	72	24.25	23
33207JR	35	72	28	28
30307DJR	35	80	22.75	21
30307XR	35	80	22.75	21
30307JR-1	35	80	22.75	21
TR0708-1R	35	80	32.75	31
32307JR	35	80	32.75	31
32908JR	40	62	15	15
32008JR	40	68	19	19
33008JR	40	68	22	22

Taper roller bearing have widely application:

For more bearings ,pls contact with us free at info@bearings-factory.com
