608Z Extended Inner Ring Bearing

8*22*7*9mm 608zz extended race bearing with build in space,we are produce with Chrome steel ,free sample can be provide before order .

item no.:
608
lead time:
20 days
product orgin:
China ,Shanghai
shipping port:
NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
MOQ:
5000

products details

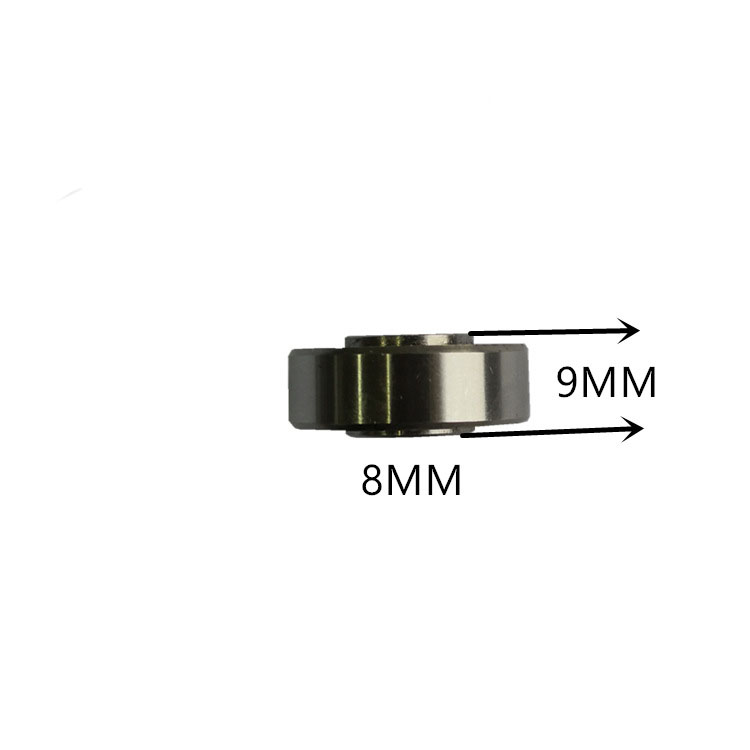

608 Extended Bearing 8*22*7*9 mm Specification :

Material :Chrome steel ,we also can produce accoring to your requirements such as produce with stainless steel or carbon steel .

Dimension :

Inner diameter :8mm

Outer diameter :22mm

Outer ring height :7mm

Total height :9mm

Each side with 1mm Protruding Heightening the inner ring

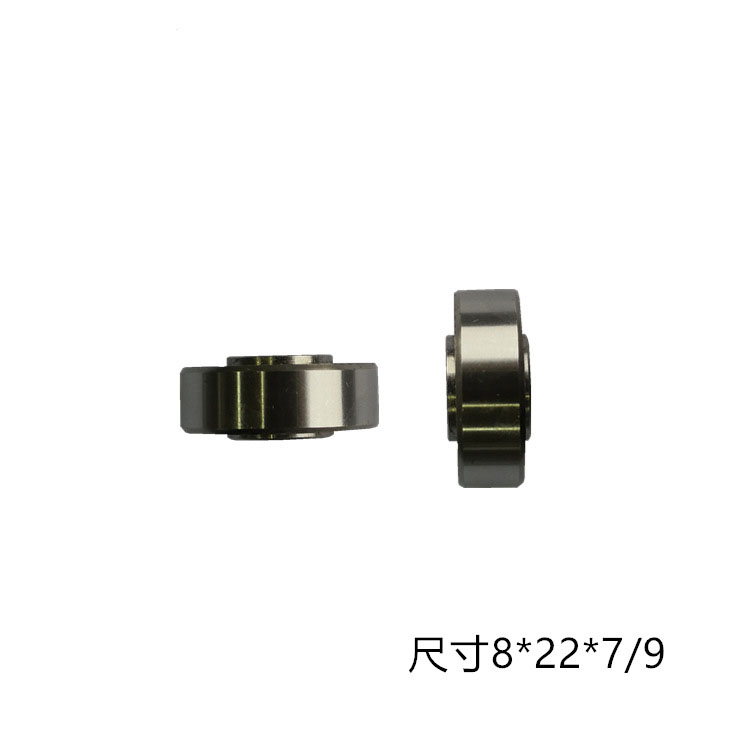

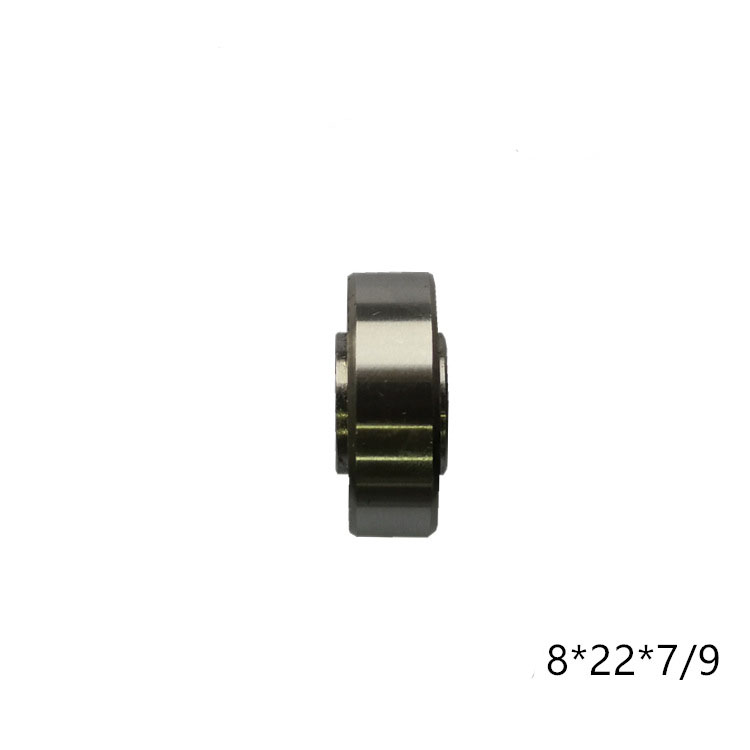

8*22*7*9mm 608z Non-standard Bearings Pictures :

We can Produce Other Different 608 Non-standard Bearings:

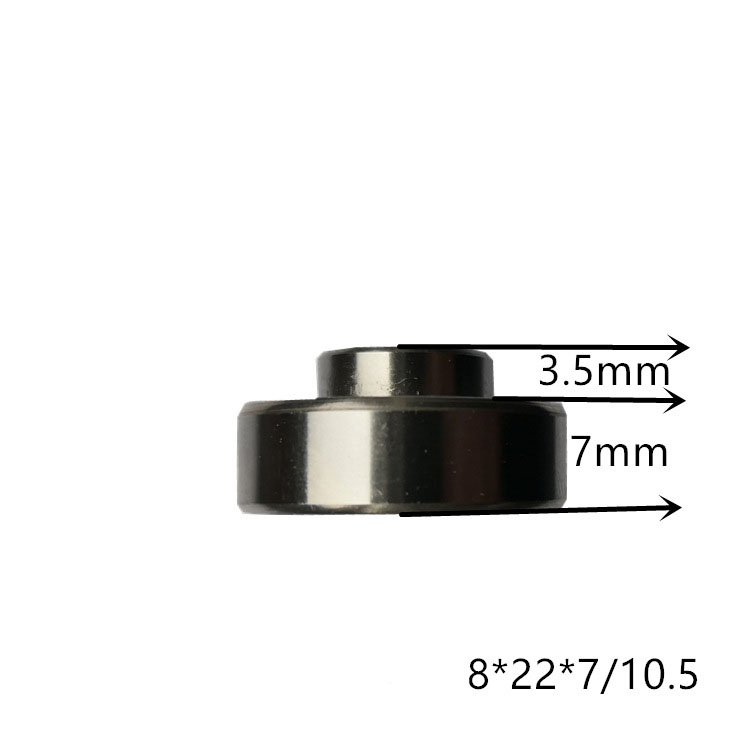

Bearing No.:608z

Dimension :8*22*7*13.5mm

Material :Chrome steel Gcr15

One side inner ring with protruding heightening3.5mm

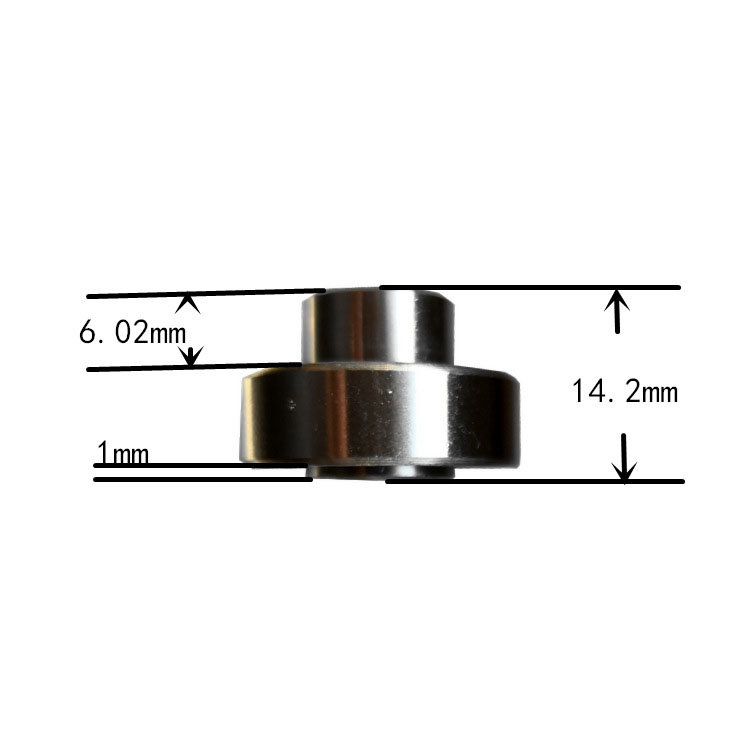

Bearing No.:608z

Dimension :8*22*7*14.2mm

Material :Chrome steel Gcr15

One side inner ring with protruding heightening1 mm,another side extend with 6.02 mm

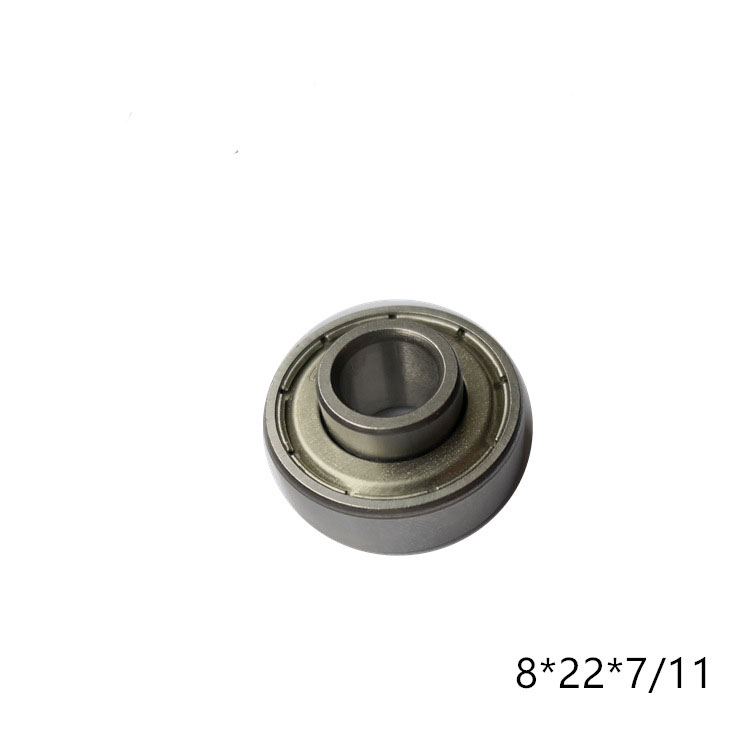

Bearing No.:608z
Dimension :8*22*7*11mm
Material :Chrome steel Gcr15
One side inner ring with protruding heightening 4 mm

For bearings R8, 6901, 608, 698, we have produced many different non-standard dimension, the product quality is stable, and can suitable for all kinds of high-end luggage, pulleys, toys, etc.
