High Temperature Bearing
home

High Temperature Bearing

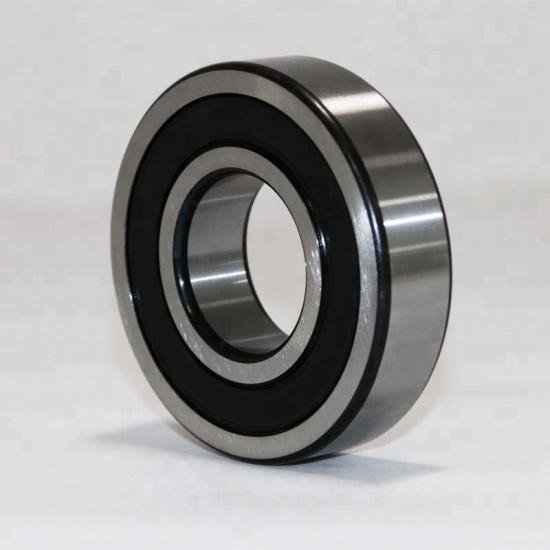

6203 High Temperature Bearing 250 Degree

new products

6203 High Temperature Bearing 250 Degree

6203 high temperature bearings mainly refer to the common bearing structure, using high temperature resistant materials, such as high temperature grease; and the bearing clearance is much larger than ordinary bearings , so it is usually not suitable for high speed operation, it is a high temperature low speed bearing. High temperature bearings are widely used in high temperature operation machinery such as metallurgy, kiln, glass, blast furnace, painting equipment.

  • item no.:

    6203
  • product orgin:

    China ,Shanghai
  • shipping port:

    Ningbo ,Shanghai,Guanzhou
  • MOQ:

    1
products details

High Temperature Bearing Introduction :

High temp bearings are bearings produce with high temp. material such as packed with high temparature grease , or the rubber seal material is made by FFKM.

We can produce high temp bearing working at different temperature such as 150 ,200,250 ,300 ,360 degree ,for details bearing specification ,you can contact with me free .


 Bearing 6203 For 250 Degree Sepcification :


1) We can mark bearing number or your company logo on bearing rings or seals .

2) We offer produce with Radial Clearance C4 or larger clearance

3) The bearing gease we packed is TRIBOLUBE-57

4) The Seals material is with FFKM material  rubber seals

5) Bearing packing can be as your requirements, we can do color box as your requirements.

6) And we are assembled with rivet cage

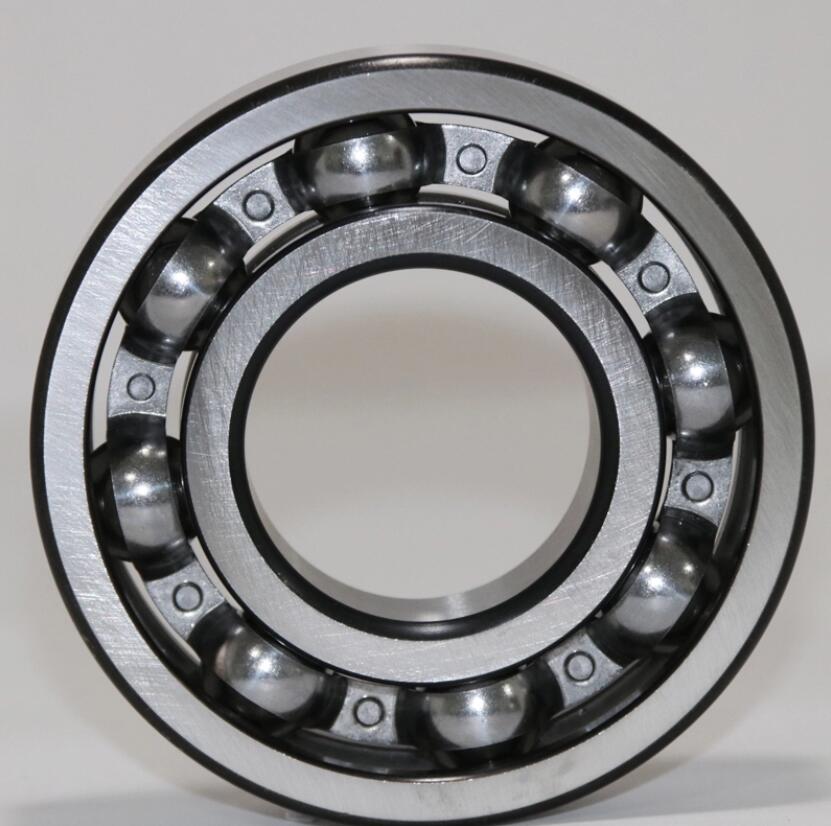

high temp ball bearing


We also do produce with 150 degree bearing ,200 degree bearing,300 degree bearing or higher temp,below here is some bearing specification for your reference :

150°C High Temp Bearing Specification:

1) Bearing material :Chrome steel Gcr15

2)NBR rubber seals,color can be produce as your requirements

3) Bearing Radial Clearance:C4

4)Bearing Grease:150°C high temperature grease Chevron SRI-2,we can we packed grease as your requirements

5) With V-groove ring ,can have a better protect for grease leak.

6) Bearing packing: opp bag /color box .

7)OEM service

Ball Bearing can working at 200°C Specification:
1)Bearing Material: Chrome steel Gcr15
2)Bearing Radial Clearance :C4
3)Bearing Grease:200°C high tempeture bearing POLYREX EM

4) Can be with metal shield or rubber seals

5) With V-groove ring ,can have a better protect for grease leak.

6) Bearing packing: opp bag /color box .

7)OEM service


We also can be more higher temperature bearing with full ceramic,these bearing can work at temperature at  1200 ° C such as 608 high temp bearing with full ceramic ZRo2 .


HIGH TEMP 608 BEARING

How To Choose High Temperature Bearing Grease :


The choice of high temperature bearing grease should be selected according to the working temperature conditions,how many degree bearing need to work ,so it must be high temperature and oxidation resistant grease. Moreover, a large amount of coke deposits cannot be caused to cause the bearing to be stuck.


There are many brands that choose high-temperature bearing grease brands, such as Klüber in foreign countries, synergy; the Great Wall of China, Fürth and so on.

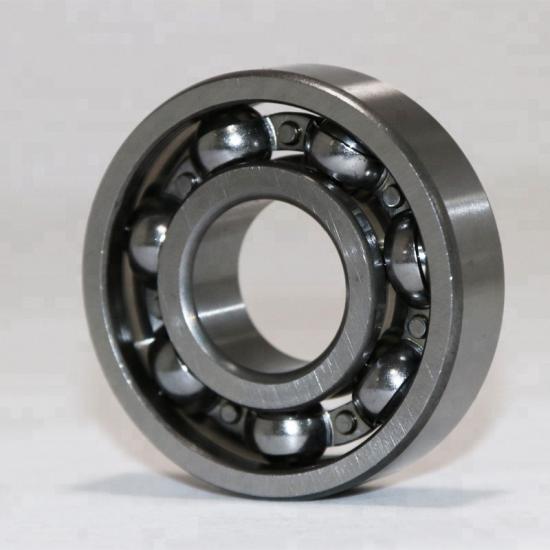

We also can produce with open bearing and you can add grease or do further bearing treatment yourself.

And we can produce high temparature pillow block beaing ,insert bearing ,for more bearings ,pls contact with us .
