15*24*5mm 6802 bearings are produce with Chrome steel Gcr15 .
item no.:
6802lead time:
7 daysproduct orgin:
Chinashipping port:
NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAIMOQ:

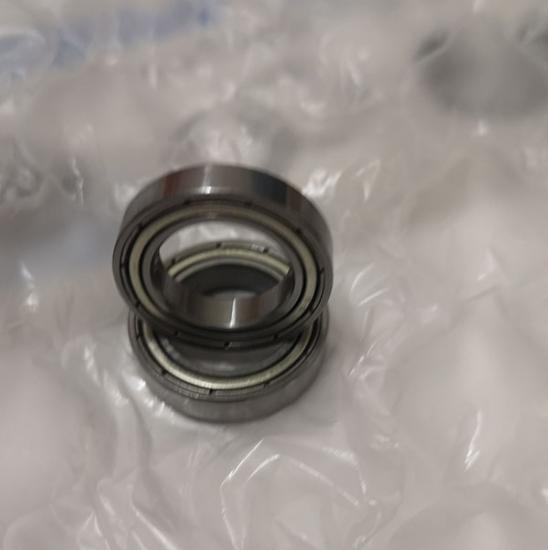

100Thin Section Bearing Deep Groove Ball Bearing 6802ZZ 6802RS Specification :

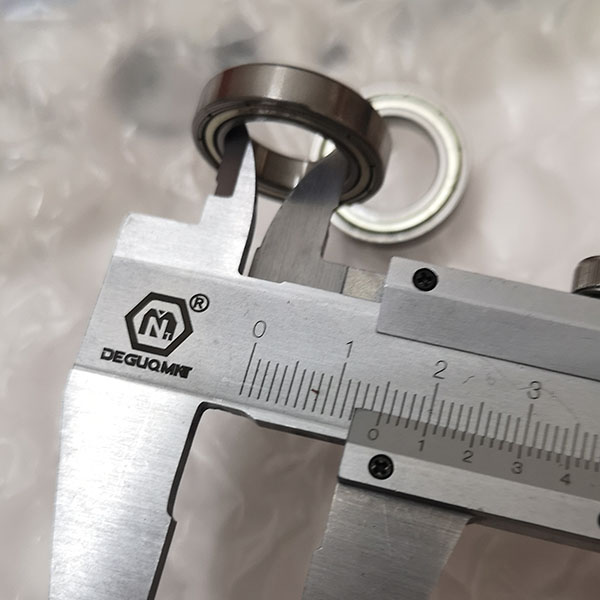

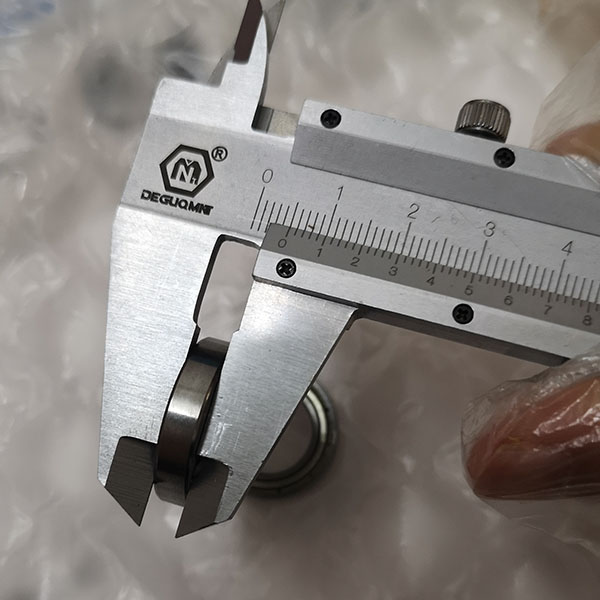

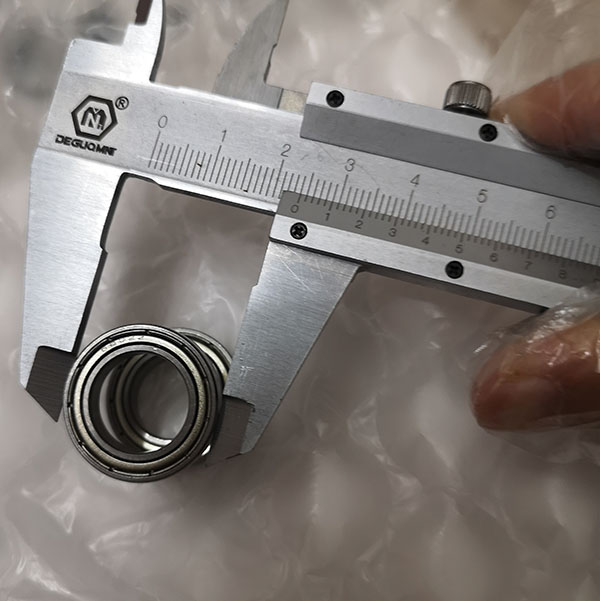

6802 Bearing Size:
inner diameter:15mm
outer diameter:24mm
height :5mm
Bearing number:6802-2RS, 6802 2RS, 6802 RS, 6802RS, 6802-ZZ, 6802 ZZ, 6802ZZ, 6802 Z
|
|
|
6800 Series Thin Wall Bearing Catalogue :
N0.
|
Bore |
O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
mm |
mm | mm | mm |
Dynamic Cr |
Static Cor |
Grease r/min |
Oil r/min |
Kg/pcs | |
685 |
5 |
11 | 3 | 0.15 |
0.715 |
0.282 |
35000 |
45000 |
0.0011 |
686 | 6 | 13 | 3.5 | 0.15 | 1.08 | 0.44 | 33000 | 42000 | 0.0019 |
687 | 7 | 14 | 3.5 | 0.15 | 1.17 | 0.505 | 31000 | 40000 | 0.0021 |
688 | 8 | 16 | 4 | 0.2 | 1.61 | 0.715 | 29000 | 38000 | 0.0031 |
689 | 9 | 17 | 4 | 0.2 | 1.72 | 0.82 | 28000 | 36000 | 0.0032 |
6800 | 10 | 19 | 5 | 0.3 | 1.83 | 0.925 | 26000 | 34000 | 0.005 |
6801 | 12 | 21 | 5 | 0.3 | 1.92 | 1.04 | 22000 | 30000 | 0.006 |
6802 | 15 | 24 | 5 | 0.3 | 2.08 | 1.26 | 20000 | 28000 | 0.007 |
6803 | 17 | 26 | 5 | 0.3 | 2.23 | 1.46 | 19000 | 26000 | 0.008 |
6804 | 20 | 32 | 7 | 0.3 | 4 | 2.47 | 17000 | 22000 | 0.019 |
6805 | 25 | 37 | 7 | 0.3 | 4.3 | 2.95 | 15000 | 19000 | 0.022 |
6806 | 30 | 42 | 7 | 0.3 | 4.7 | 3.65 | 13000 | 17000 | 0.026 |
6807 | 35 | 47 | 7 | 0.3 | 4.9 | 4.05 | 11000 | 15000 | 0.029 |

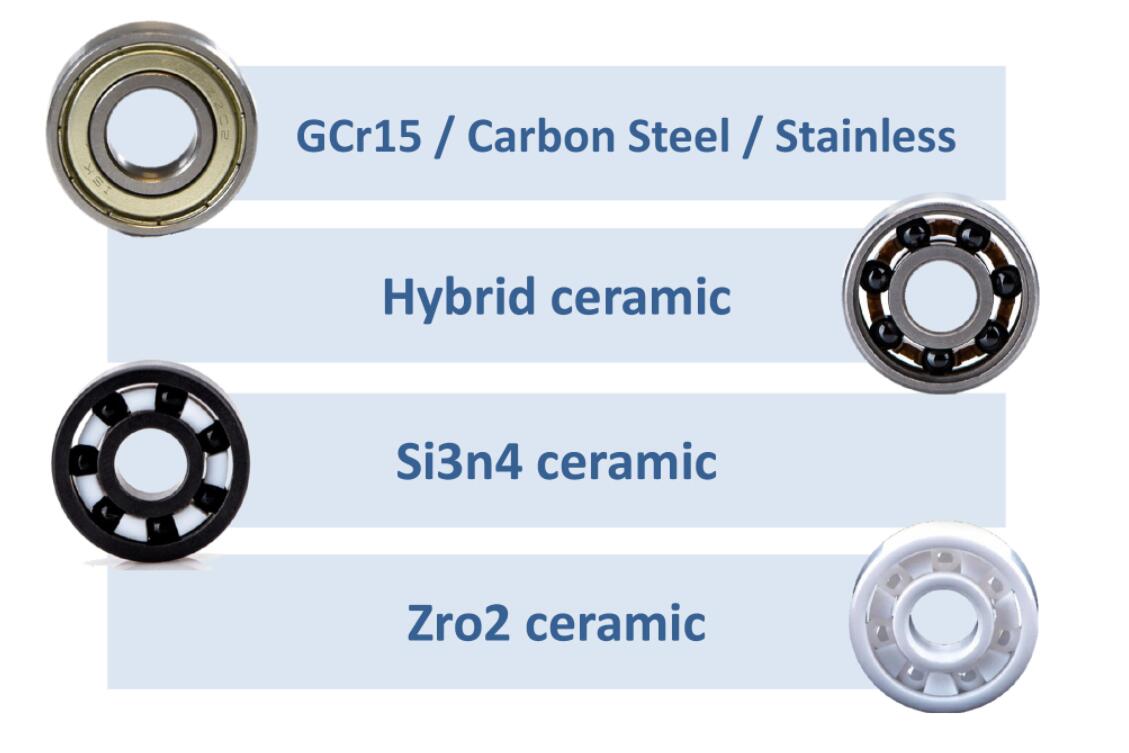

For Bearing Material We Can Produce With :
Chrome steel Gcr15 ,carbon steel ,stainless steel ,ceramic ,plastic
We also can produce 6802 ceramic bearing

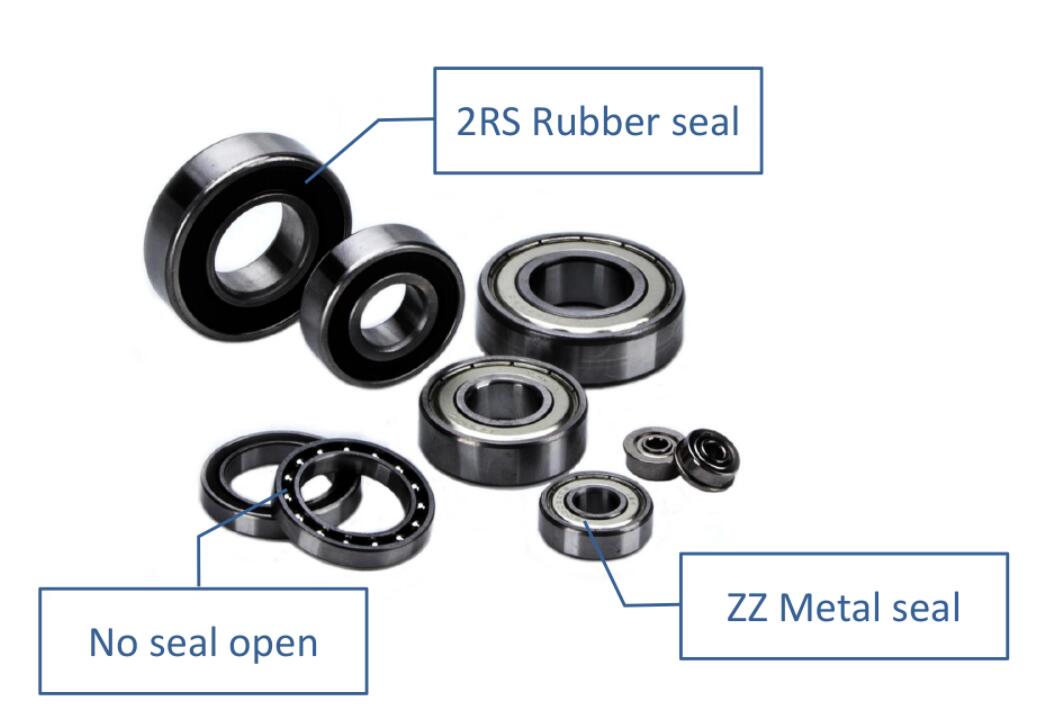

We can produce 6802 bearing with rubber seal ,metal shield ,or open 6802ZZ ,6802 RS

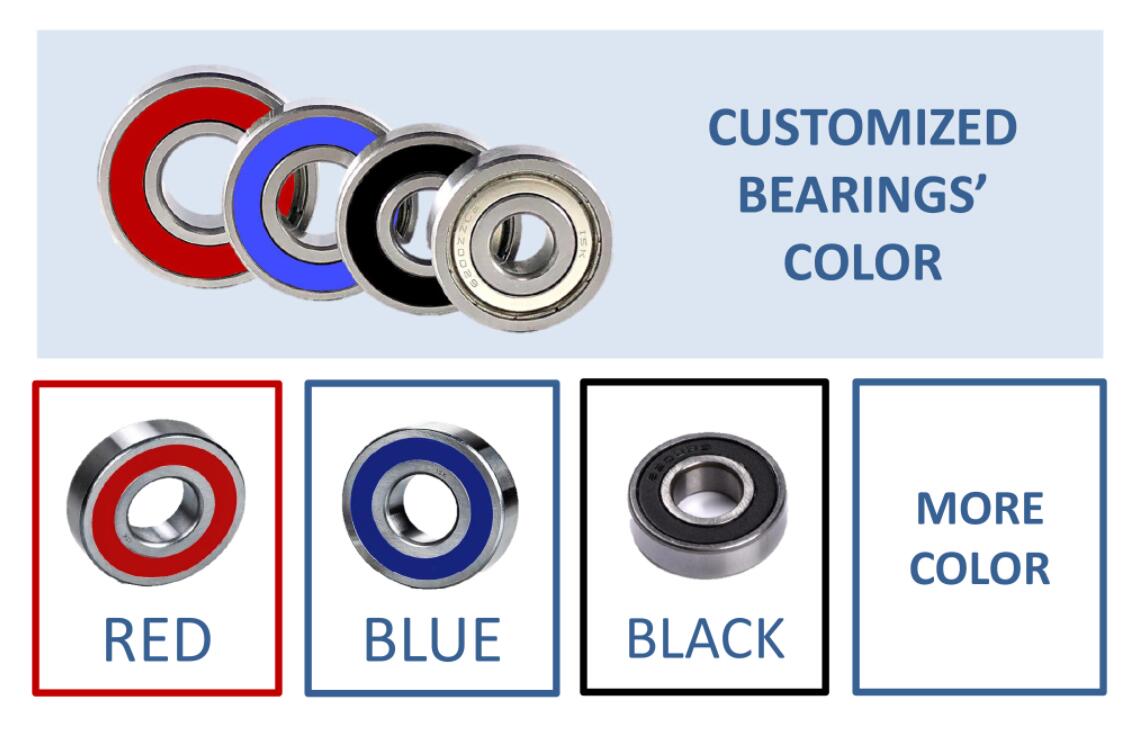

For 6082 2RS bearing rubber seal ,we can produce with red seal ,black seal ,blue seal

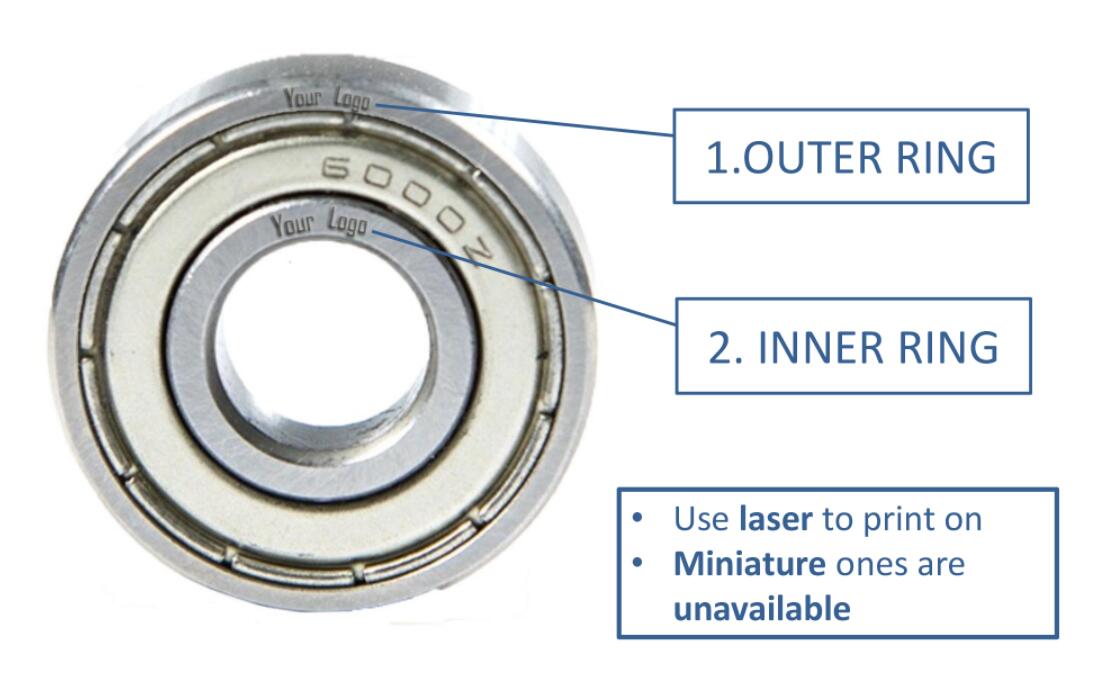

ZZ BEARING also can do OEM service ,we can put your logo on bearings
6802 Thin Section Bearing Application :

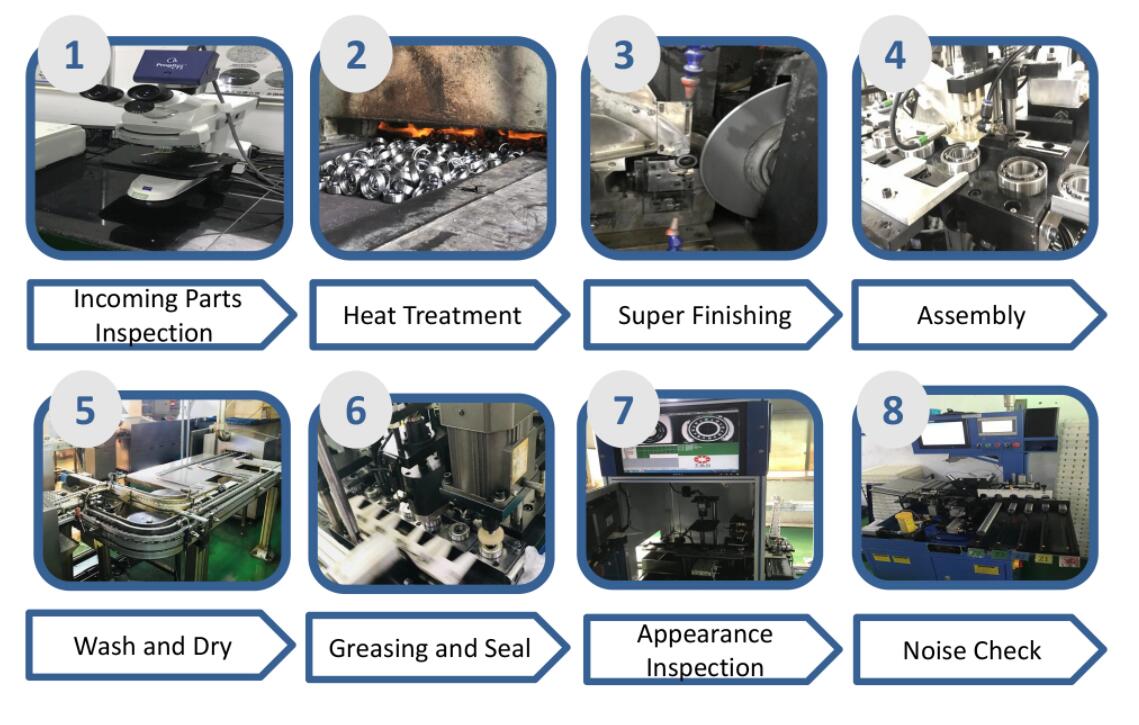

ZZ BEARINGS Production Process :
FAQ:
Q1: Is it ok to mark my own brand on your bearing in small quantity?
A: Yes, we can engrave your own brand on the rings of bearing or, we can open the cover mold of your own brand name.
Q2: Does your company accept the small quantity of orders?
A: Once your bearing is standard size bearing, we accept the small quantity even in 1pc.
Q3: Can I get the free sample?
A: Yes, the sample is free, but the freight cost has to be paid by you.
Q4: If I don’t see the type of bearing I need, what should I do?
A: We have too many bearing series number. Sometimes, we are unable to put them all on the Alibaba. Just send the inquiry to us, and we’ll send you the detail of your bearing.
ZZ BEARING can produce bearing’s value is more cost-effective for you.
