6000 Series Ball Bearing

new products

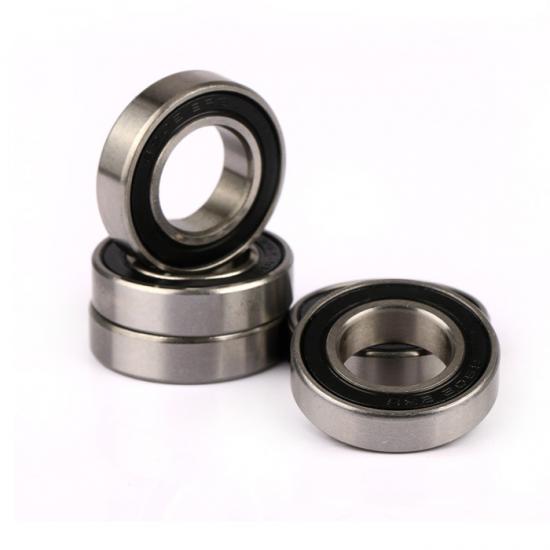

6904-2RS Thin Section Bearings

20*37*8mm 6904-2RS 6904-ZZ ball bearing are produce with Chrome steel Gcr15 ,this bearing can used for electric motor.

  • item no.:

    6904
  • lead time:

    7- days
  • product orgin:

    China
  • shipping port:

    Shanghai,Ningbo,Guangzhou,Qingdao
  • payment:

    30% TT in advance ,TT 70% pay when finish pro
  • price:

    $0.2/1000
  • market price:

    $0.2
  • price range:

    5000-10000/0.18$
  • MOQ:

    100
products details


6904-2RS 6904-ZZ Radial Ball Bearing Description :


Bearing No.: 6904-2RS, 6904 2RS, 6904 RS, 6904RS, 6904-ZZ, 6904 ZZ, 6904ZZ, 6904 Z

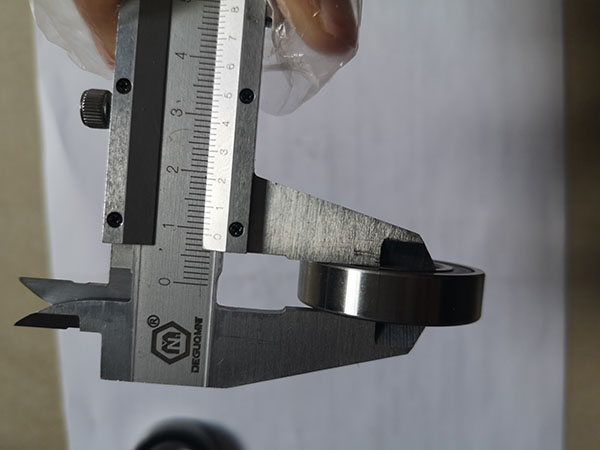

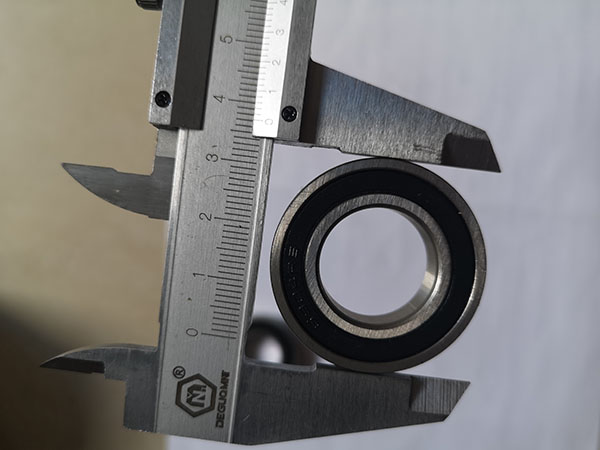

Diemnsion :

Inner diameter:20mm

Outer diameter :37mm

Width :9mm


Material :

Outer ring :Chrome steel Gcr15

Inner ring :Chrome steel Gcr15

Balls :Chrome steel Gcr15

Cage :Chrome steel Gcr15




Dynamic load rating Cr: 6,350 N

Static load rating Cor: 3,700 N

Limiting Speed: 12,000 RPM

Bearing Marking: 6904 RS


6904 bearing
6904-2RS Sealed Ball Bearing
