Agricultural Machinery Bearing
home

Agricultural Machinery Bearing

GW315PPB11 Round Bore Agriculture Bearing

new products

GW315PPB11 Round Bore Agriculture Bearing

70 mm Bore, 160 mm OD, 68.3 mm Width,GW315PPB11 bearing are with round bore ,and the material are with Chrome steel ,we can provide sample for you to test before order .

  • item no.:

    GW315PPB11
  • lead time:

    3-7 DAYS
  • product orgin:

    China ,Shanghai
  • shipping port:

    NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
  • MOQ:

    500
products details


GW315PPB11 Agricultural Machinery Bearing Specification :



Dimension :

Inner diameter : 70mm

Outer diameter :160mm

Width : 68.26mm

Material : Chrome steel Gcr15

Bore type : Round

Precision Rating:-ABEC 1

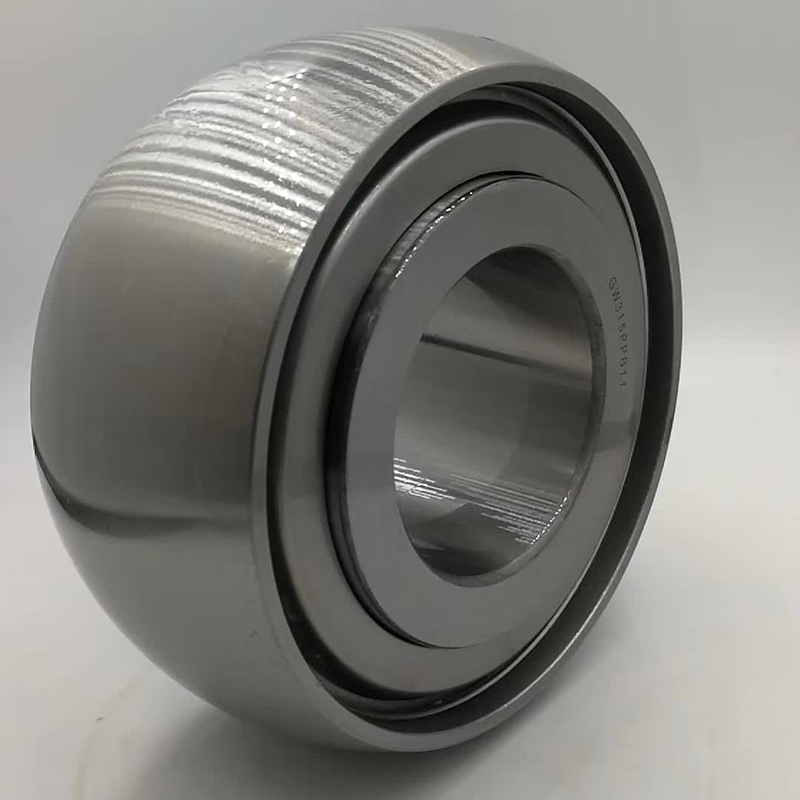

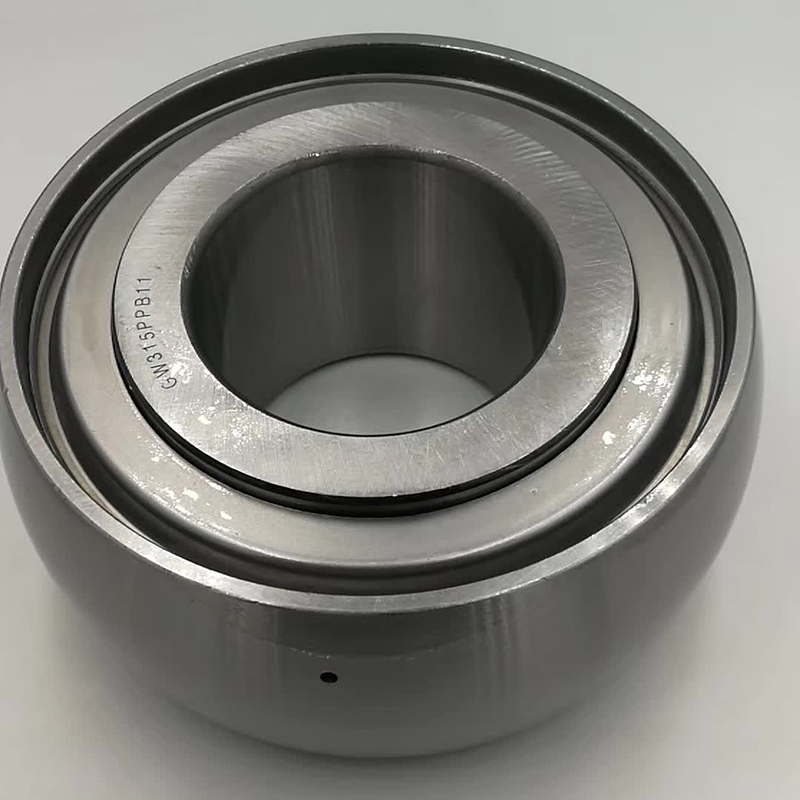

GW315PPB11 bearing
GW315PPB11 round bore bearing


GW315PPB11 Bearing Application :

such as for tractors, farm equipment, planters, mowers, rakes and more.


We can produe other Round Bore Bearing for you:

Bearing No. Inner diameter (mm) Outer diameter (mm) Height (mm) Total Height (mm)
GW209PPB2 45 85 30.175 30.175
GW209PPB4 39 85 30.175 30.175
GW209PPB11 45.237 85 22 36.525
GW210PPB2 49.225 90 90.175 30.175
GW210PPB5 45.339 90 23 30.175
GW210PP9 49.403 90 33.325 36.525
GW211PP2 55.575 100 33.325 33.325
GW211PPB2 55.575 100 25 33.325
GW211PPB8 55.575 100 25 33.325
GW211PPB9 55.753 100 25 39.675
GW211PPB10 49.225 100 33.325 33.325
GW211PPB13 45.339 100 25 33.325
GW211PPB14 51.181 100 25 33.325
GW211PP25 45.212 100 33.325 44.45
GW214PP2 70 125 39.675 39.675
GW214PPB2 70 125 39.675 39.675
GW214PPB3 49.225 125 39.675 39.675
GW214PPB5 70 125 39.675 61.925
GW214PPB6 68.278 125 28 68.263
GW315PPB11 70 160 68.26 68.26
