INA Agricultural Machinery Bearings GE45-XL-KRR-B

Bearing GE45-XL-KRR-B with size 45*155*56.5 mm are produce with Chorme steel GCR15 ,this bearing often matched with a bearing housing ,the new bearing unit is Pillow Block RME45-XL .

item no.:
GE45-XL-KRR-B
lead time:
7 days
brand:
INA
shipping port:
Guangzhou
MOQ:
100

products details

INA Radial insert ball bearings GE45-XL-KRR-B:

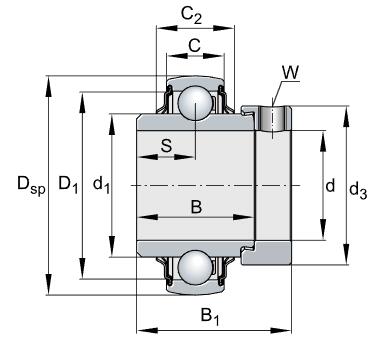

GE45-XL-KRR-B Bearing Specification :

Bearing No.	GE45-XL-KRR-B
inner size d	45 mm
Outer size DSP	85 mm
Outer ring Bore B1	56,5 mm
Iner ring Bore B	42,9 mm
C	22 mm
C2	26,4 mm
Ca	6,4 mm
D1	72,3 mm
d1	57,9 mm
d3 max	63 mm
S	21,4 mm
W	5 mm
m	0,83 kg
Cr	34500 N
C0r	20400 N

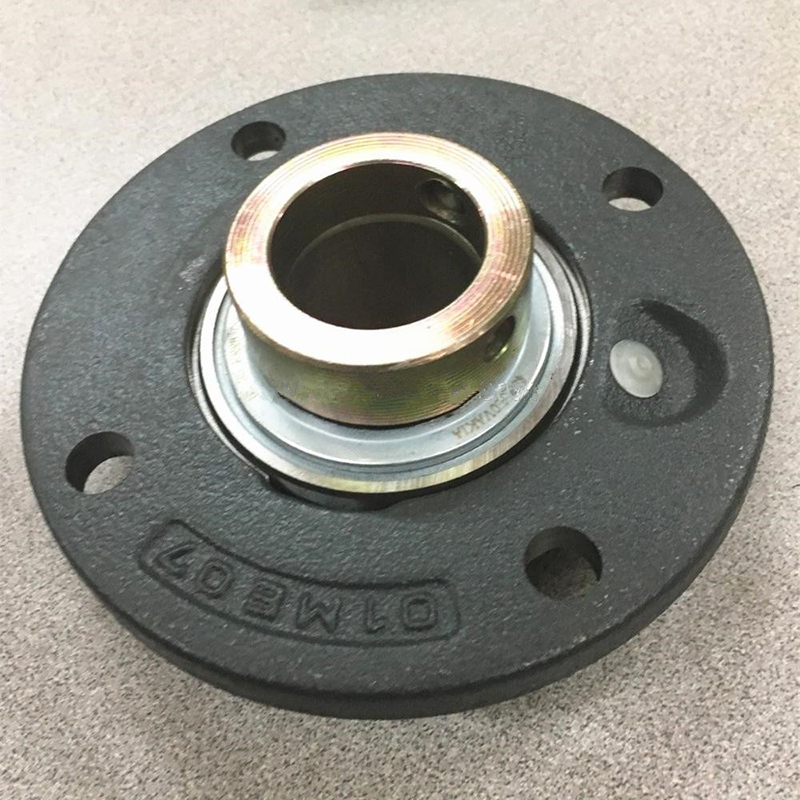

Housing units have different type such as plummer block, flanged and take-uphousing units in designs. The units can be matched with cast iron or sheet steel housings in which the radial insert ball bearings are fitted. GE45-XL-KRR-B bearing can be matcher with a bearing housing unit ,the new bearing unit is Pillow Block RME45-XL.

INA BEARING UNIT

We Can Provide Other INA Series Bearing Such As GE**, CNE**, CRAE**,

GRAE25-XL-NPP-B,GNE25-XL-KRR-B,GE25-XL-KRR-B

GRAE40-NPP-B,RAE40-NPP-B,E-40-KRR-B,GE40-KRR-B,GE40-KRR-B-FA164,GE40-KRR-B-FA101,

GNE40-KRR-B,GE40-KTT-B,GE40-KRR-B-2C,GE40-KLL-B,GRAE45-NPP-B,GE45-KRR-B,GE45-KTT-B,GE45-KLL-B

GRAE50-NPP-B,RAE50-NPP-B,GE50-KRR-B,GE50-KRR-B-FA164,GE50-KRR-FA101,GE50-KRR-B

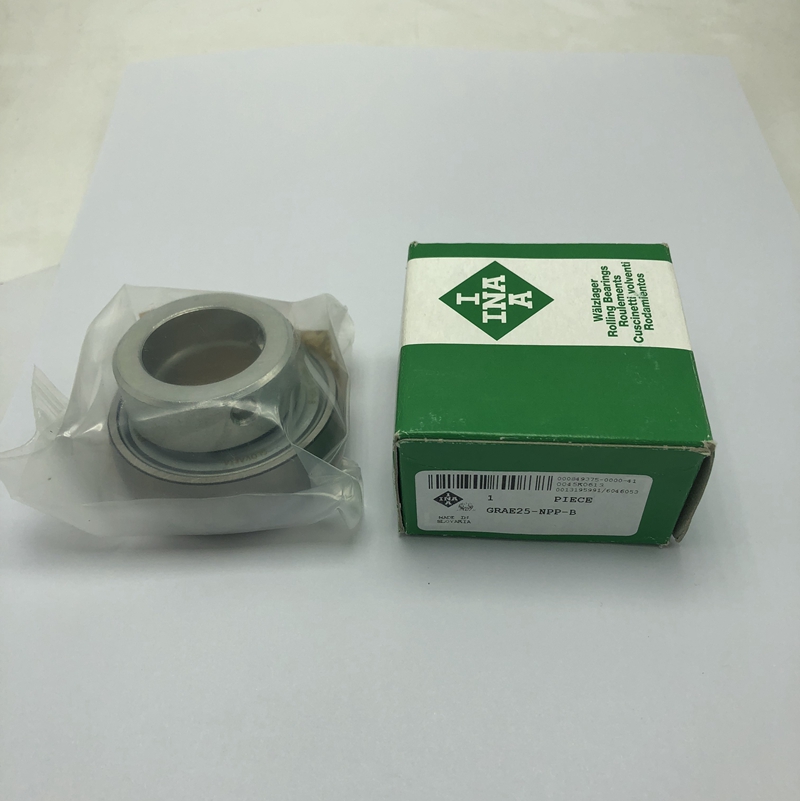

INA Brand Bearing Picture For Your Reference ,For More INA Bearing Number ,Pls Contact With Me Free.

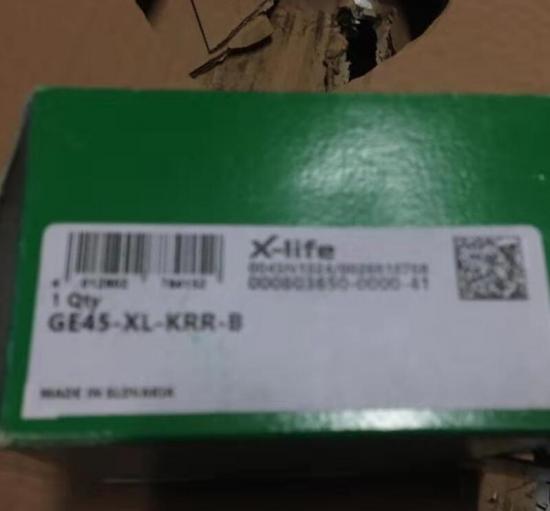

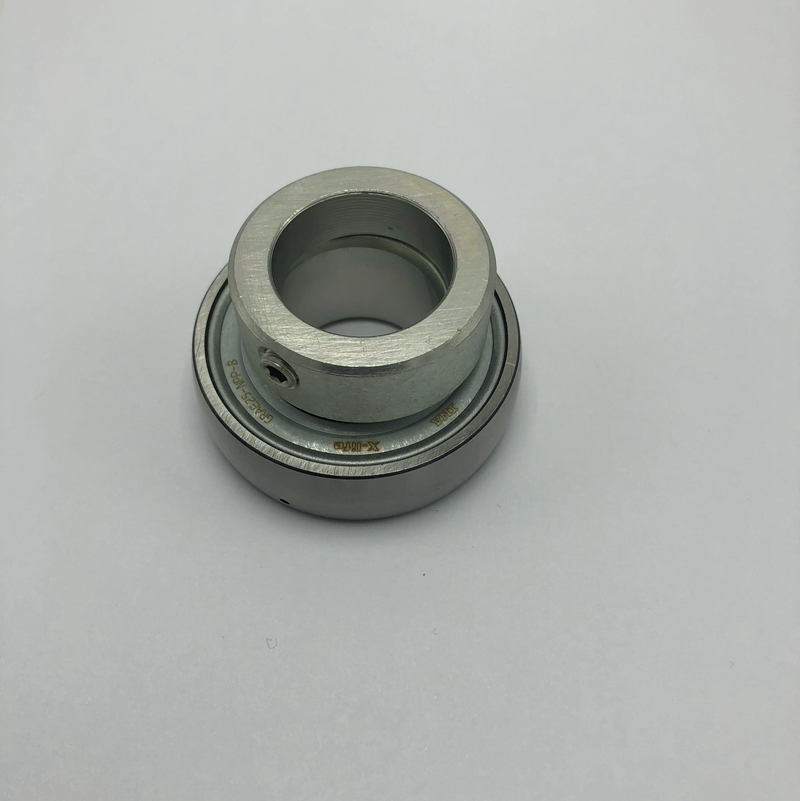

inset ball bearing

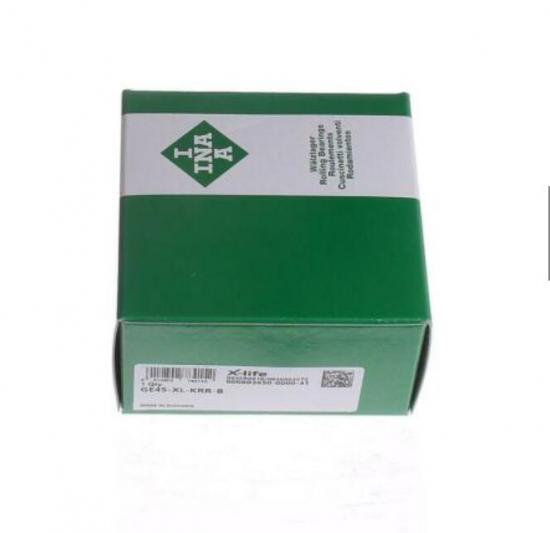

ina bearing packing
