1.We can provide best quality of ina needle roller bearing 2. we can supply different bearing number 3. Free sample available for you 4.Fast delivery time 5.Order now and get 3% discount
item no.:
HK1010lead time:
7 daysbrand:
INAshipping port:
GuangzhouMOQ:
1HK1010 bearing is type of Needle roller bearings are roller bearings ,this roller bearing can have with small in diameter cylindrical rollers, and they are with low cross section,.needle roller bearings have a high load carrying capacity and are therefore extremely suitable for bearing arrangements where radial space is limited.
INA Bearing HK1010 Specification:
Detail size :
Fw: 10mm
D: 14mm
C: 10mm
Basic load ratings:
Dynamic: 4400 N
Static: 5100 N
Limiting speed: 23300
Reference speed: 17400
Part of INA Needle Roller Bearing Number For Your Reference :
|
Bearing Designation |
Boundary Dimensions | ||
| Open end | Fw | D | C |
| Current | mm | ||
| HK0306TN | 3 | 6.5 | 6 |
| HK0408TN | 4 | 8 | 8 |
| HK0509 | 5 | 9 | 9 |
| HK0607 | 6 | 10 | 7 |
| HK0608 | 6 | 10 | 8 |
| HK0609 | 6 | 10 | 9 |
| HK0611 | 6 | 10 | 11 |
| HK06×12×08 | 6 | 12 | 8 |
| HK0709 | 7 | 11 | 9 |
| HK07×12×08 | 7 | 12 | 8 |
| HK07×12×09 | 7 | 12 | 9 |
| HK0808 | 8 | 12 | 8 |
| HK0810 | 8 | 12 | 1 |

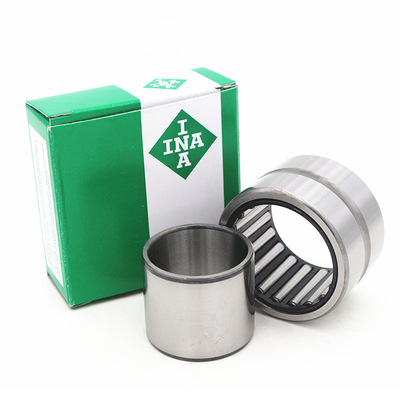

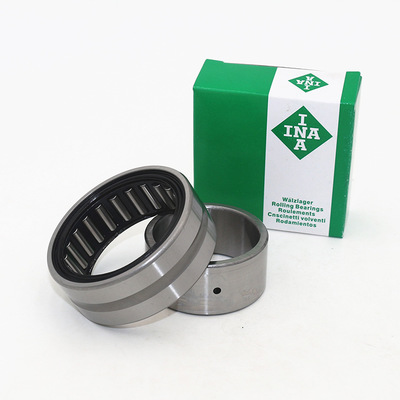

INA Needle Roller Bearing Pictures:
