VW series roller bearing according to difference of seal type can be divided into iron cover seal (no suffix, such as: W2) and rubber cover seal (name of X suffix, such as: W2X) two kinds ,If using stainless steel material, the name will be the words with the SS, such as: W2SSX. RM2 ,W2 bearing with inner size 3/8" are widely use in Textile machine and other area.
item no.:
W2 RM2 RM2ZZ RM2RSMOQ:
1V Groove Bearings Introduction:
Track roller Bearing W (RM, Vw) is the main component of the W-type roller guide system, widely used in industrial robots, cutting equipment, moving rails, production lines and so on.
● The outer ring of the roller is a W-shaped outer surface composed of two 90-degree V-shaped shapes. The inner or outer side can be used separately to fit the 90-degree inner V- or outer V-rail, or the inner side can be fitted to the cylindrical guide.
●The roller adopts the internal structure design of the double row angular contact ball bearing and the thickened outer ring, so the roller has higher bearing capacity.
3/8" RM2-2RS V Groove Bearing Specification :
Bearing NO.: RM2-2RS RM2 RM2ZZ W2ZZ W2 Bearing
Type: V Groove Guide Bearing
Load Rating Dynamic C: 8,260 N
Load Rating Static Co: 2,650 N
Size :9.525*30.73*11.1mm
|
Dimensions (mm) |
|||||
|
d |
D |
A |
C |
A1 |
rs |
|
9.525 = 3/8" |
30.73 |
18.24 |
11.1 |
12.7 |
0.3 |
RM2-2RS V-Groove 3/8" Ball Bearing Features:
1.Operable with either outer or inner V-shape of the W-shaped outer ring and usable for various applications as guide wheel.
2.High precision grade by integral construction of bearing and precision-ground W-shaped outer ring.
3.Tolerant to both radial and axial load with inner construction of double row angular contact type and also resistant to moment load.

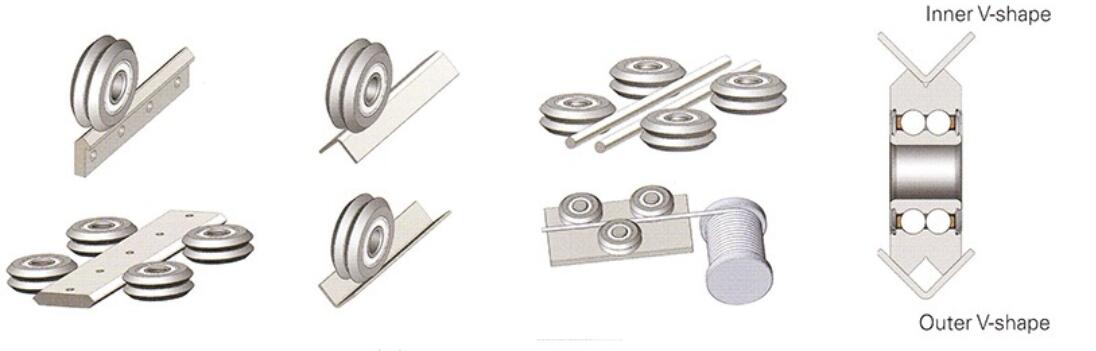

Different Illustration Ways to Use RM2 Bearings:
We Can Produce Other Type V Groove Ball Bearing:
| Bearing No. | A1 | A2 | Chamfer r/min | Weight | ||||||
| Bore | O.D. | Width | mm | Load | ||||||
| mm | mm | mm | ||||||||
| D1 | D | B | A1 | A2 | R/min | Cw(KN) | Cow(KN) | Kg | ||
| W1 | 4.763 | 19.56 | 7.87 | 7.9. | 11.86 | 0.3 | 2.2 | 1 | 11 | |
| W1X | 4.763 | 19.56 | 7.87 | 7.93 | 11.86 | 0.3 | 2.2 | 1 | 11 | |
| W2 | 9.525 | 30.73 | 11.1 | 12.7 | 18.24 | 0.3 | 4.9 | 2.5 | 38 | |
| W2X | 9.525 | 30.73 | 11.1 | 12.7 | 18.24 | 0.3 | 4.9 | 2.5 | 38 | |
| W3 | 12 | 45.72 | 15.88 | 19.05 | 26.98 | 0.6 | 9.4 | 4.9 | 130 | |
| W3X | 12 | 45.72 | 15.88 | 19.05 | 26.98 | 0.6 | 9.4 | 4.9 | 130 | |
| W4 | 15 | 59.94 | 19.05 | 25.4 | 34.93 | 1 | 14.8 | 8.2 | 280 | |
| W4X | 15 | 59.94 | 19.05 | 25.4 | 34.93 | 1 | 14.8 | 8.2 | 280 | |
| RM1ZZ | 4.763 | 19.56 | 7.87 | 7.9. | 11.86 | 0.3 | 2.2 | 1 | 11 | |
| RM1 2RS | 4.763 | 19.56 | 7.87 | 7.93 | 11.86 | 0.3 | 2.2 | 1 | 11 | |
| RM2ZZ | 9.525 | 30.73 | 11.1 | 12.7 | 18.24 | 0.3 | 4.9 | 2.5 | 38 | |
| RM2 2RS | 9.525 | 30.73 | 11.1 | 12.7 | 18.24 | 0.3 | 4.9 | 2.5 | 38 | |
| RM3ZZ | 12 | 45.72 | 15.88 | 19.05 | 26.98 | 0.6 | 9.4 | 4.9 | 130 | |
| RM3 2RS | 12 | 45.72 | 15.88 | 19.05 | 26.98 | 0.6 | 9.4 | 4.9 | 130 | |
| RM4ZZ | 15 | 59.94 | 19.05 | 25.4 | 34.93 | 1 | 14.8 | 8.2 | 280 | |
| RM4 2RS | 15 | 59.94 | 19.05 | 25.4 | 34.93 | 1 | 14.8 | 8.2 | 280 | |
Remark :
We have RM2-2RS 3/8'' inch Track Roller Bearing with Chrome steel Gcr15 material with large stock ,we also can produce with stainless steel .
VW series roller bearing according to difference of seal type can be divided into iron cover seal (no suffix, such as: W1) and rubber cover seal (name of X suffix, such as: W1X) two kinds If using stainless steel material, the name will be the words with the SS, such as: W1SSX
VW series roller bearing according to difference of seal type can be divided into iron cover seal (no suffix, such as: W3) and rubber cover seal (name of X suffix, such as: W3X) two kinds If using stainless steel material, the name will be the words with the SS, such as: W3SSX
VW series roller bearing according to difference of seal type can be divided into iron cover seal (no suffix, such as: W4) and rubber cover seal (name of X suffix, such as: W4X) two kinds If using stainless steel material, the name will be the words with the SS, such as: W4SSX
VW series roller bearing according to difference of seal type can be divided into iron cover seal (no suffix, such as: RM1) and rubber cover seal (name of X suffix, such as: RM2-2RS) two kinds If using stainless steel material, the name will be the words with the SS, such as: W3SSX
VW series roller bearing according to difference of seal type can be divided into iron cover seal (no suffix, such as: RM1) and rubber cover seal (name of X suffix, such as: RM2-2RS) two kinds If using stainless steel material, the name will be the words with the SS, such as: W3SSX
LV 20/7 V Groove Bearings With Size 7*22*11mm are widely use in industrial robot, cutting equipment, mobile guide rail, production lines.
