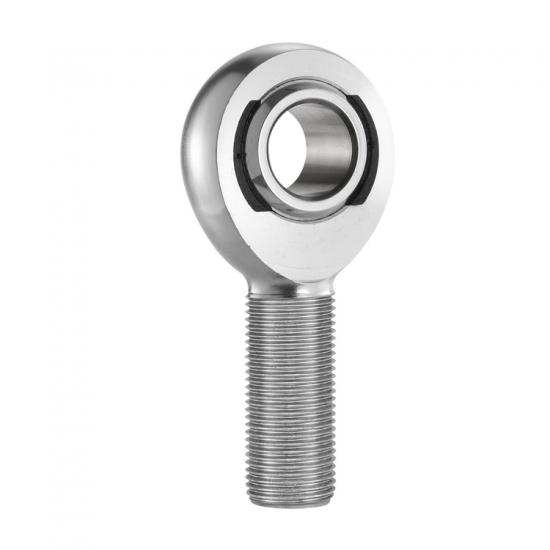

MM-4 Male Rod Ends

MM-4 Male Threaded Right Hand Spherical Rod End - Grade: Precision, Bore Diameter: 0.2500 in, Shank Thread Size: 1/4-28，we have this products in stock.

item no.:
MM-4
MOQ:
1

products details

MM4 Rod End Bearings Specification :

MM4 Bearing Material Introduction :

Body - Low carbon steel, protective coated for corrosion resistance. Size 16 standard series body is alloy steel not heat treated.

Ball - Alloy steel, heat treated, hard chrome plated.

Race - Low carbon steel, protective coated for corrosion resistance.

Grease Fitting available for sizes -3 and up. Units are supplied without grease fittings. When a grease fitting is required, specify by adding suffix "Z" or "F". Ex.: MM-6Z = Zerk Type Fitting MM-6F = Flush Type Fitting.

Dimension :

Thread Type	Right Hand
Thread Configuration	Male
B - Ball Bore	.2500 in
W - Ball Width	.375 in
H - Head Width	.281 in
A - Base to Center	1.562 in
D - Head Diameter	.750 in
Ball Diameter	.500 in
C - Thread Length	1.000 in
Thread Size	1/4-28
Thread Class	UNF-3A
a - Misalignment Angle Clevis Mounted	16 º
Ultimate Radial Static Load Capacity	2,158 lbs
Approximate Brg. Weight	.04 lb
Options	Stud
Type of Lubrication	without

Fisheye Rod End Bearing Features :

sliding contact surface: steel/PTFE

maintenance-free

housing: carbon steel and zinc plated

inner ring material :bearing steel

heat treated HRC 58-62

outer ring material :brass

We Can Produce Other Metric Rod End Joint Bearings:

Bearing No.	Dimensions(mm)									Ball	a0	Load ratings		Weight
	Dimensions(mm)									dia	mis.	(KN)		≈ kg
	d	B	C1	d2	d3-6g	h	L1	L2	L7		angle	Dynamic	Static
SA5E1)	5	6	4.5	21	M5	36	16	46.5	12	10	13	3.4	4.6	0.017
SA6E1)	6	6	4.5	21	M6	36	16	46.5	12	10	13	3.4	6.9	0.017
SA8E1)	8	8	6.5	24	M8	42	21	54	13	13	15	5.5	12.9	0.029
SA10E1)	10	9	7.5	29	M10	48	26	62.5	16	16	12	8.1	17.6	0.044
SA12E1)	12	10	8.5	34	M12	54	28	71	18	18	10	10	24.5	0.066
SA15ES	15	12	10.5	40	M14	63	34	83	22	22	8	16	36	0.121
SA17ES	17	14	11.5	46	M16	69	36	92	24	25	10	21	45	0.172
SA20ES	20	16	13.5	53	M 20x1.5	78	43	104.5	27	29	9	30	60	0.283
SA25ES	25	20	18	64	M24x2	94	53	126	33	35.5	7	48	83	0.504
SA30ES	30	22	20	73	M30x2	110	65	146.5	37.5	40.7	6	62	110	0.835
SA35ES	35	25	22	82	M36x3	140	82	181	41	47	6	79	146	1.41
SA40ES	40	28	24	92	M39x3	150	86	196	47	53	7	99	180	1.86
SA45ES	45	32	28	102	M42x3	163	92	214	52	60	7	127	240	2.57
SA50ES	50	35	31	112	M45x3	185	104	241	60	66	6	156	290	3.58
SA60ES	60	44	39	135	M52x3	210	115	277.5	75.5	80	6	245	450	5.73
SA70ES	70	49	43	160	M56x4	235	125	315	95	92	6	313	610	7.94
SA80ES	80	55	48	180	M64x4	270	140	360	105.5	105	6	400	750	12.06
