LFR5201KDD U Groove Track Roller Bearings 12x35x15.9mm LFR5201KDD U groove track roller bearings are produce with Chrome steel Gcr15 ,we can provide sample for you test . more
SG25 U Groove Ball Track Guide Bearings 8*30*14mm SG25 bearings are produce with Chrome steel Gcr15 ,we can provide sample before order . more
S51106 Thrust Ball Bearings 30x47x11mm S51106 Stainless steel thrust ball bearing,produce with stainless steel ,we can provide with OEM service for you . more
Tapered roller bearings 4T-CRI-0569CS83/5A with size Bore Diameter (mm) : 27*Outer Diameter (mm) : 52*Width (mm) : 45 are widely used for auto spare parts.
item no.:
4T-CR1-0569 CS83/5Abrand:
NTNshipping port:
Shanghai ,Guangzhou,Ningbo ,ShanghaiMOQ:

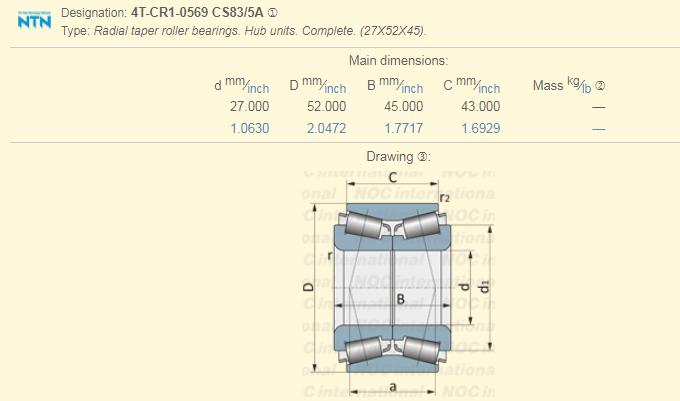

1NTN Auto Wheel Bearing Dimensions And Specification:
d - 27 mm
D - 52 mm
B - 45 mm
C - 43 mm
rx - 3,5 mm
ry - 3,5 mm
Weight - 0,4 Kg
Basic dynamic load rating (C) - 32 kN
Basic static load rating (C0) - 38,5 kN
 |
 |

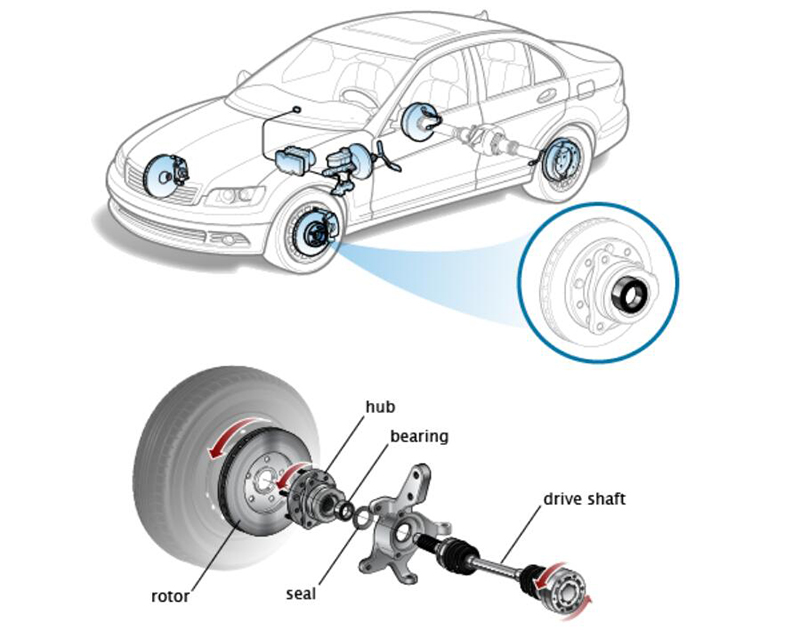

Front Wheel Bearings Application :
Auto front wheel bearing is a double row angular contact ball bearing incorporating an integral outer ring and two separable inner rings; which is available either with seals or without seals. Wheel bearings (hub bearing) main role is to load and for the rotation of the hub to provide accurate guidance, both axial load radial load again, is a very important component.
We have other NTN wheel bearings ,below here are some number for your reference :
Bearing Reference
Boundary dimensions (mm)
Mass(kg)
d
D
B
25BWD01
25
52
42
0.36
27BWD01J
27
60
50
0.36
28BWD03A
28
58
42
0.4
28WBD01A
28
61
42
0.53
30BWD08
30
55
26
0.26
30BWD01A
30
63
42
0.55
30BWD04
30
68
45
0.69
32BWD05
32
72
45
0.8
34BWD04B
34
64
37
0.82
34BWD11
34
64
37
0.46
34BWD10B
34
66
37
0.51
34BWD09A
34
68
42
0.64
34BWD09A
34
68
37
0.54
35BWD19E
35
65
37
0.48
35BWD07
35
68
30
0.48
35BWD07A
35
68
30
0.48
35BWD16
35
68
36
0.48
35BWD06A
35
72
31
0.55
36BWD04
36
68
33
0.48
36BWD03
36
72
42
0.68
36BWD01B
36
72.041
34
0.57
37BWD01
37
74
45
0.79
previous :
54KWH01 Wheel Hub Bearingsnext :
NSK Hiace Wheel Hub Bearing 54KWH02
Bearing 30BWD07 also same as the item DAC3060W This bearing with bore diameter is 30 mm,outer diameter 60.03mm the width 37mm can be waidely use in different cars such as Volvo
wheel hub bearing 43560-26010, 54KWH02 with size Inner Diameter: 53 mm*Outer Diameter: 90 mm*Width: 60 mm is use for Front Axle of Hiace IV Wagon.
26x55.5x43mm DAC2656 Wheel Bearing can used for Hyundai Eon.
54*132*51mm 54KWH01 Wheel Hub Bearings can used for Toyota front axle ,we can provide sample for you to test .
35*65*35 mm DAC35650035Wheel Hub Bearings can used for Renault ,Chrysler ,Peugeot,we can provide sample for you to test .
34*64*34mm DAC34640034 Wheel Hub Bearings can used for different car wheel hub ,we can provide sample for you to test .
