NUP 2307 ECP Cylindrical Roller Bearings

35*80*31mm NUP 2307 ECP single row cylindrical roller bearings with brass cage ,we have

item no.:
NUP 2307 ECP
shipping port:
Shanghai ,Ningbo ,Guangzhou
MOQ:
1

products details

Cylindrical Roller Bearing Introduction:

Cylindrical roller bearing is a kind of separable bearings, convenient for its assembly and disassembly especially it has the advantages in a condition that the interference is required and assorted with inner ring, outer ring and housing. The bearings consist of the cage, the rollers and guided by two capped edges on a ring. .

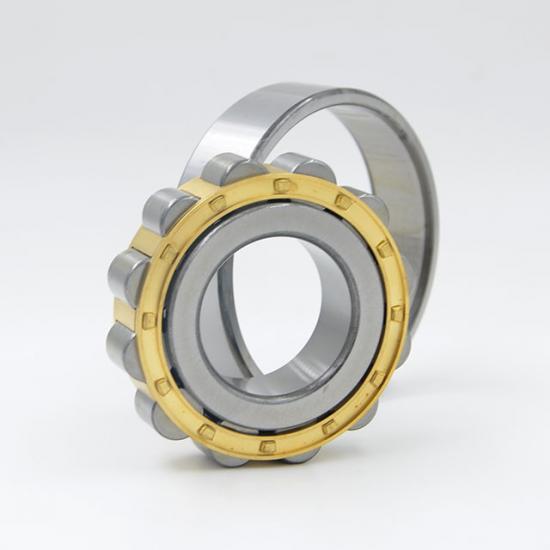

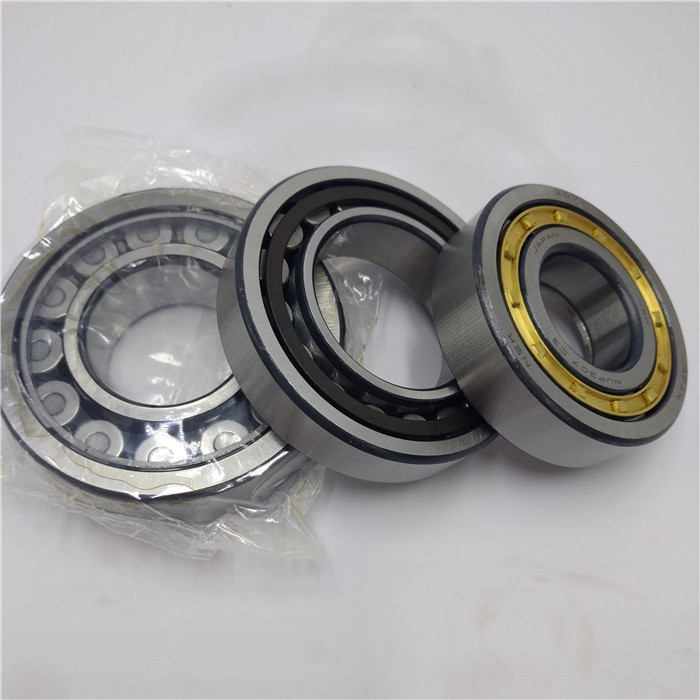

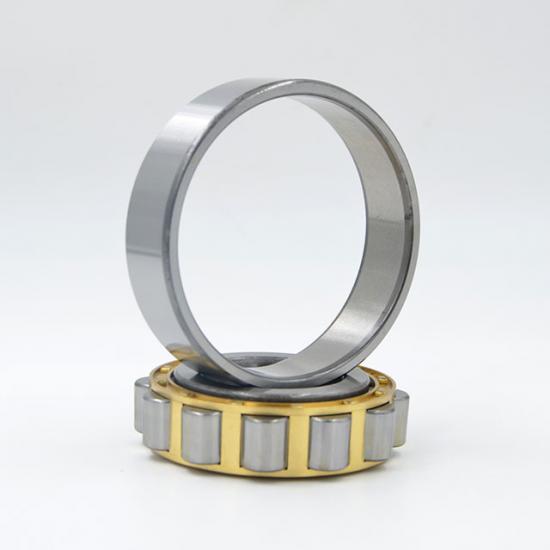

NUP 2307 ECP Bearing Description :

Dimension :

Inner ring diameter:35mm

Outer ring diameter:80mm

Height :31mm

Material : Brass cage +Chrome steel rings

Cylindrical Roller Bearing Series:

Dimensions			Dynamic	Static	Bearing No.
d(mm)	D(mm)	B(mm)	C(kn)	C0(kn)
45	100	25	112	100	NU 309 ECP *
45	100	25	112	100	NU 309 ECM *
45	100	25	112	100	NJ 309 ECP *
45	100	25	112	100	NJ 309 ECML *
45	100	25	112	100	NJ 309 ECJ *
45	100	25	112	100	NU 309 ECML *
45	100	25	112	100	NJ 309 ECM *
45	100	25	112	100	NUP 309 ECP *
45	100	25	112	100	N 309 ECP *
45	100	25	112	100	NUPJ 309 ECJ *
45	100	25	112	100	NUP 309 ECNP *

NUP 2307 ECP Cylindrical Roller Bearing Features:
1):Retainer: Brass/Nylon/Steel as your requirement
2):Single direction
3):Restricted tolerances
4):Vibration resistance
5):Suitable for high speed

We can Produce different type of N NJ NU NF NUP 2205 ecp Roller Bearing.
