LFR5201KDD U Groove Track Roller Bearings 12x35x15.9mm LFR5201KDD U groove track roller bearings are produce with Chrome steel Gcr15 ,we can provide sample for you test . more
SG25 U Groove Ball Track Guide Bearings 8*30*14mm SG25 bearings are produce with Chrome steel Gcr15 ,we can provide sample before order . more
S51106 Thrust Ball Bearings 30x47x11mm S51106 Stainless steel thrust ball bearing,produce with stainless steel ,we can provide with OEM service for you . more
35*80*31mm NUP 2307 EMC3 produce with chrome steel Gcr15 and copper cage ,we have bearings in stock now .
item no.:
NUP 2307 EMC3lead time:
7 daysproduct orgin:
China ,Shanghaishipping port:
Shanghai ,Ningbo ,GuangzhouMOQ:
50
NUP 2307 EMC3 Bearing Specification :
Material :Chrome steel +copper cage
Dimension :
Inner diameter :35mm
Outer diameter:80mm
Height :31mm
Product Name
|
Cylindrical roller
bearings
|
Prefix
|
N NU NJ NUP
|
Suffix
|
M ECM ECP ECJ MA MB ML
MP ECML ECMA ECMB ECMP
|

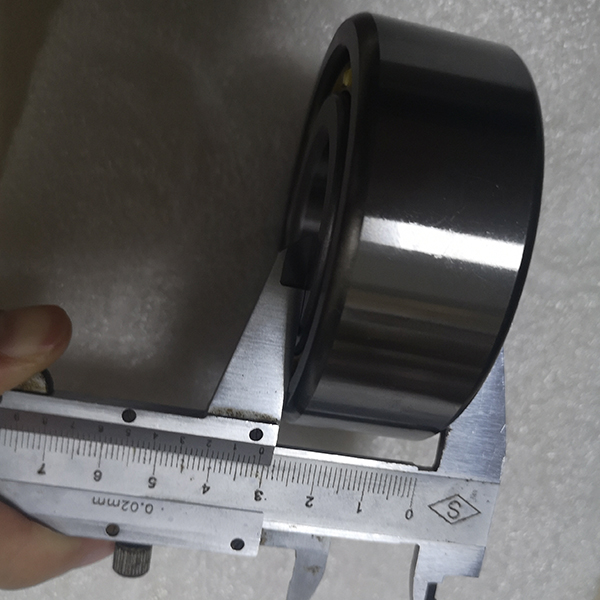

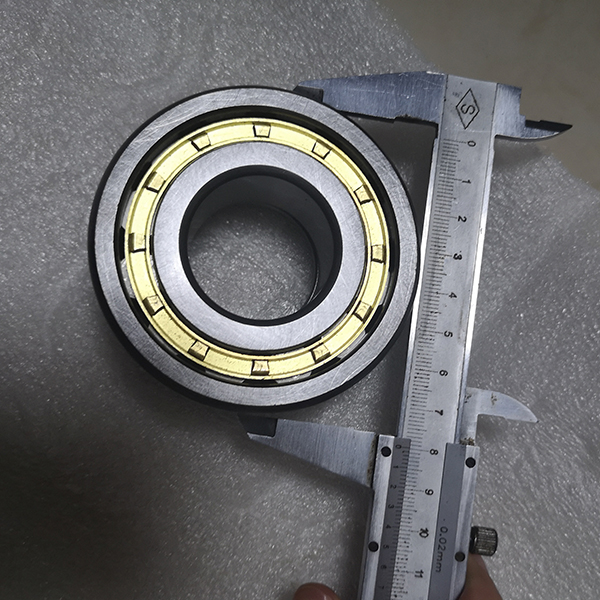

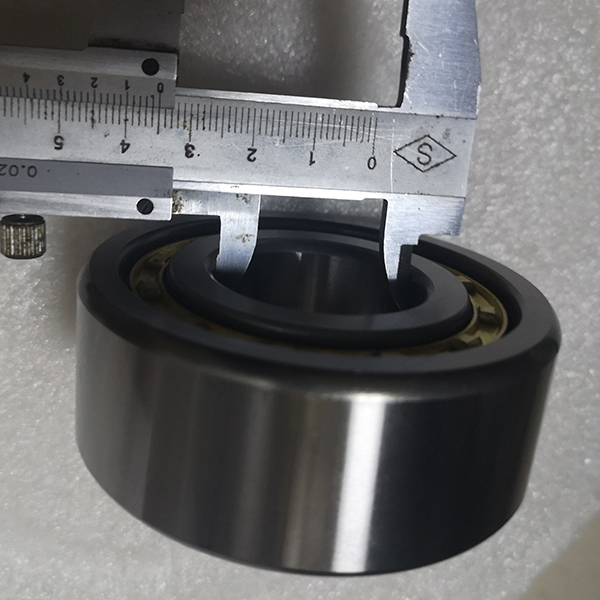

NUP 2307 EMC3 Bearing Pictures:
|
|
|
Application :
Motors, machine tool spindles, internal combustion engines, generators, rolling mills, vibrating screens, etc.
We Can Produce Different Type of Cylindrical Roller Bearing:
Bearing No.
Boundary dimensions (mm)
Basic load ratings (KN)
Weight KG
d
D
B
Cr
C0r
NUP205EM
25
52
15
29300
27700
0.155
NUP2205EM
52
18
35000
34500
0.184
NUP305EM
62
17
41500
37500
0.279
NUP2305EM
62
24
57000
56000
0.384
NUP206EM
30
62
16
39000
37500
0.236
NUP2206EM
62
20
49000
5000
0.292
NUP306EM
72
19
53000
5000
0.41
NUP2306EM
72
27
74000
77500
0.586
NUP207EM
35
72
17
50500
50000
0.341
NUP2207EM
72
23
61500
65500
0.458
NUP307EM
80
21
66500
65500
0.547
NUP2307EM
80
31
93000
101000
0.809
NUP208EM
40
80
18
55500
55500
0.43
NUP2208EM
80
23
72500
77500
0.548
NUP308EM
90
23
83000
84500
0.751
NUP2308EM
90
33
114000
81500
1.08
NUP209EM
45
85
19
63000
122000
0.492
NUP2209EM
85
23
76000
66500
0.595
NUP309EM
100
25
97500
84500
1.01
NUP2309EM
100
36
137000
98500
1.46
NUP210EM
50
90
20
69000
153000
0.564
NUP2210EM
90
23
83500
76500
0.642
NUP310EM
110
27
110000
97000
1.32
NUP2310EM
110
40
163000
113000
1.94
NUP211EM
55
100
21
86500
187000
0.736
NUP2211EM
100
25
101000
98500
0.881
NUP311EM
120
29
137000
122000
1.67
NUP2311EM
120
43
201000
233000
2.48
