One Way Cam Clutch Bearing ASK 50

ASK 50 Wholesale Rolling Bearing are produce with Gcr15 material and the standard size is 50*80*16mm and this type of bearing are with standard radial clearance is C4.

item no.:
ASK 50
lead time:
7-35 DAYS
product orgin:
China ,Shanghai
shipping port:
Ningbo,Shanghai,Guangzhou,Qingdao
MOQ:
100

products details

Clutch Bearing ASK 50 Introduction :

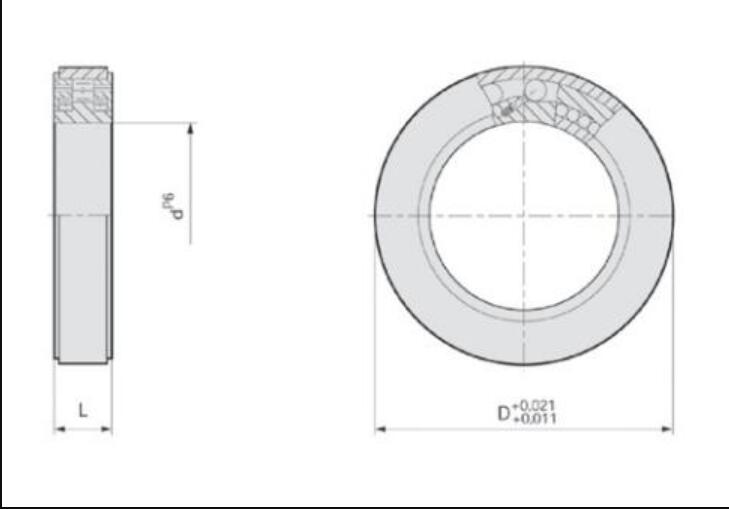

ask50 drawing

Item	ASK50
Material	GCr15
Outer diameter	80 mm
Inner diameter	50 mm
Width	16 mm
Bearing series	6010
Torque	125 Nm
Drag Torque	20 Ncm
Weight	0.34 kg

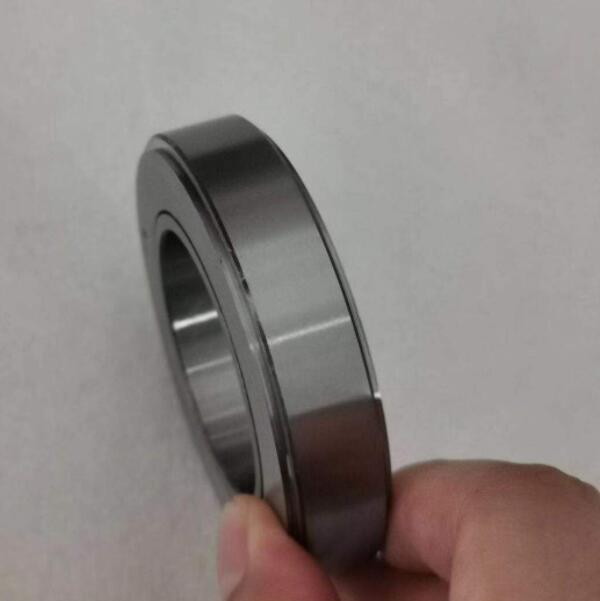

Freewheel Clutch Bearing Picture :

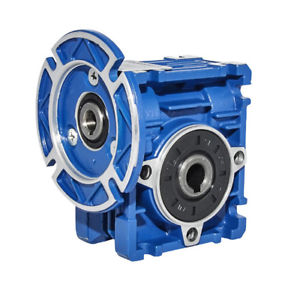

ASK50 one-way overrunning clutch is mainly used general machinery Gear Reducer , such as packaging machinery, printing machinery, textile machinery, transmission machinery, food machinery, plastic machinery, petrochemical machinery, lifting transportation machinery, high voltage switch, fan, deceleration machine, compressor, machine tools and so on.

We can produce other ASK Series :

Type	Size	Bearing Series			Outside Diameter	Height	Bearing loads		Weight	Drag torque
Type	Size	Bearing Series			Outside Diameter	Height	Dynamic	static	Weight	Drag torque
ASK	Dp6 (mm)		TKN1) (Nm)	nmax (min-1)	D (mm)	L (mm)	C (kN)	C0 (kN)	(kg)	TR (Ncm)
	40	6008	72	3500	68	15	16	20.6	0.25	15
	50	6010	125	2200	80	16	19.6	23.5	0.34	20
	60	6012	250	1800	95	18	25.3	35.1	0.5	25

1) Tmax = 2 × TKN

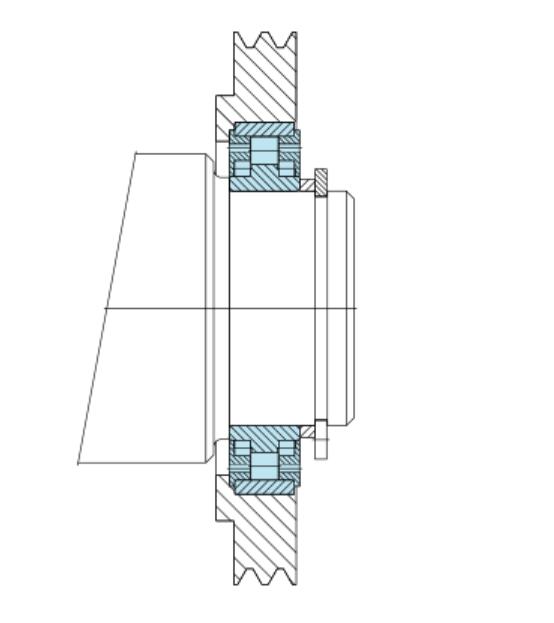

Mounting

ask50 bearing Mounting
