Sliding Window Roller Wheels

Bearing For Sliding Window Specification :

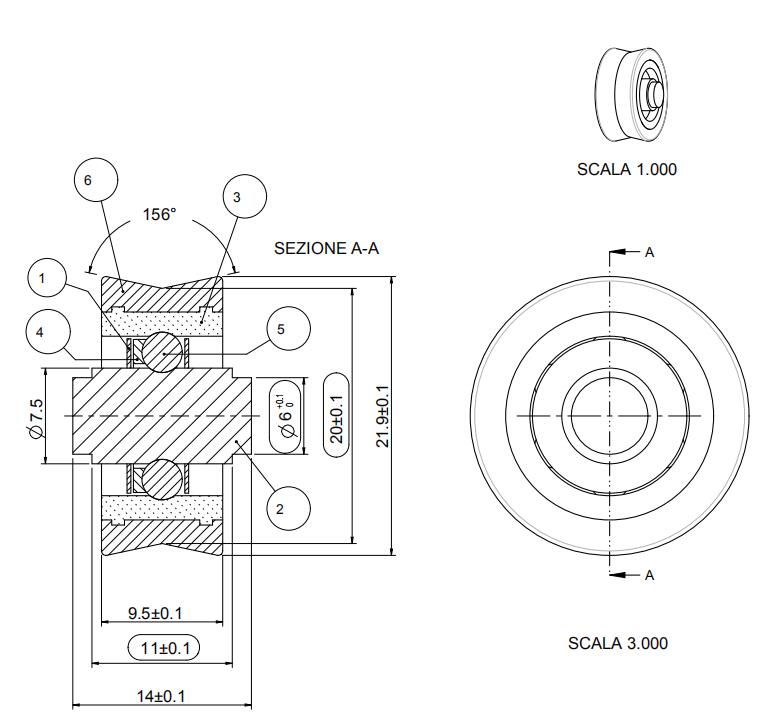

Dimension :

Inner diameter : 6mm

Outer diameter : 22mm

Height :14mm

Material : Carbon steel and nylon 6.6 +30% fiber glass

Shape : V groove

Color : orange or customized

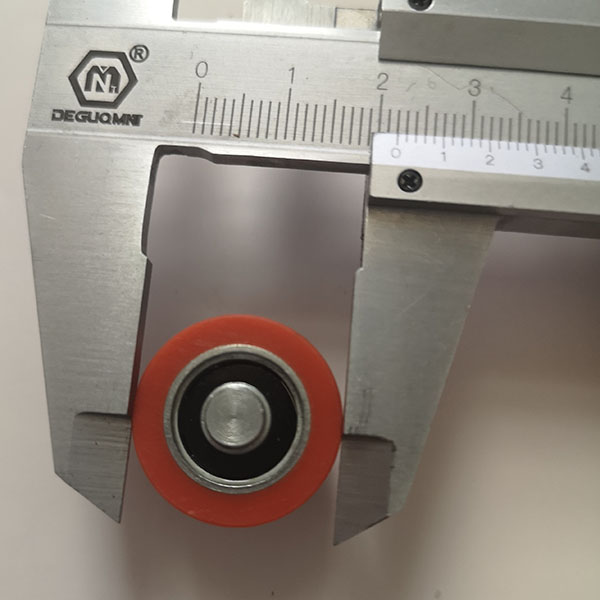

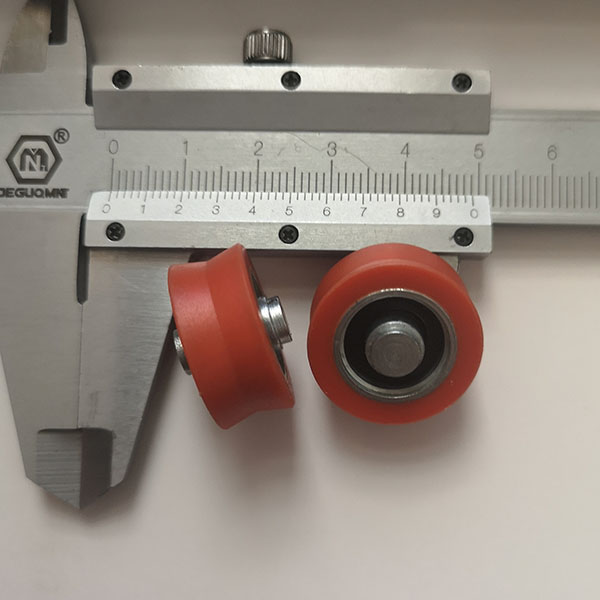

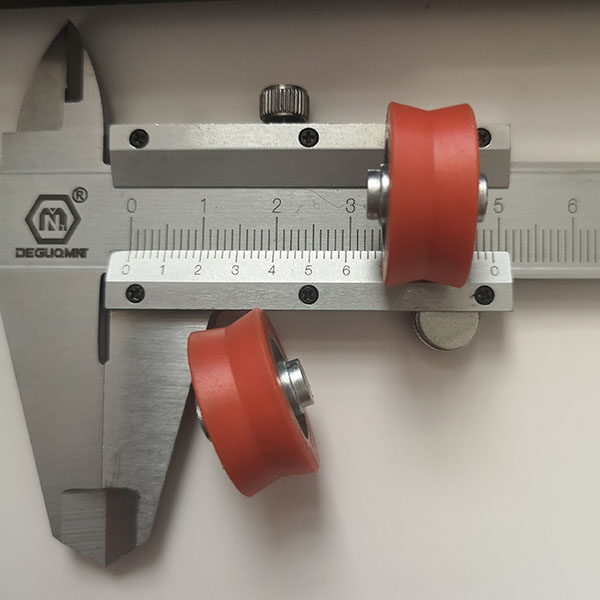

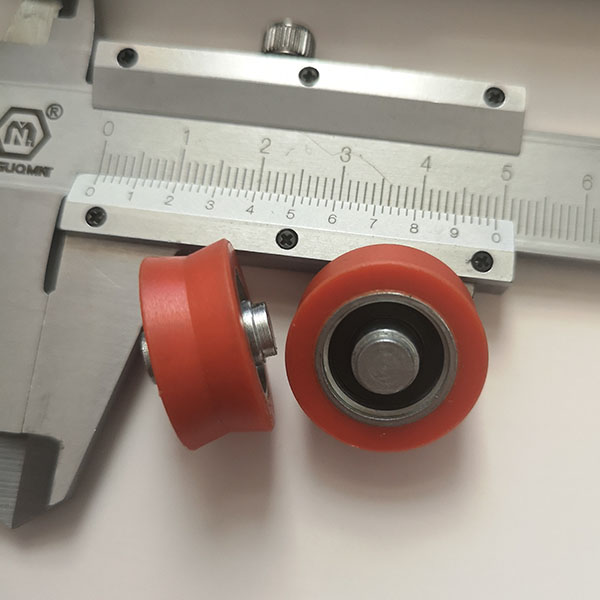

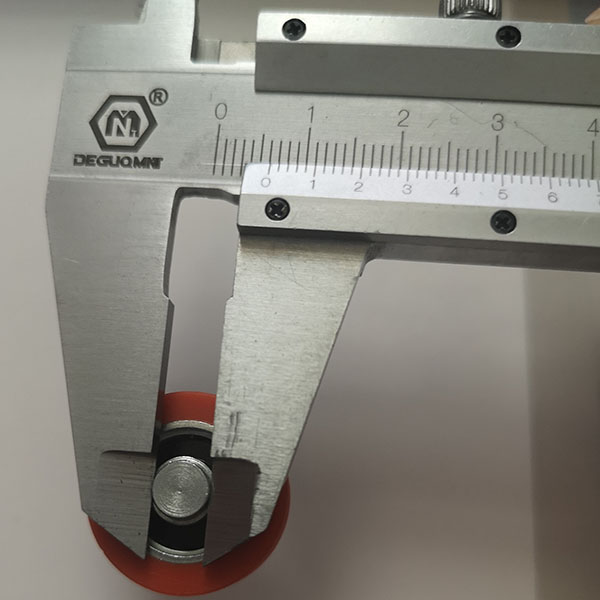

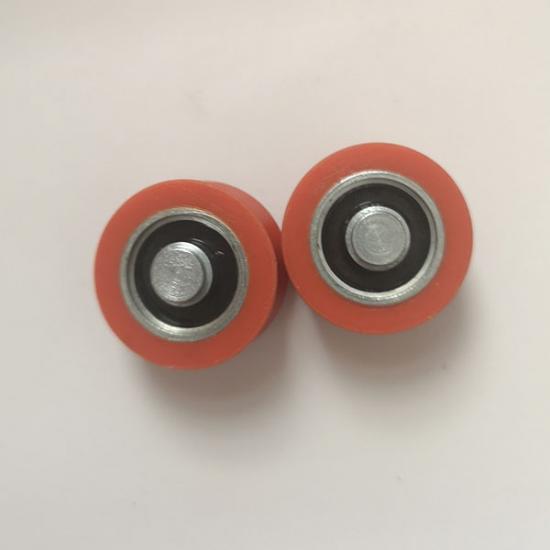

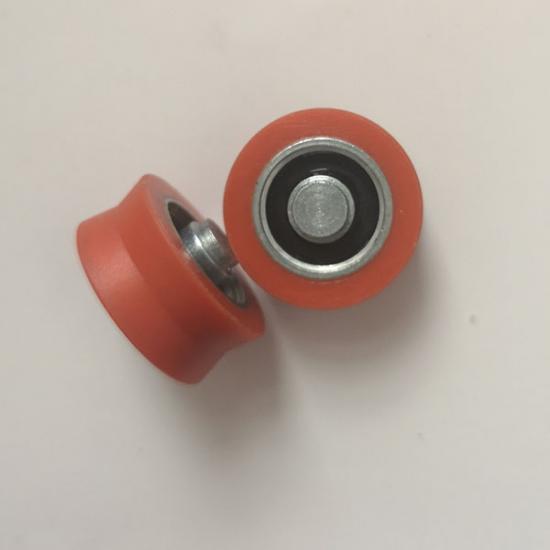

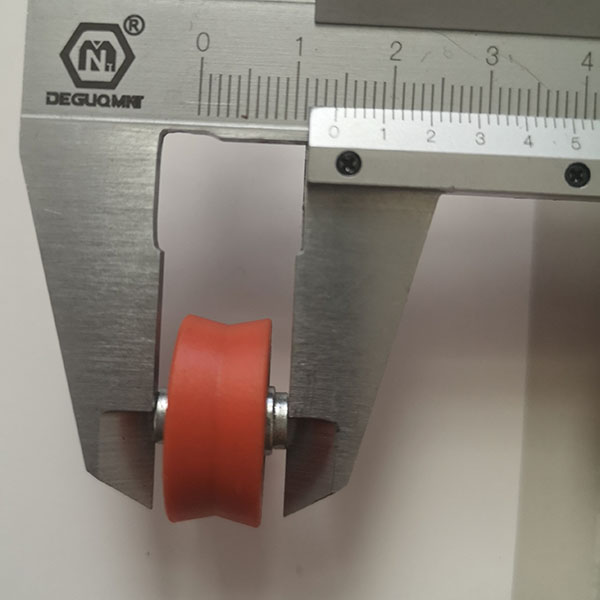

Sliding Window Bearing Picture :

Application :

Orange roller with bearings are widely used in the different of

door, window and furniture systems,

which like Wardrobe, closet, cabinet, door, Window, decorating,

hardware accessories by Sliding & Folding & Hanging.

Quality :
push-pull tested: 100,000 times

We can produce v / u groove wheel bearing roller as below details :

Bearing Material:Stainless steel, Bearing Steel, Chrome Steel, Carbon Steel

Cover Material: Plastic, Polyurethane (PU ), POM, Nylon, Fiberglass, etc.

 Sliding door window roller Features:

1. Low noise, low vibration, high precision.

2. High sealing performance, high operation performance, Long working life.

3. Small clearance and corrosion resistant.

4. Can be standard and non-standard.

Heat Treat:

Our bearing that under heat treatment can greatly improve of its life, reliability, rigidity, wear resistance and anti-fatigue function.

Bearing Precision Grinding:

The good grinding processing in the outer and inner ring, make the surface

smooth and delicate, grinding crack and groove

error obviously reduced and touch surface larger.
