Square Bore Farm Machine Bearings W208PPB6

W208PPB6 disc harrow bearing with 1" square bore, with non-relubricable ,two triple lips seals and the dimensions are 1" ID, 3.1496" Spherical OD, 1.438" Inner Race Width, 0.709" Outer Race Width

item no.:
W208PPB6
lead time:
30 days
product orgin:
China ,Shanghai
shipping port:
Ningbo,Shanghai,Guangzhou,Qingdao
MOQ:
100

products details

1" Square Bore Bearings W208PPB6 Introduction :

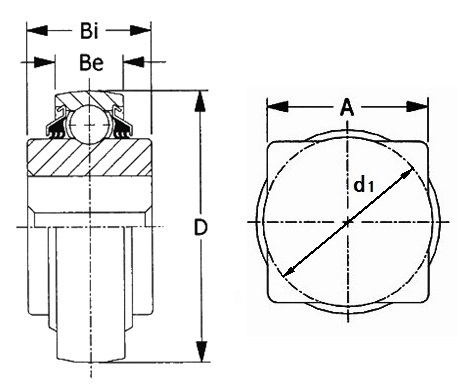

Bearings W208PPB6 size

Dimension:

1" Square Bore

3.1496" Rounded Outside Diameter

1.438" Inner Race Width

0.709" Outer Race Width

Material :Chrome steel Gcr15

Packing : white box

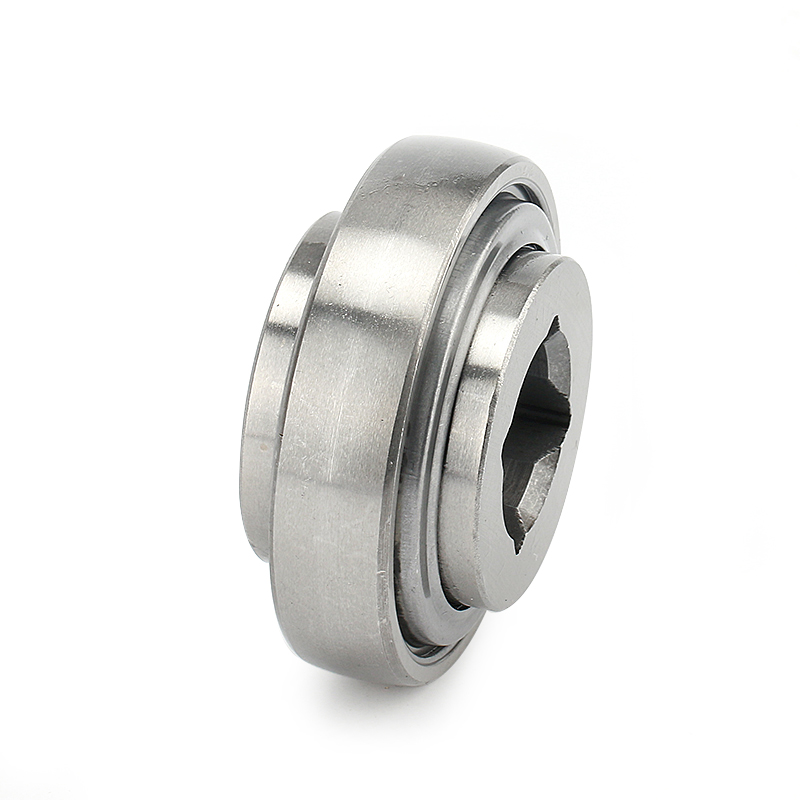

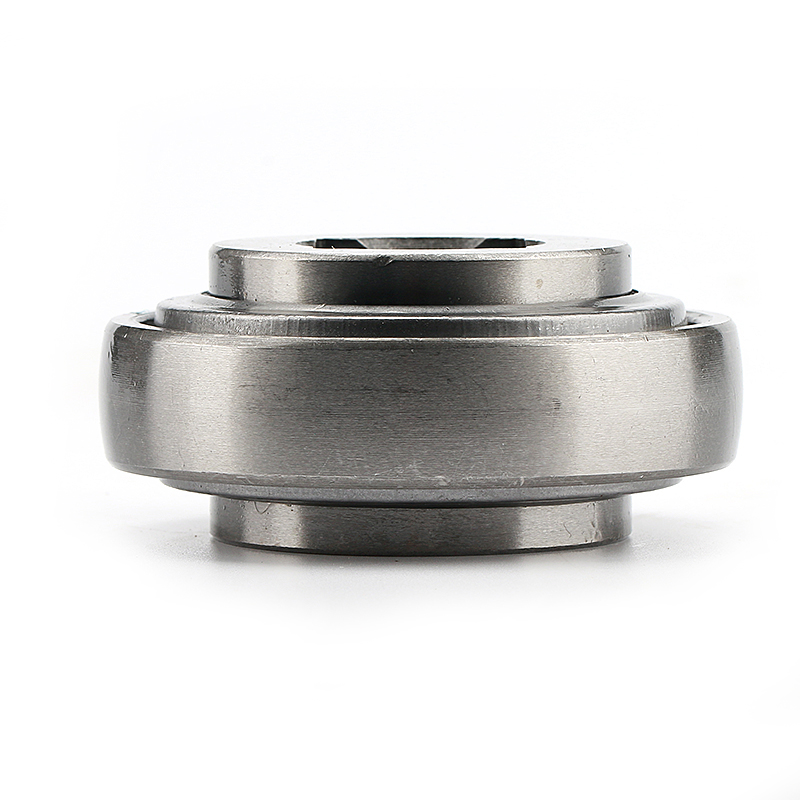

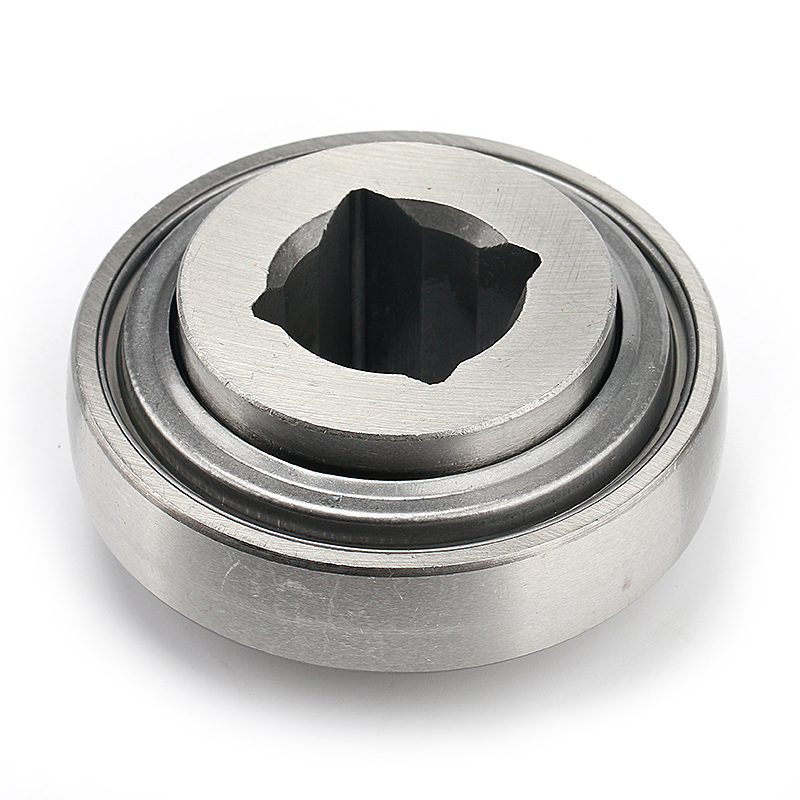

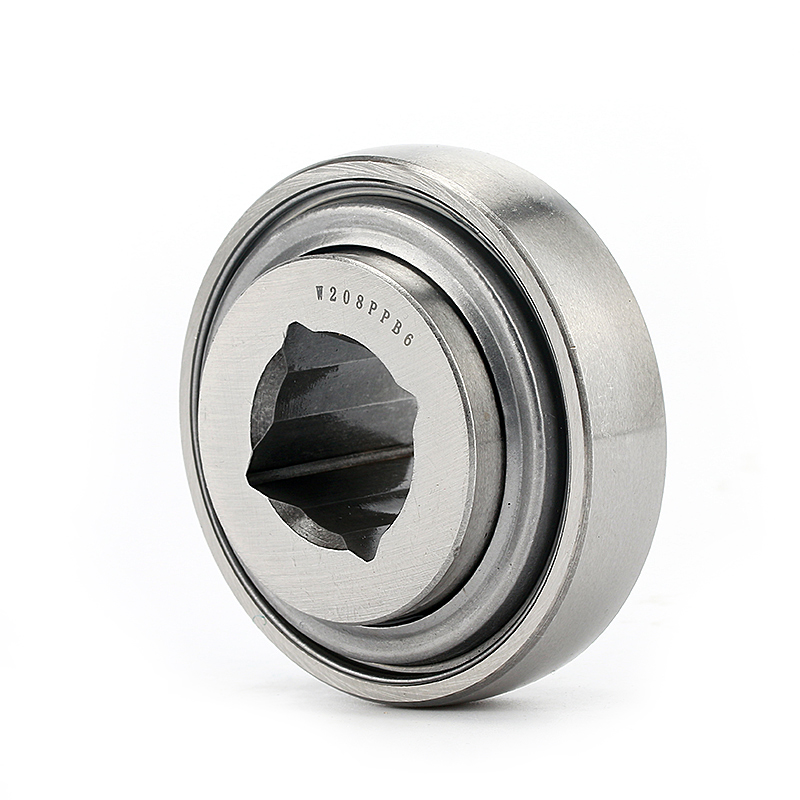

Agricultural Machinery Bearing Picture:

Other OEM NO.:

BCA/FEDERAL MOGUL: DS208TT6

FAFNIR/TORRINGTON: W208PPB6

LINK BELT: 16S5-208E3

NTN: 1AS08-1

Bearings W208PPB6 Can Used For Different Machinery Parts Such As :

Disc Brand	OEM#	Model
AMCO	G11079	LFBD2, LFB2, LTB2
BUSH HOG	14-22-63
CASE	T15820
HESSTON	710152
MASSEY	1025130M1	21
MASSEY	6519831
MASSEY	834367M1
MINN-MOLINE	20H5836	KA
TYE	552-207
ATHENS

We Can Produce Other Square Bore Ag Bearings :

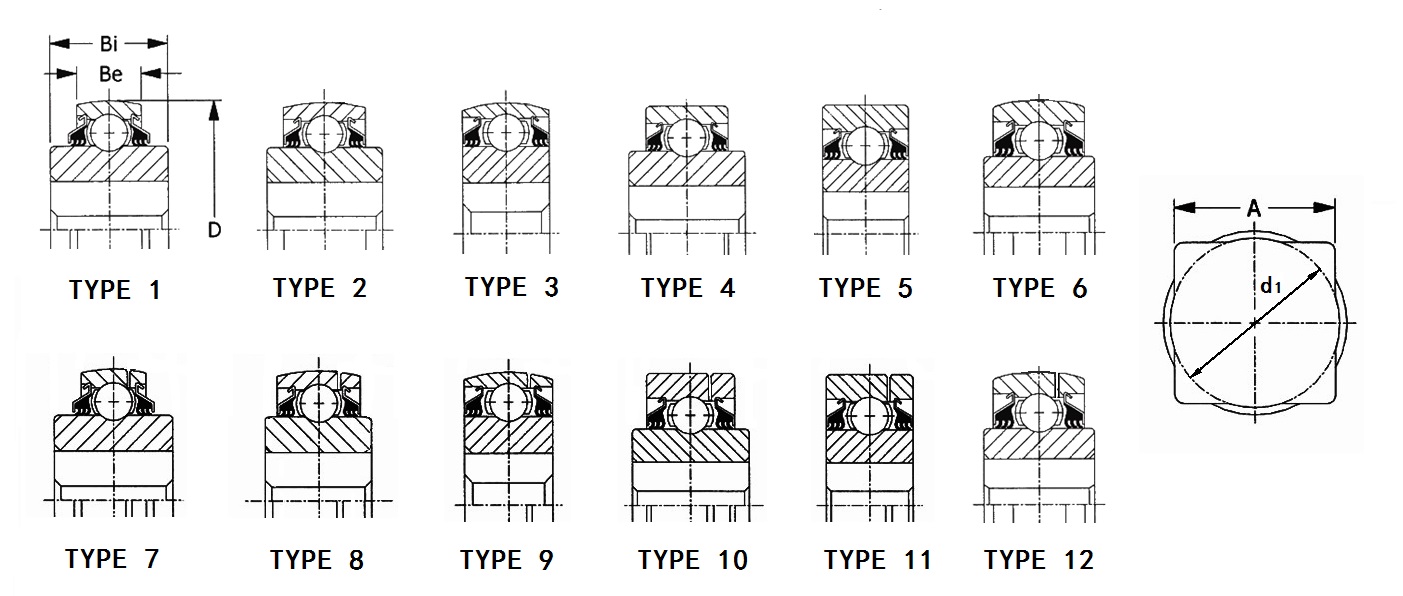

ag bearing type

UNIT NUMBER	Type	Shaft Size	A	D	Be	Bi	Load Ratings		Wt.
UNIT NUMBER	Type	mm	mm	mm	mm	mm	Dynamic	Static	kg
W208PPB13	1	22.225	23	80	18	36.52	7340	3650	0.735
W208PPB11	6	22.225	23	85.75	30.175	36.52	7340	3650	0.93
W208PP6	4	25.4	26.162	80	18	36.52	7340	3650	0.735
W208PPB6	1	25.4	26.162	80	18	36.52	7340	3650	0.721
W208PPB9	2	25.4	26.162	80	30.175	36.52	7340	3650	0.789
GW208PPB6	7	25.4	26.162	80	21	36.525	7340	3650	0.794
W208PP5	4	28.575	29.972	80	18	36.52	7340	3650	0.68
W208PPB5	1	28.575	29.972	80	18	36.52	7340	3650	0.667
W208PP8	4	28.575	29.972	80	30.175	36.52	7340	3650	0.753
W208PPB8	2	28.575	29.972	80	30.175	36.52	7340	3650	0.753
GW208PPB5	7	28.575	29.972	80	21	36.525	7340	3650	0.667
GW208PPB8	8	28.575	29.972	80	30.175	36.525	7340	3650	0.794
GW208PP17	10	28.575	29.972	85.738	30.175	36.525	7340	3650	0.925
GW208PPB17	8	28.575	29.972	85.738	30.175	36.525	7340	3650	0.925
W208PPB12	6	28.575	29.972	85.75	30.175	36.52	7340	3650	0.735
W210PP4	5	28.575	29.972	90	30.175	30.15	7880	4650	0.871
W210PPB4	3	28.575	29.972	90	30.175	30.175	7880	4650	0.957
W210PPB6	2	28.575	29.972	90	30.175	36.52	7880	4650	0.957
GW210PP4	11	28.575	29.972	90	30.175	30.175	7880	4650	1.048
GW210PPB4	9	28.575	29.972	90	30.175	30.175	7880	4650	0.794
W208K2	4	25.4	26.162	80	18	42.863	7340	3650
W208K3	4	28.575	29.972	80	18	42.875	7340	3650
W209PPB25	6		25	90	29	45	7350	4150	1.32

hot tags :

1" Square Bore Bearings Agricultural Square Bore Bearing Four-corner Bearing W208PPB6 Inner square Bearing W208PPB6

previous :
W211PP5 Disc Harrow Bearings
next :
Square Bore Disc Harrow Bearings GW211PP17

related products

1-1/8 Inch Disc Harrow Bearing W208PP5

Agricultural Machinery Bearing GW208PPB8 With Material Chrome Steel And Standard Bore 1-1/8 inch .

Square Bore Disc Harrow Bearings GW211PP17

GW211PP17 square bore bearing with inner bore size 1-1/2" ,this bearings are produce with Chrome steel and with tripple lip seals to protect from corrosive environments.

W211PP5 Disc Harrow Bearings

Square Bore, 1.5000 in Bore, 4.0000 in OD, 1.7500 in Width W211PP5 Farm Bearing.

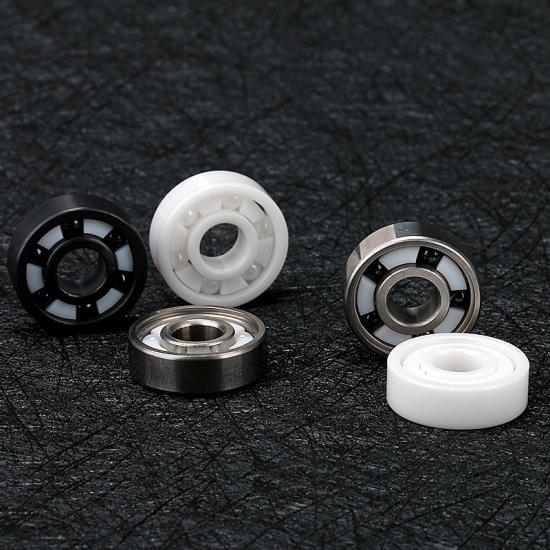

608 Hybrid Ceramic Bearings With Silicone Nitride Balls

608 Hybrid Ceramic Bearings with size 8*22*7mm ,the inner ring and outer rings are with material Chrome steel and the balls are made of ceramic ZrO2 or Si3N4 ,this bearing have a high precision, free in spin and competitive price .

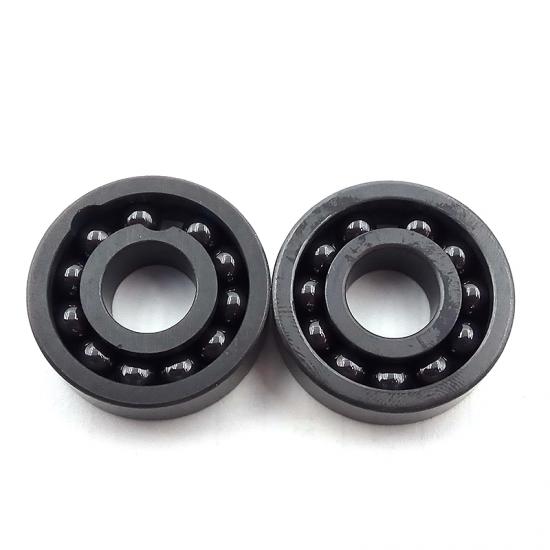

6302 High Temperature Ceramic Silicon Nitride Bearings

6302 full silicon nitride balls ceramic bearing with size 15*42*13mm ,this bearing are produce with full balls without any cage and with material ceramic ZrO2 and PTFE cage,which can working at temperature at 600 degree .

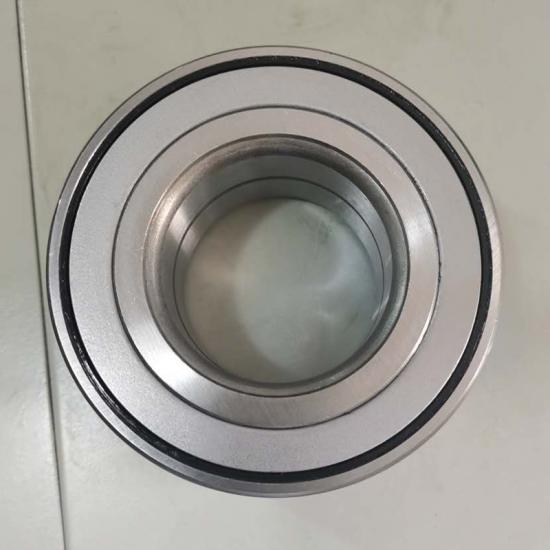

DAC42820036 Febest Front Wheel Bearing
