LFR5201KDD U Groove Track Roller Bearings 12x35x15.9mm LFR5201KDD U groove track roller bearings are produce with Chrome steel Gcr15 ,we can provide sample for you test . more
SG25 U Groove Ball Track Guide Bearings 8*30*14mm SG25 bearings are produce with Chrome steel Gcr15 ,we can provide sample before order . more
S51106 Thrust Ball Bearings 30x47x11mm S51106 Stainless steel thrust ball bearing,produce with stainless steel ,we can provide with OEM service for you . more
stainless steel 304 316 420 440C,We do surface treatment polish finish High Polished,soft polished,harden polished,unpolished.
item no.:
19.05mmlead time:
7 days after confirm ordershipping port:
Ningbo ,Shanghai,Guanzhoucolor:
black whiteMOQ:

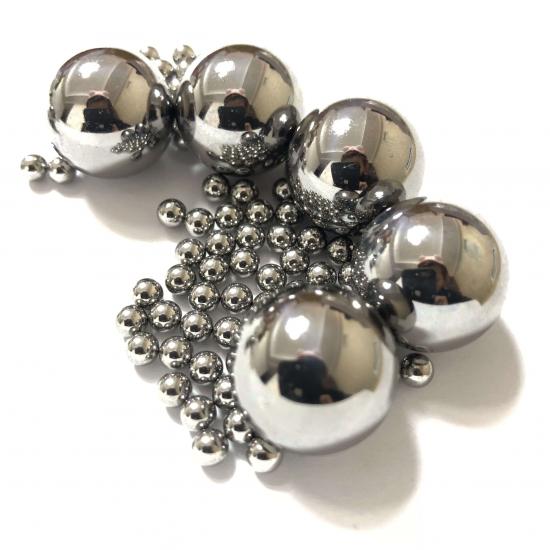

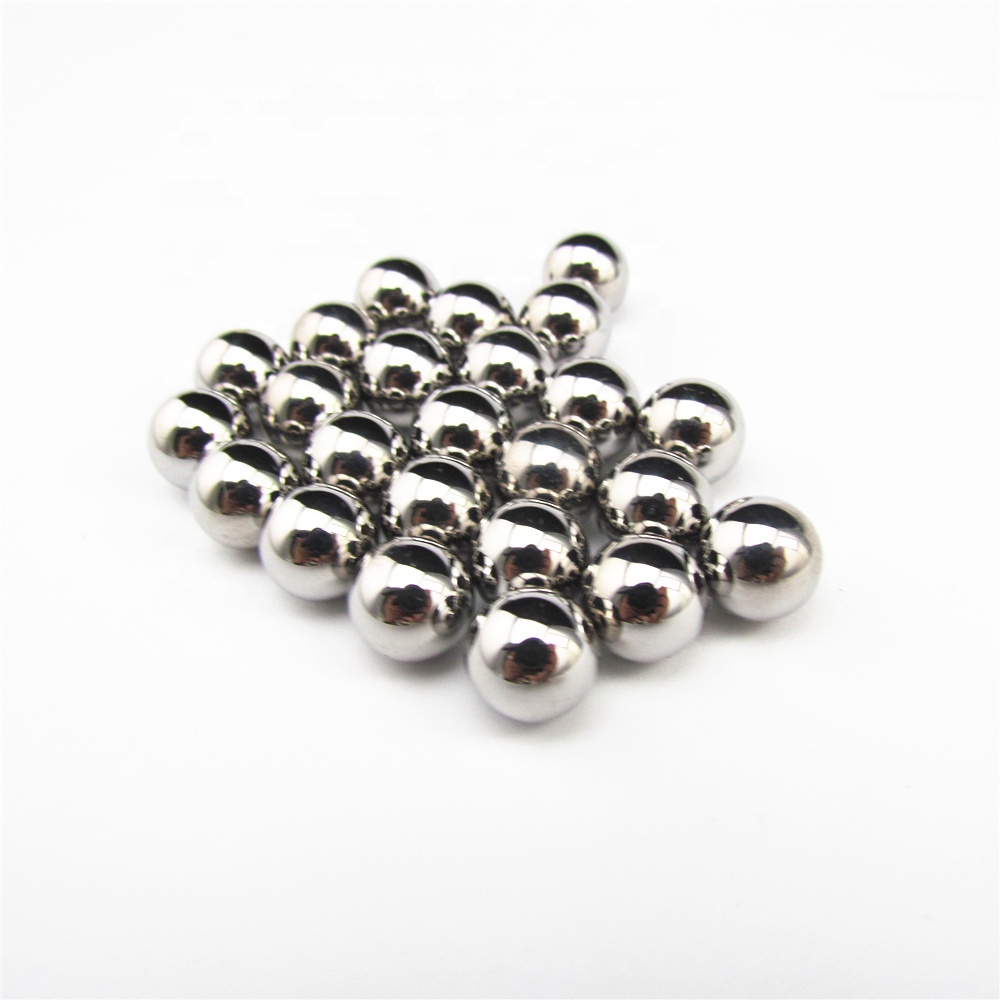

1ZZ BEARING Can Produce Stainless Steel balls Which are used in valve pumps, nail polish and spray paint bottles for agitation, sprinkling systems, appliance components, casters, drawer slides, locking mechanisms, semi-precision bearings and a host of other industrial and consumer products. Decok Steel Ball Company offers a wide range of stainless steel materials such as 201, 302, 304, 316, 316L, 420, 430 and 440C. Other oem service such as drilling, threading, polishing, plating, cutting,welding and so on both available upon request.
Stainless steel Basic Information:
Material :AISI 201,304,316,420,430,440
Size Range :0.35mm - 200mm
Grade:G100 G200 G500 G1000
Feature:Corrosion Resistance
We can prodive different material stainless steel balls :
AISI 304
Feature: Austenitic, corrosion resistance, slightly magnetic, however annealing can make it non-magnetic
General Applications: Used in valves and relevant application, food products, aerosols, home sprays, perfumes and medical equipments.
AISI 316
Feature: non-magnetic, good corrosion resistance even when exposed to marine atmosphere and sulfuric acid.
General Applications: used in presence of sulphuric, phosphoric and acetic acides, Mainly used in chemical, paper and textile industries.
AISI 316L
Feature: Characteristics same as 316 but with excellent corrosion resistance. Lower carbon content than regular 316.
General Applications: Especially used in Jewelry, and Human Implant Applications
AISI 420
Feature: Magnetic, harden-able, fair corrosion resistance
General Applications: Used for special bearings and valves where balls requiring a combination of hardness and corrosion resistance
AISI 440C
Feature: Magnetic, highest hardness, good corrosion resistance.
General Applications: Used in bearing, nozzles and valves where lubrication is poor or absent.
We Also Can Produce Ceramic Balls :
|
Item
|
Units
|
Si3N4
|
ZrO2
|
GCr15
|
9Cr18
|
|
Color
|
-
|
Black
|
White
|
Grey
|
Grey
|
|
Density
|
g/cm3
|
≥3.20
|
5.95-6.05
|
7.85
|
7.85
|
|
Hardness (HV)
|
Gpa
|
16
|
12
|
7
|
7
|
|
Flexural Strength
|
Mpa
|
>720
|
900
|
-
|
-
|
|
Fracture Toughness
|
Mpa.m1/2
|
6.2
|
7
|
20
|
25
|
|
Elasticity Modulus
|
Gpa
|
300
|
210
|
208
|
200
|
|
Coefficient of Thermal Expansion
|
10-6/℃
|
3.0-3.2
|
10.3
|
12.5
|
17
|
|
Thermal Conductivity
|
w/m.k
|
15-20
|
2.2
|
40
|
40
|
|
Volume Resistivity
|
Ω.cm
|
>1014
|
1012
|
0.1-1
|
0.1-1
|
|
Max. Operating Temp.
(No load)
|
℃
|
1200
|
850
|
300
|
150
|
Application of Bearing Balls :
bearing ball is widely used in high-speed and low-noise bearing, bicycle, motorcycle, automobile,bags, electronical industry.The bearing steel ball can be used for grinding other medium.
previous :
1/4" Bore R4-2RS Vacuum Cleaner Motor Bearingsnext :
19.05mm3/4 Inch Chrome Steel Ball For Bearing
Inner Diameter: 1/4" Outer Diamter: 21/32", Plain, Self-Lubricating, Self-Aligning, Low Speed, Narrow, Grooved Outer Ring, MS14101-4 Bearing.
AISI52100 chrome steel ball, 100CR6 GCR15 chrome steel ball With Grade G10 and 19.05mm
The R4-2RS radial ball bearings with inner size 1/4 inch can be widely used in different applications. The R4-2RS ball bearing with two rubber seals. We also can produe with R4 RS, R4 ZZ, R4 Z,R4 ,you can choose as what you need .
The R4-2RS radial ball bearings with inner size 1/4 inch can be widely used in different applications. The R4-2RS ball bearing with two rubber seals. We also can produe with R4 RS, R4 ZZ, R4 Z,R4 ,you can choose as what you need .
China best quality plastic bearing 608 with anti-magnetic insulation, wear-resistant corrosion-resistant, oil-free self-lubricating, high temperature resistance to cold and other characteristics, can be used for extrem operation environment.
6332 M/C3 deep groove bearing withBrass Cage and Chrome steel Gcr15 Brass Cage ,the dimensions is 160*340*68mm ,we have this bearing in stock now .
