UCP204 Cast Iron Pillow Block Bearing Housing

new products

UCP204 Cast Iron Pillow Block Bearing Housing

UCP204 with inner standard size 20mm ,the bearing unit are produced with Chrome steel Gcr15 and cast iron housing and locked by setscrew.

  • item no.:

    UCP204
  • lead time:

    7-35 DAYS
  • product orgin:

    China ,Shanghai
  • shipping port:

    Ningbo ,Shanghai,Guanzhou
  • MOQ:

    1
products details

Pillow block bearings are housing combined with radial insert bearing. Most of the outer spherical bearings are made of a spherical surface The structure of bearing unit are various, and the versatility and interchangeability are good.


Mount Bearing UCP204 Specification :


Insert Bearing material :Chrome steel Gcr15 or stainless steel

Housing material : Cast iron

Dimension:

Shaft Dia (d):25 mm

Height (H):33.3mm

Length (L):127mm

Bolt Size:M10

Weight :0.7 kg

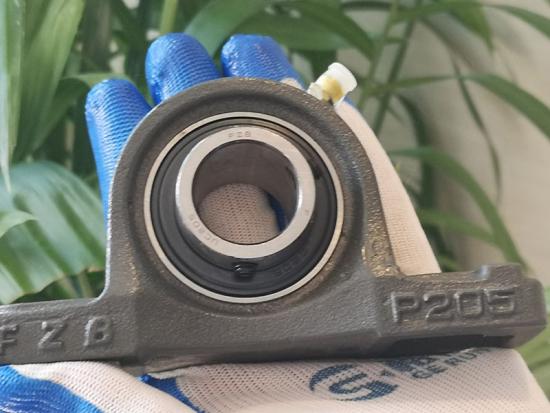

UCP205-16 BEARING UNIT



Housing bearings are also designed with a certain degree of self-alignment, they are easy to install, and have a double-structured sealing device that can work in harsh environments.  There are many type of pillow block,such as vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), ring seat (C), slider seat, etc. T).


The bearing unit is consist of pillow block and insert bearing ,the spherical bearing UC205 with pillow block P series,the new bearing nuit is UCP205. Due to the strong interchangeability of the spherical bearing with seat, the bearing core can be assembled freely in the bearing housing of the same specification and different shape,such as UCT205,UCF205,UCFL205.

Housing Bearing


Below Here is Mounted Ball Bearing Units No. For Your Reference :

Unit No.

Shaft Dia

Dimensions (mm)

Bolt Size
(mm)

Weight

d

H

L

J

A

N

N1

H1

Ho

B

S

A3

(kg)

(in)

(mm)

UCWP201

12

30.2

125

95

32

13

18

13

57

27.4

11.5

-

M10

0.72

UCWP202

15

30.2

125

95

32

13

18

13

57

27.4

11.5

-

M10

0.66

UCWP203

17

30.2

125

95

32

13

18

13

57

27.4

11.5

-

M10

0.66

UCP201

12

30.2

127

95

38

13

19

14

61

31

12.7

-

M10

0.76

UCP201-8

1/2

30.2

127

95

38

13

19

14

61

31

12.7

-

M10

0.76

UCP202

15

30.2

127

95

38

13

19

14

61

31

12.7

-

M10

0.74

UCP202-9

9/16

30.2

127

95

38

13

19

14

61

31

12.7

-

M10

0.74

UCP202-10

5/8

30.2

127

95

38

13

19

14

61

31

12.7

-

M10

0.74

UCP203

17

30.2

127

95

38

13

19

14

61

31

12.7

-

M10

0.72

UCP203-11

11/16

30.2

127

95

38

13

19

14

61

31

12.7

-

M10

0.72

UCP204

20

33.3

127

95

38

13

19

14

64

31

12.7

46.4

M10

0.70

UCP204-12

3/4

33.3

127

95

38

13

19

14

64

31

12.7

46.4

M10

0.70

UCP205

25

36.5

140

105

38

13

19

15

71

34.1

14.3

48

M10

0.76

UCP205-14

7/8

36.5

140

105

38

13

19

15

71

34.1

14.3

48

M10

0.76

UCP205-15

15/16

36.5

140

105

38

13

19

15

71

34.1

14.3

48

M10

0.76

UCP205-16

1

36.5

140

105

38

13

19

15

71

34.1

14.3

48

M10

0.76

UCP206

30

42.9

160

121

44

17

21

16

82

38.1

15.9

52

M14

1.25

UCP206-17

1-1/16

42.9

160

121

44

17

21

16

82

38.1

15.9

52

M14

1.25

UCP206-19

1-3/16

42.9

160

121

44

17

21

16

82

38.1

15.9

52

M14

1.25


We also can provide other brand bearing housing such as ASAHI Pillow Block Bearing.


UCP204 Bearing Housing Have Widely Applications:

Bearing housing with compact structure, convenient loading and unloading, perfect sealing, suitable for simple support are often used in below area:

1)Agriculture,

2)Light textile,

3)Mining,

4)Food &beverage,

5)Pharmaceutical,

6)Chemical processing,

7)Printing,

8)Dyeing,

9)Various kinds of conveying and rolling devices.
