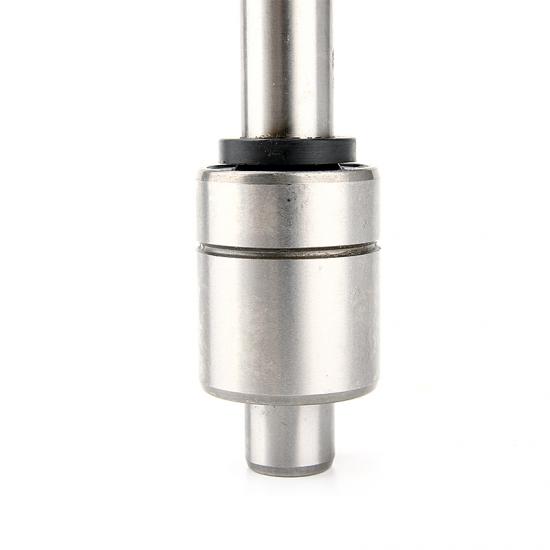

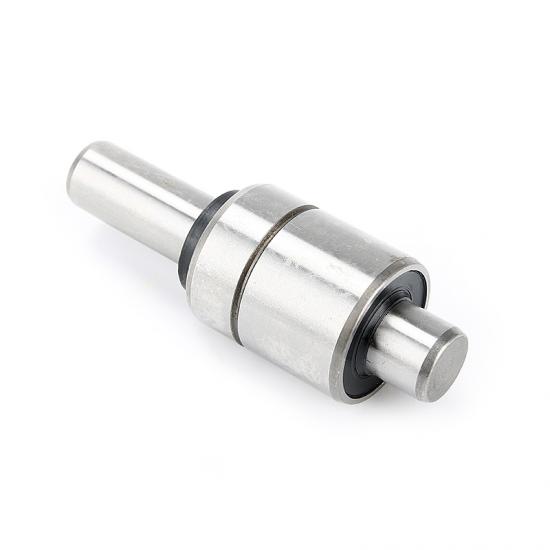

WS2511 Water Pump Bearing

15.918*25*60 *55*127mm WS2511 water pump bearing are produced with Chrome steel Gcr15 ,we can provide sample for you .

item no.:
WS2511
lead time:
7 days
product orgin:
China ,Shanghai
shipping port:
NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
MOQ:
100

products details

Specifcation :

Bearing No.: WS2511

Shell Material: Steel with NBR rubber

Bearing Race Material: Chrome Steel Gcr15

Shaft material: Gcr15

Cage Material: GRPA66

Steel Ball Material: Chrome steel

Roller Material: Chrome steel

Grease: 35% to 40%

Type: Combined double row bearings.

Hardness for Bearing: HRC59 to 62

Hardness for Steel Ball: HRC59 to 62

Package: 1*1 poly bag+ outer carton+Composite Wooden Pallet

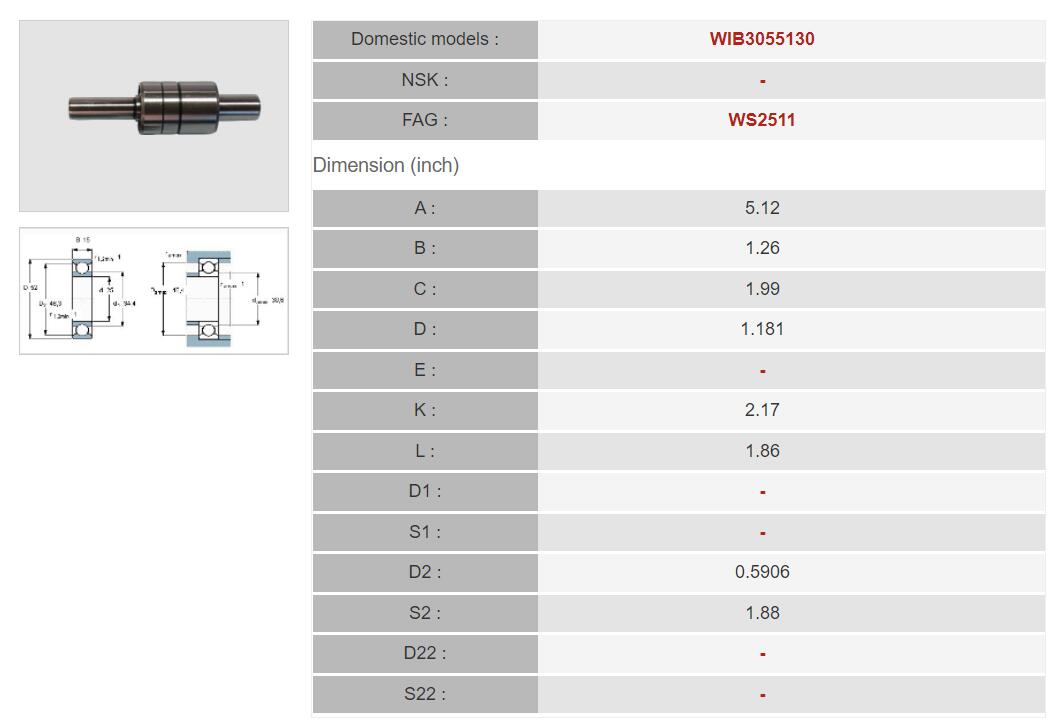

WS2511 Bearing

We can produe other different water pump bearing for you :

WB double-row ball water pump spindle bearings

WR simple-row ball and simple roller water pump spindle bearings

WB-C double-row ball water pump spindle(angular contact)

WR-C simple-row ball and simple roller water pump apindle bearings(four-point angular contact)

BEARINGNO			d	D	A	B		C
WIB1630069	W2272	885198	15.918	30	69.09I	4.06	39	26.14
WIB1630073	W2289	885154	15.918	30	73.41	3.96	39	30.56
WIB1630073	W2289-	88	15.918	30	73.41	3.96	39	30.56
	3T1545
		5154BX2R1
WIB1630083	W2325	885165	15.918	30	82.55I	3.96	39	39.7
WIB1630084D	W2334S	885122	15.918	30	84.4	13	39\|	32.51
WIB1630085W	WS2332-	885342	15.918	30\|	84.51	17.25	39	40.26
WIB1630085W	1	885342	15.918	30\|	84.51	17.25	39	40.26
WIB1630088	WS2346-	885319	15.918	30	87.99	18.01	39	43
WIB1630092D	WS2364-	885477	15.918	30	92.48	25.12\|	39	28.47
WIB1630092D	1S	885477	15.918	30	92.48	25.12\|	39	28.47
WIB1630092D	WS2364S	885477	15.918	30	92.48	25.12	39	28.47
WIB1630093	WS2366	885330	15.918	30	92.99	18.49	39	35.61
WIB1630095D	WS2384	885110	15.918	30	97.64	19.05	39	39.7
WIB1630098	WS2385	885307	15.918	30I	97.99	17.12	39	42.09
WIB1630098	WS2385-	385461	15.918	30	97.79	4.14	39	54.76
WIB1630098	2TJ1427	385461	15.918	30	97.79	4.14	39	54.76
W1B1630098	W52385-	885307	15.918	30\|	97.99	17.02	39	42.09
W1B1630098	TJ2469	885307	15.918	30\|	97.99	17.02	39	42.09
W1B1630098D	W23875	854874	15.918	30]	98.43	22.48	39	37.06
WIB1630101W]	W2398	885538	15.918	30	101.19	27.38	39	34.93
WIB1630101D2	W2398-	885467	15.918	30	101.24/2	8.96	39	33.4
WIB1630101D2	15	885467	15.918	30	101.24/2	8.96	39	33.4
WIB1630102	W3399	885321	15.918	30	101.5	17.5	39	45.11
WIB1630102	W3399-1	885321	15.918	30	101.5	17.5	39	45.11
WIB1630102D	W2403-2j	885147	15.918	30	102.39	22.23	39	41.28I
WIB1630102D	W2404S	885147	15.918	30	102.39	22.23	39	41.28
WIB1630103W	W2406-1	885140	15.918	30	103.2	23.42	39	40.89
WIB1630103W	W2406-2	885140	15.918	30	103.2	23.42	39	40.89
WIB1630104D	W2407S	885356	15.918	\|30	103.51	19.56	39	45.06
WIB1630105W	W2414-2	885159	15.918	30]	105.18	23.83	394	2.47
W1B1630106W	W2417-2	885097	15.918	30]	105.97	20.65	39]	46.43
WIB1630106D	W2418SI	885439	15.918	30	106.17	25.12	39	42.16
WIB1630109W	W2428-1	88511D	15.918	30	108.742	7.38	39	42.47
WIB1630110	W2432	885305	15.918	30	110.21	23.75	39	47.55
WIB1630110W	W2433-2	885524S	15.918	30	109.98	28.93	39	42.16
WIB1630110W	W2434	885332	15.918	30	110.39	21.36	39	50.14
WIB1630112W	W2439	885167	15.918	30	111.51	23.8	39	48.82
IWIB1630112W	W2440-1	885098	15.918	30	111.91	26.95	39	46.08
WIB1630112W	W2440-4	885167D	15.918	30	111.76	29.21	39	43.66
WIB1630112	W2440-	885327	15.918	30	111.9	930	394	3.1
WIB1630112	ss	885327	15.918	30	111.9	930	394	3.1

We produce Car water pump bearing with below details :

Roller and ball: bearing steel GCr15=SUJ2=100Cr6

Shaft and outer ring: carbon steel or bearing steel

Cage: PA66+25%GF

Seal: NBR(-40~+120), HNBR(-50~+180), FKM(-20~+250)

Grease: Kyodoyushi, Shell, Kluber, Esso, Chinese brand
