LFR5201KDD U Groove Track Roller Bearings 12x35x15.9mm LFR5201KDD U groove track roller bearings are produce with Chrome steel Gcr15 ,we can provide sample for you test . more
SG25 U Groove Ball Track Guide Bearings 8*30*14mm SG25 bearings are produce with Chrome steel Gcr15 ,we can provide sample before order . more
S51106 Thrust Ball Bearings 30x47x11mm S51106 Stainless steel thrust ball bearing,produce with stainless steel ,we can provide with OEM service for you . more
35x86.5x50mm 200752307 M produce with Chrome steel Gcr15 and copper cage ,we can print with customer 's logo .
item no.:
200712201Mlead time:
3 daysproduct orgin:
Chinashipping port:
NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAIMOQ:
10200752307 M Eccentric Bearing Specification :
Dimension :
Inner diameter :35mm
Outer diameter:86.5mm
Height:50mm
Material : Chrome steel Gcr15+copper cage
Double rows

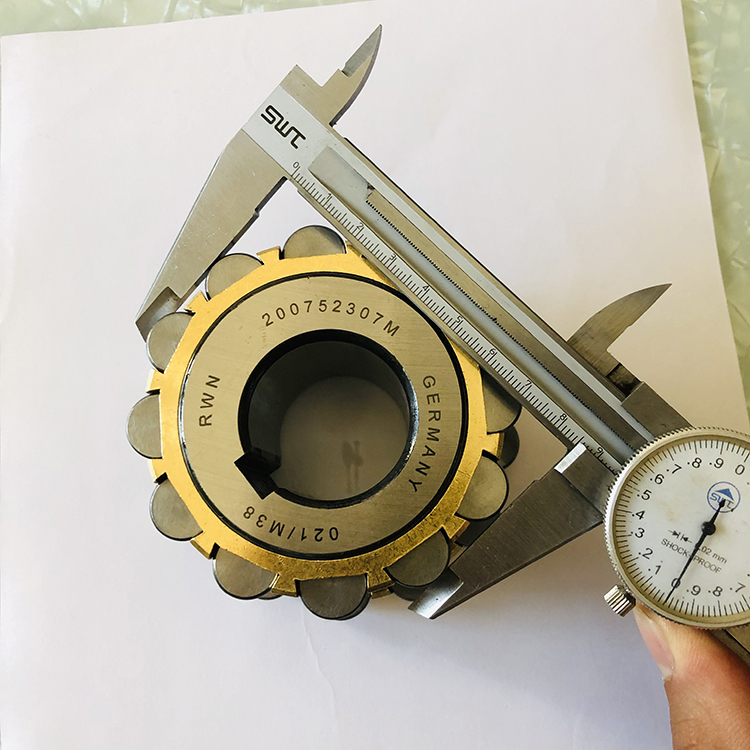

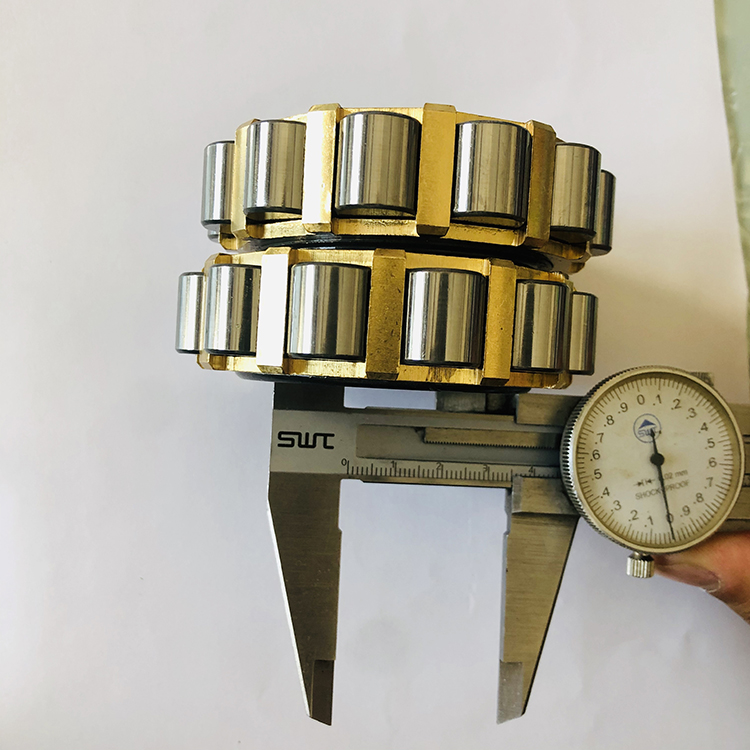

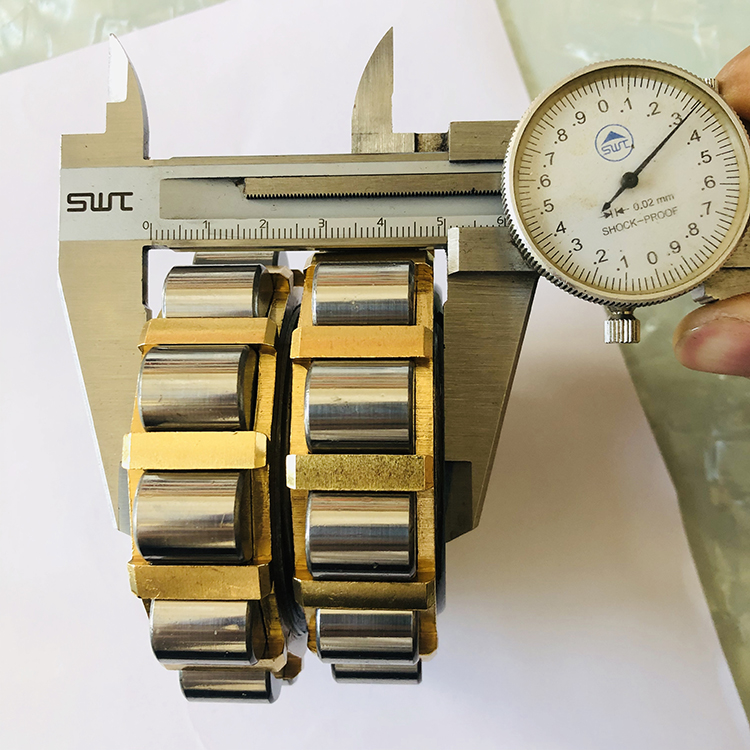

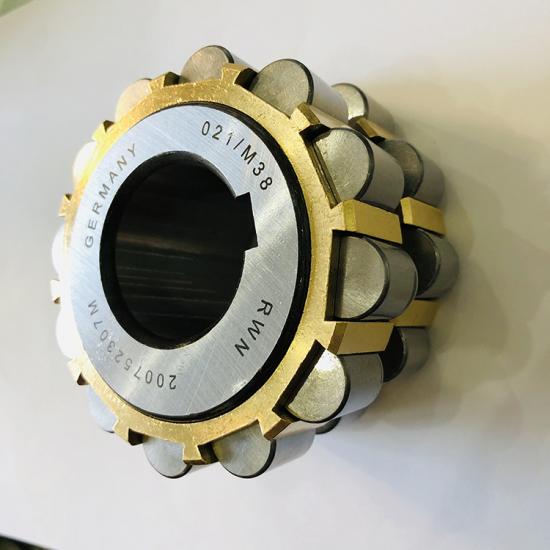

200752307 Eccentric Roller Bearings Picture:
 |
 |
 |
Double Row Eccentric Bearing can used for Reducer, petroleum chemical industry, textile, metallurgy, mines. Steel mills,Heavy machinery, etc
We can Produce other Double Row Eccentric Bearing for you :
| Bearing NO. | Dimension (mm) | Rated Load (N) | Limited Speed | Keyway | Weight (kg) | |||||||
| (rpm) | ||||||||||||
| d | D | L | r | e | C | CO | Grease | Oil | b | t1 | ||
| 300752906 | 28 | 70 | 36 | 1.3 | 3 | 82300 | 98300 | 7000 | 9000 | 8 | 3.3 | 0.73 |
| 400752906 | 70 | 36 | 1.3 | 4 | 82300 | 98300 | 7000 | 9000 | 8 | 3.3 | 0.73 | |
| 500752906 | 70 | 36 | 1.3 | 5 | 82300 | 98300 | 7000 | 9000 | 8 | 3.3 | 0.73 | |
| 80752906K | 95 | 54 | 1.3 | 0.75 | 162000 | 207000 | 5300 | 6700 | 8 | 3.3 | 2.1 | |
| 100752906K | 95 | 54 | 1.3 | 1 | 162000 | 207000 | 5300 | 6700 | 8 | 3.3 | 2.1 | |
| 150752906K | 95 | 54 | 1.3 | 1.5 | 162000 | 207000 | 5300 | 6700 | 8 | 3.3 | 2.1 | |
| 200752906K | 95 | 54 | 1.3 | 2 | 162000 | 207000 | 5300 | 6700 | 8 | 3.3 | 2.1 | |
| 300752906K | 95 | 54 | 1.3 | 3 | 162000 | 207000 | 5300 | 6700 | 8 | 3.3 | 2.1 | |
| 350752906K | 95 | 54 | 1.3 | 3.5 | 162000 | 207000 | 5300 | 6700 | 8 | 3.3 | 2.1 | |
| 400752906K | 95 | 54 | 1.3 | 4 | 162000 | 207000 | 5300 | 6700 | 8 | 3.3 | 2.1 | |
| 500752906K | 95 | 54 | 1.3 | 5 | 162000 | 207000 | 5300 | 6700 | 8 | 3.3 | 2.1 | |
| 80752307 | 35 | 86.5 | 50 | 1.8 | 0.75 | 143000 | 180000 | 5600 | 7000 | 10 | 3.3 | 1.5 |
| 90752307 | 86.5 | 50 | 1.8 | 0.85 | 143000 | 180000 | 5600 | 7000 | 10 | 3.3 | 1.5 | |
| 100752307 | 86.5 | 50 | 1.8 | 1 | 143000 | 180000 | 5600 | 7000 | 10 | 3.3 | 1.5 | |
| 130752307 | 86.5 | 50 | 1.8 | 1.25 | 143000 | 180000 | 5600 | 7000 | 10 | 3.3 | 1.5 | |
| 150752307 | 86.5 | 50 | 1.8 | 1.5 | 143000 | 180000 | 5600 | 7000 | 10 | 3.3 | 1.5 | |
| 200752307 | 86.5 | 50 | 1.8 | 2 | 143000 | 180000 | 5600 | 7000 | 10 | 3.3 | 1.5 | |
| 250752307 | 86.5 | 50 | 1.8 | 2.5 | 143000 | 180000 | 5600 | 7000 | 10 | 3.3 | 1.5 | |
| 300752307 | 86.5 | 50 | 1.8 | 3 | 143000 | 180000 | 5600 | 7000 | 10 | 3.3 | 1.5 | |
| 350752307 | 86.5 | 50 | 1.8 | 3.5 | 143000 | 180000 | 5600 | 7000 | 10 | 3.3 | 1.5 | |
| 400752307 | 86.5 | 50 | 1.8 | 4 | 143000 | 180000 | 5600 | 7000 | 10 | 3.3 | 1.5 | |
| 450752307 | 86.5 | 50 | 1.8 | 4.5 | 143000 | 180000 | 5600 | 7000 | 10 | 3.3 | 1.5 | |
| 500752307 | 86.5 | 50 | 1.8 | 5 | 143000 | 180000 | 5600 | 7000 | 10 | 3.3 | 1.5 | |
| 550752307 | 86.5 | 50 | 1.8 | 5.5 | 143000 | 180000 | 5600 | 7000 | 10 | 3.3 | 1.5 | |
| 600752307 | 86.5 | 50 | 1.8 | 6 | 143000 | 180000 | 5600 | 7000 | 10 | 3.3 | 1.5 | |
| 650752307 | 86.5 | 50 | 1.8 | 6.5 | 143000 | 180000 | 5600 | 7000 | 10 | 3.3 | 1.5 | |
| 700752307 | 86.5 | 50 | 1.8 | 7 | 143000 | 180000 | 5600 | 7000 | 10 | 3.3 | 1.5 | |
| 100752307K | 113 | 62 | 1.8 | 1 | 22000 | 291000 | 4500 | 5600 | 10 | 3.3 | 3.5 | |
| 130752307K | 113 | 62 | 1.8 | 1.25 | 22000 | 291000 | 4500 | 5600 | 10 | 3.3 | 3.5 | |
| 150752307K | 113 | 62 | 1.8 | 1.5 | 22000 | 291000 | 4500 | 5600 | 10 | 3.3 | 3.5 | |
previous :
607YSX (11-17) Single Row Eccentric Roller Bearingnext :
200712201M Single Row Eccentric Bearing
180*380*126mm 22336MB spherical Roller Bearing produce with Chrome steel and brass cage ,we are produce bearings with P6 grade .
19X33X11mm 607 YSX Eccentric Bearings are produce with Chrome steel with nylon cage ,the surface are smooth ,we can produce sample for you test before order .
25*98*27 mm B005AD045 bearing with high temperature raw material can working at high temperature environment Conveyor Roller.
360*650*232mm 23272 CAK/W33 with chrome steel and brass cage can used for dryer.
50*90*23mm 22210MB W33 Bearing are produce with Chrome steel Gcr15 and copper cage ,we can produce high quality and competitive price for you .
100*180*46mm Spherical bearing 22220 MB/W33 C3 bearing,we have bearings in stock now .
