20X47X17.7mm 204 KRR bearings are produce with Chrome steel Gcr15 ,we have this bearings in stock now ,free sample can be provide for you test first .
item no.:
204KRRlead time:
30 daysproduct orgin:
China ,Shanghaishipping port:
Ningbo,Shanghai,Guangzhou,QingdaoMOQ:

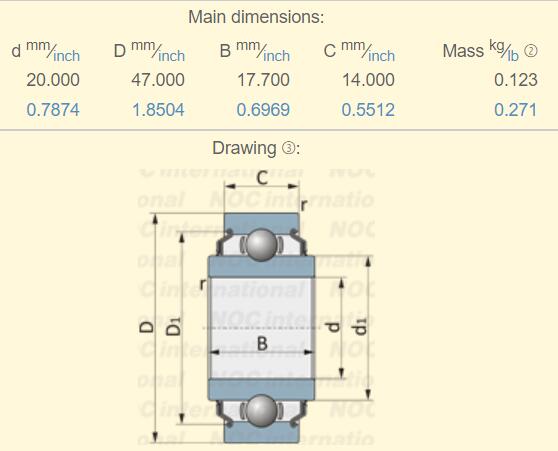

100204KRR Ball Insert Bearing - Round Bore, 20 mm ID, 47 mm OD, 17.7 mm Width, Press Fit Introduction :
Inner Ring d :20 mm
Outer ring D :47 mm
Height B： 17,7 mm
Weight：0,12 kg / PC
Dynamic load rating (radial)Cr:13600 N
Static load rating (radial)C0r :6600 N

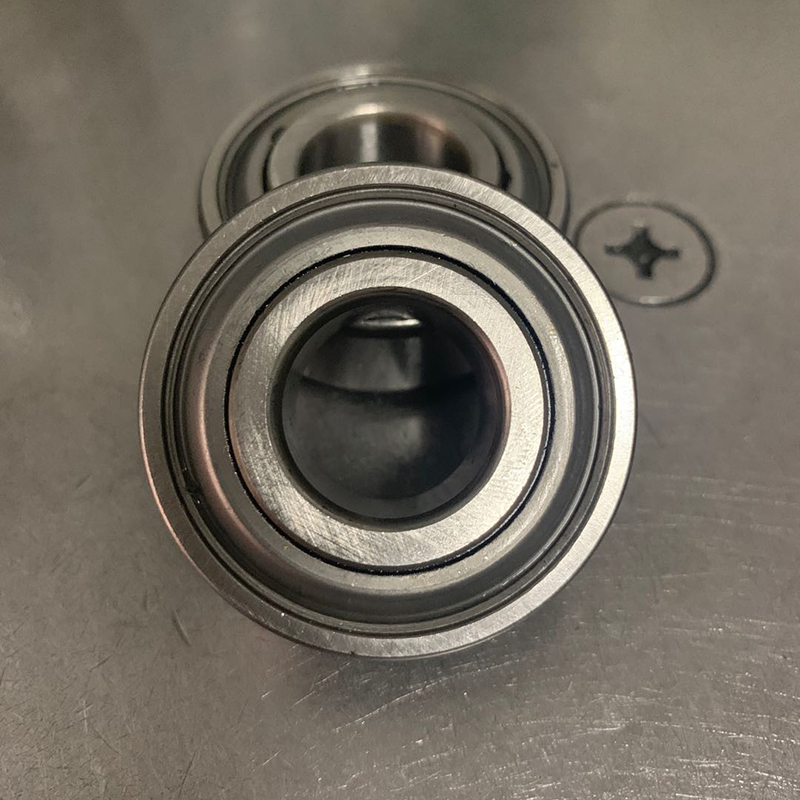

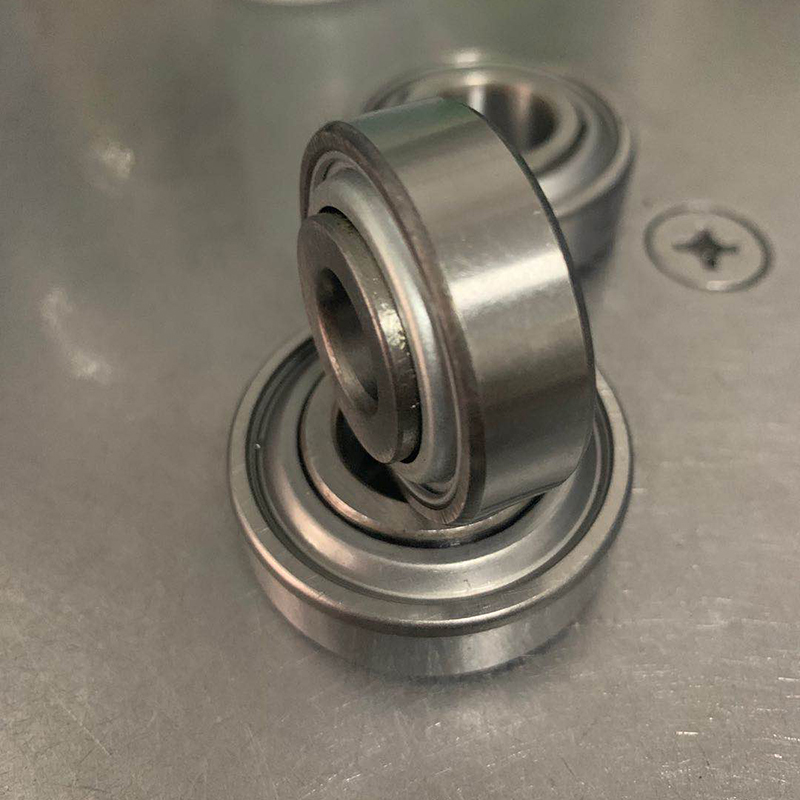

Round Bore Bearings Picture :
We have 204KRR bearings production all the time ,can with fast delivery time ,for detail information pls contact with us directly at seven@TMB Bearings.com
 |
 |
|
Bearing No. |
Type |
Dimensions mm in. |
||||
|
H |
d1 |
D |
C |
B |
||
|
204KRR2 |
1 |
17.653 |
20.24 |
47 |
14 |
20.96 |
|
204KRRB2 |
2 |
17.653 |
20.24 |
47 |
14 |
20.96 |
|
204KPPB2 |
4 |
17.653 |
20.24 |
47 |
14 |
20.96 |
|
205KPP2 |
3 |
22.25 |
25.7 |
52 |
15 |
25.4 |
|
205KRR2 |
1 |
22.25 |
25.7 |
52 |
15 |
25.4 |
|
205KPPB2 |
4 |
22.25 |
25.7 |
52 |
15 |
25.4 |
|
205KRRB2 |
2 |
22.25 |
25.7 |
52 |
15 |
25.4 |
|
206KRR6 |
1 |
25.425 |
29.26 |
62 |
16 |
24 |
|
206KRRB6 |
2 |
25.425 |
29.26 |
62 |
16 |
24 |
|
G207KPPB2 |
4 |
28.6 |
32.97 |
72 |
19 |
37.7 |
|
207KRRB9 |
2 |
28.6 |
32.97 |
72 |
17 |
37.7 |
|
207KRRB12 |
2 |
28.6 |
32.97 |
72 |
17 |
25 |
|
207KPPB3 |
4 |
31.775 |
36.65 |
72 |
17 |
37.7 |
|
207KPP3 |
3 |
31.775 |
36.65 |
72 |
17 |
25 |
|
GW208PPB22 |
4 |
31.877 |
36.83 |
80 |
21 |
36.5 |
|
W208KRRB6 |
2 |
34.95 |
40.3 |
80 |
21 |
36.5 |
|
W208PPB16 |
4 |
31.775 |
36.65 |
80 |
18 |
36.5 |
|
W208PP21 |
3 |
31.775 |
36.65 |
80 |
18 |
36.5 |
|
G209KPPB2 |
4 |
38.125 |
43.94 |
85 |
19 |
30 |
|
209KRRB2 |
2 |
38.125 |
43.94 |
85 |
19 |
30 |
