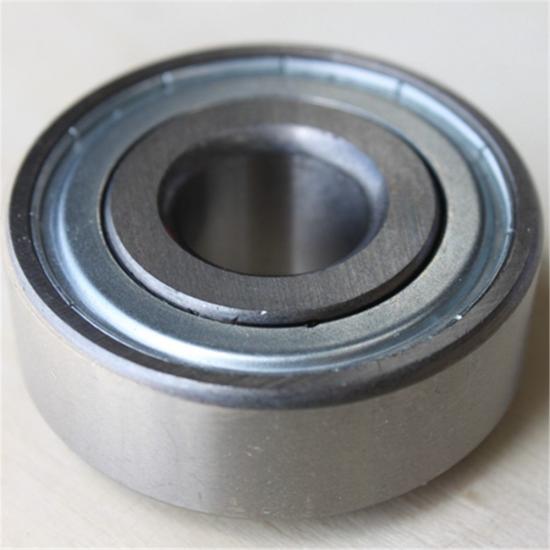

Farming Planter Bearing 204RY2 with round bore and it is belong to single row deep groove ball bearing and these bearings are produce with Chrome steel Gcr15 and the dimension is 16.027 x 45.225 x 18.669 / 15.494 mm.
item no.:
204RY2lead time:
30 daysproduct orgin:
China ,Shanghaishipping port:
Ningbo,Shanghai,Guangzhou,QingdaoMOQ:
100Farming Planter Bearings are with particularly thick-walled outer rings. In addition to high radial forces, these bearings can also support axial forces in both directions.
These bearings have high radial forces ,and the outer rings are with crowned or cylindrical outside surface design .,with this designs they can reduce the hareness the outside surface mating track and edge stresses.

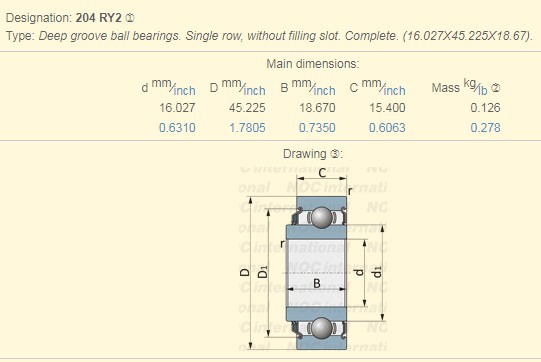

Farming Planter 204RY2 Introduction :
Material :Chrome steel
Dimensions :
BORE:0 .63" Round (16.027mm)
O.D. 1.78" Flat (45.225mm)
IR Width: 0.73" (18.670mm)
OR Width:0 .60"(15.4mm)
Weight : 0.278 kg
Other OEM Number : 204FGB, 300279B, 552-202

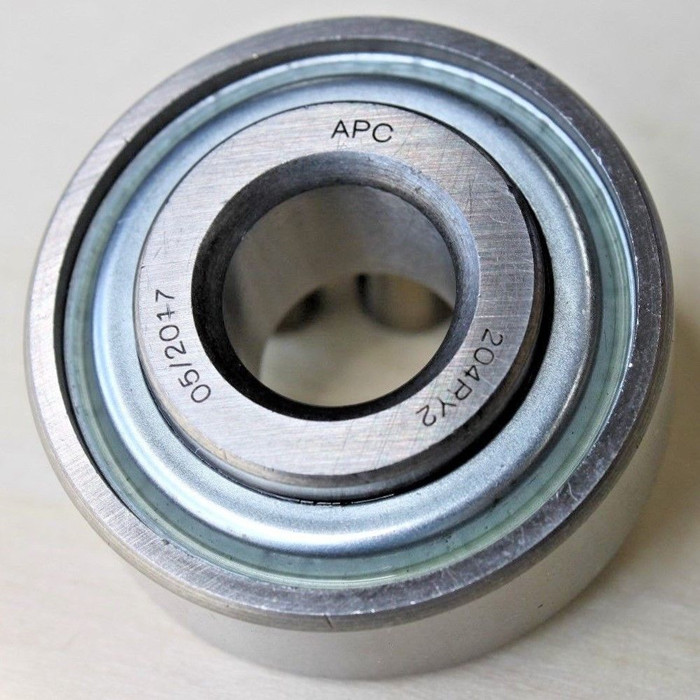

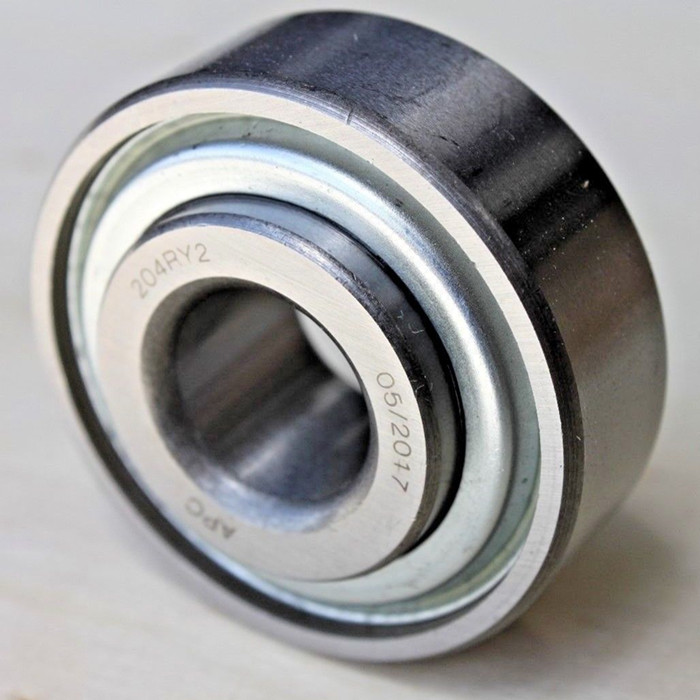

Agri Bearing 204RY2 Picture :
 |
 |
Agri Bearing 204RY2 Can Be Fits With :
John Deere: AA21480
International Harvester: 1268017C91 & 492757R91
Massey Ferguson: DG1645ARSLRSPZ
ZZ BEARING is Ag bearing manufacturer in China ,we can produce different bearings :

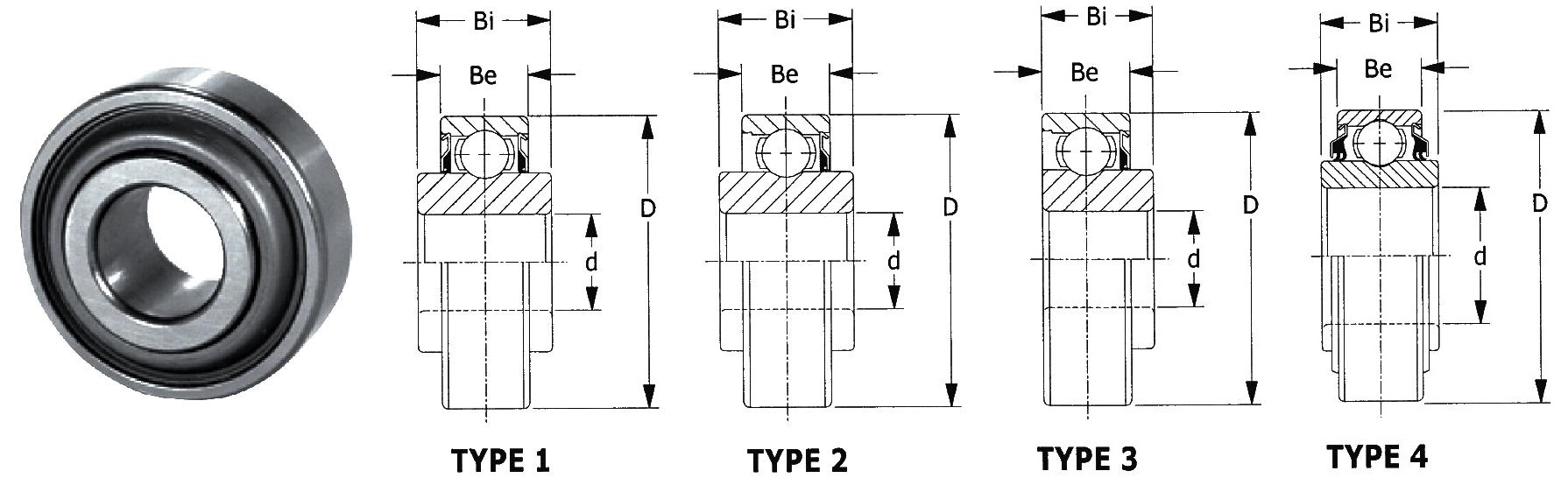

| Bearing No. | Type | d | D | Be | Bi | Wt. kg |
| mm | mm | mm | mm | approx. | ||
| 203-KRR-AH05 | 4 | 13 | 40 | 12 | 18.3 | 0.09 |
| 203KRR5 | 1 | 13.081 | 40 | 12 | 18.288 | 0.1 |
| 202-KRR | 4 | 15 | 35 | 11 | 14.4 | 0.05 |
| 203KR2 | 3 | 15.883 | 40 | 12 | 14 | 0.082 |
| 203-KRR-AH02 | 4 | 16.2 | 40 | 12 | 18.3 | 0.07 |
| 203KRR2 | 1 | 16.26 | 40 | 12 | 18.288 | 0.073 |
| BB203KRR2* | 1 | 16.26 | 40 | 12 | 18.288 | 0.073 |
| BB203KRR2FD^ | 4 | 16.26 | 40 | 12 | 18.288 | 0.077 |
| 203KRR7 | 1 | 17 | 40 | 12 | 16.612 | 0.082 |
| 203-KRR | 4 | 17 | 40 | 12 | 18.3 | 0.07 |
| 204KR2 | 3 | 19.063 | 45.225 | 15.494 | 15.494 | 0.107 |
| 202NPP9 (202FFH8) | 12.827 | 38.1 | 11 | 11 | 0.064 | |
| 202RRE | 15 | 35 | 11 | 22.352 | 0.061 | |
| CF5202-2RST-8 | 12.7 | 38.2 | 15.9 | 15.9 | 0.078 | |
| 203JD | 17 | 40 | 12 | 14 | ||
| 203KRR3 | 15.951 | 50.8 | 15 | 15 | ||
| 203KRR6 | 16.256 | 47 | 12 | 18.288 | 0.13 | |
| 203NPP9 | 15.9 | 40 | 12.95 | 12.95 | ||
| 5203KYY2 | 16.256 | 40 | 39.12 | 44.12 | ||
| 204JY3 | 16.053 | 45.225 | 15.494 | 18.669 | 0.118 | |
| 204RY2 | 16.027 | 45.225 | 15.494 | 18.669 | 0.118 | |
| 204KRD4 | 16 | 47 | 14 | 17.5 | 0.135 | |
| 204RR6 | 19.063 | 45.225 | 15.49 | 15.49 | ||
| 204RR7 | 19.18 | 45.225 | 15.49 | 15.49 | ||
| 204RR8 | 16.03 | 45.225 | 15.49 | 15.49 | ||
| 204KRR14 | 1 | 16.027 | 47 | 15 | 18.288 | 0.142 |
| Z9504-2RST | 19.05 | 45.225 | 15.494 | 15.494 | 0.12 | |
| 205KRP2 | 19.202 | 52 | 15 | 21.107 | ||
| 205KR3 | 19.08 | 52 | 17.78 | 16.26 | ||
| 205KRR6 | 13.081 | 52 | 15 | 34.925 | ||
| 205KRR7 | 13 | 52 | 15 | 38.1 | 0.504 | |
| 205KP6 | 4 | 19.202 | 52 | 17.78 | 23.393 | |
| 205KP8 | 19.2 | 52 | 15 | 18.288 | ||
| 205KYY3 | 19.202 | 63.5 | 25.4 | 26.975 | ||
| 205PP8 | 12.964 | 52 | 15 | 34.925 | ||
| 205PP9 | 19.202 | 52 | 15 | 34.925 | ||
| 205PP10 | 16 | 52 | 15 | 34.925 | ||
| 205PP12 | 16.129 | 52 | 15 | 38.1 | ||
| 206KPP16 | 19.177 | 62 | 16 | 24 | ||
| SL 5316 2T | 16 | 53.086 | 18.288 | 19.4 |
202NPP9 with size 0.505" x 1.5" x 0.4331" are made with Chrome steel material .
203KRR2 bearing with round bore and the size is0.6400 in ID, 40 mm OD, 0.7200 in Width and this bearings are produce with Chrome steel material .
203KRR5 agbearing with round bore and the size 0.515" x 40mm x 12mm x 0.72" and this bearings are produce with Chrome steel material .
203JD bearing is one of radial insert bearing ,these bearings are produce with material Chrome steel Gcr15 ,and can widely use for agricultural parts such for John Deere 7300 Planter Wheel.
20X47X17.7mm 204 KRR bearings are produce with Chrome steel Gcr15 ,we have this bearings in stock now ,free sample can be provide for you test first .
13.081*40*12mm Q203PPAH05 Bearing can used for Seeding Machine .
