25mm Steel U Groove Track Roller LFR5206-20

LFR5206-20 KPP ,NPP Track Bearing With Ball Diameter:20 mm*Bore Diameter:25 +0/-0.008*Outer Diamter:72 mm +0/-0.05 *Inner Ring Width:25.8 mm +0/-0.012*Outer Ring Width:23.8 mm*Dynamic Load Rating:22 kN*Static Load Rating:16 kN The Running Accuracy:0.02 mmGrease:Shell Alvania EP2 Mass:0.43 kg

item no.:
LFR5206-20
lead time:
7 days
product orgin:
China ,Shanghai
shipping port:
Ningbo ,Shanghai,Guanzhou
payment:
30% TT in advance ,70% TT after finish produc
MOQ:
1

products details

LFR Series U groove track rollers bearings are the most widely-use and economy bearings among the linear motion track rollers, and they can suit to the cylindrical track.

There are two contact points between the roller and track, so the contact function is favorable.

Rollers feature double row angular contact ball bearing in its internal structure design and a thick-walled outer ring, so rollers can accommodate higher loads.

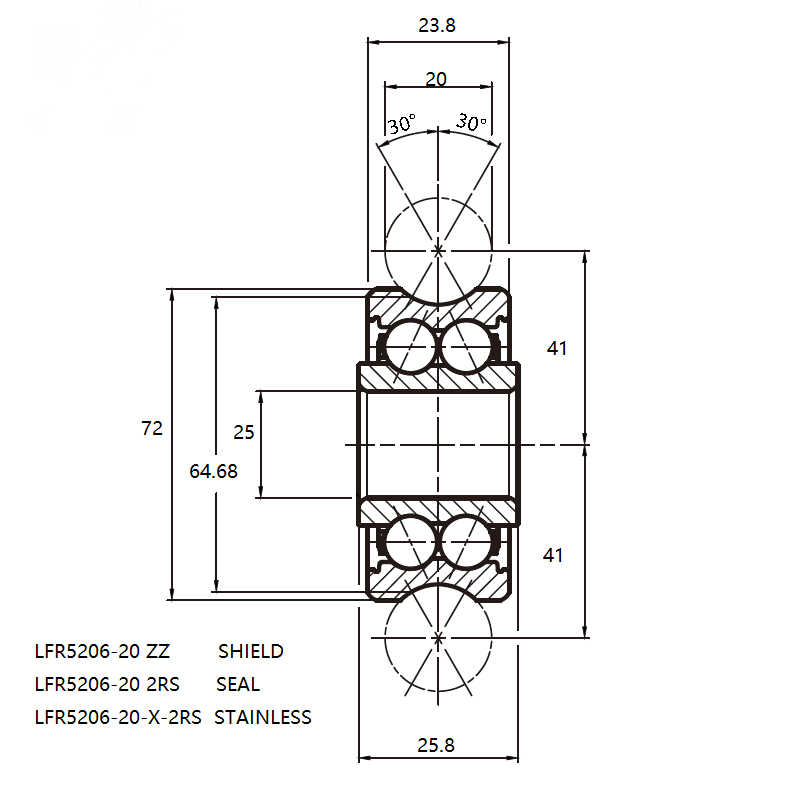

U Groove Track Roller LFR5206-20 Specification :

Bearing	LFR5206-20 NPP ,LFR5206-20 KDD
Material	Chrome steel ,stainless steel
Size	257225.80mm
Cage Material	PA66
Ball Grade	G10 Grade
Closure	KPP (2RS),KDD(ZZ)
Application	Linear motion
Service	Customized

LFR5206-20 KDD BEARING

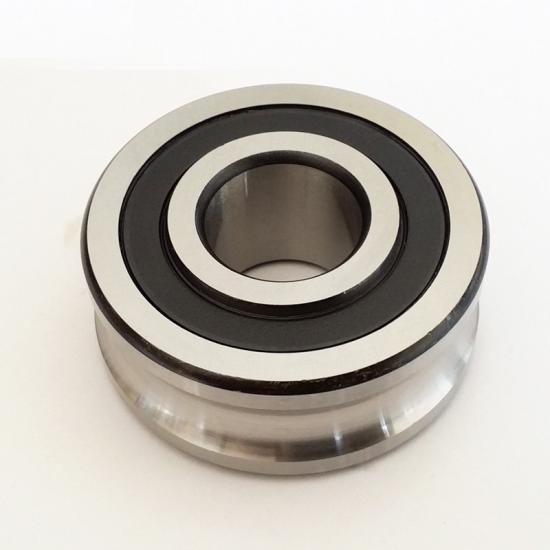

U Groove Track Roller Bearing Pictures:

U Groove Track Roller Bearing Catalogue Number:

Bearing No.	Dimensions (mm)							Weight
	dw	d +0/-0.008	D+0/-0.05	C	B +0/-0.12	A	rs	kg
LFR50/4-4	4	4	13	6	7.55	8.04	0,2	0,007
LFR50/5-4	4	5	16	7	8	9	0,2	0,01
LFR50/5-6	6	5	17	7	8	10,5	0,2	0,01
LFR50/6-6	6	6	19	8,5	9	11,5	0,3	0,013
LFR50/8-6	6	8	24	11	11	14	0,3	0,02
LFR50/8-8	8	8	24	11	11	14,75	0,3	0,02
LFR5201-10	10	12	35	15,9	15,9	20,65	0,3	0,08
LFR5201-12	12	12	35	15,9	15,9	21,75	0,3	0,08
LFR5201-10.40	10	12	39,9	18	20	22	0,3	0,12
LFR5201-14	14	12	39,9	18	20	24	0,3	0,1
LFR5202-12-ZZ	12	15	45	15,9	15,9	26,5	0,6	0,12
LFR5204-16-ZZ	16	20	52	20,6	22,6	31,5	0,6	0,23
LFR5206-20	20	25	72	23,8	25,8	41	0,6	0,435
LFR5206-25	25	25	72	23,8	25,8	43,5	0,6	0,425
LFR5207-30	30	30	80	27	29	51	1	0,660
LFR5208-40	40	40	98	36	38	62,5	1	1,360
LFR5301-10	10	12	42	19	19	24	0,6	0,130
LFR5301-20	20	12	42	19	19	28	0,6	0,125
LFR5302-10	10	15	47	19	19	26,65	1	0,163
LFR5308-50	50	40	110	44	46	72,5	1,1	1,400

We can provide Custom Service For U Groove Bearing Wheel,Below Here Is Bearing We Produced Before

Bearing Name	Bearing Series	Can Be Used For	Detail Application	closure	Bearings Material	Cage Material	Grease	Temp. Range
Standard Track Rollers	LFR	General purpose Factory floor conditions	Automation Automative Woodworking Pringting Packaging Paper/Textile	Seal Shield	52100	Nylon 66	Shell Alvania EP2	-30ºC to +100ºC
V Guide wheels stainless	SLFR	Corrosive	Medical Laboratory Food & Beverage	Seal Shield	440C stainless	Nylon 66	Shell Alvania EP2	-30ºC to +100ºC
Studded Polymer Track Roller	SLFR…P	Corrosive Low noise requirements	Electronics Medical Laboratory	Shield	Polymer 440C stainless	304 stainless	Kluberplex BEM034-132	-20ºC to +120ºC
Vacuum Track Roller	SLFR…VM	Vacuum environments	Material science Life sciences	Shield	440C stainless	304 stainless	Lubcon Ultrathern 2000	-35ºC to +250ºC
Washdown Track Roller	SLFR-WD	Washdown Hygienic environments	Food processing Food packaging	Double Seal	440C stainless	Nylon 66	FDA approved Klubersynth UH1 14-151	-30ºC to +100ºC
Food Beverage Pharma Track Roller	SLFR…FH	Washdown Food equipment Pharma equipment	Food processing Food packaging Pharmaceutical	Seal Shield	440C stainless	Nylon 66	FDA approved Klubersynth UH1 14-151	-30ºC to +80ºC
High Temp. Track Roller	SLFR…227	High temp Corrosive	Baking Welding Plasma cuttles	Shield	440C stainless	304 stainless	Hrytox GPL227	-30ºC to +260ºC
Low Temp. Track Roller	SLFR…300	Low temp. Subzero Corrosive	Aerospace Refrigeration Flash freezing	Shield	440C stainless	304 stainless	Kluber Isoflex PDL 300A	-70ºC to +110ºC

U Groove Track Rollers Application :

Industrial machinery: printing machinery, paper machinery, automation machinery, textile machinery, vending machines, woodworking machinery, packaging machinery

• Electronic equipment: mechanical arm, measuring equipment, X-X platform, medical equipment, factory automation equipment

• Rotation machinery: metal heat treatment designed nuclear reactor, brakes, etc

• Aerospace industries: aircraft flaps brakes, seat brakes, missiles, airport apparatus and other equipment

• Other: radio antenna brakes, door and window control, medical bed control, parking facilities, machine tool doors, laboratory automation, etc.

BEARING APPLICATION
