LV20/7 LV20/7ZZ V Groove Track Rollers Bearings

new products

LV20/7 LV20/7ZZ V Groove Track Rollers Bearings

LV 20/7 V Groove Bearings With Size 7*22*11mm are widely use in  industrial robot, cutting equipment, mobile guide rail, production lines.

  • item no.:

    LV20/7 LV20/7ZZ
  • MOQ:

    1
products details

LV series bearings can be widely used in cylindrical guide rails or 120° V-shaped guide rails. LV series bearings have strong adaptability to the size of guide rails. Each guide can be fitted with a wide range of guide rail diameters, which can be widely used in heavy-duty guide rails. Mobile equipment, straightening machinery, etc.


V Groove Guide Bearing Specification :


Type:V groove bearings

Model:LV20/7 , LV20/7ZZ

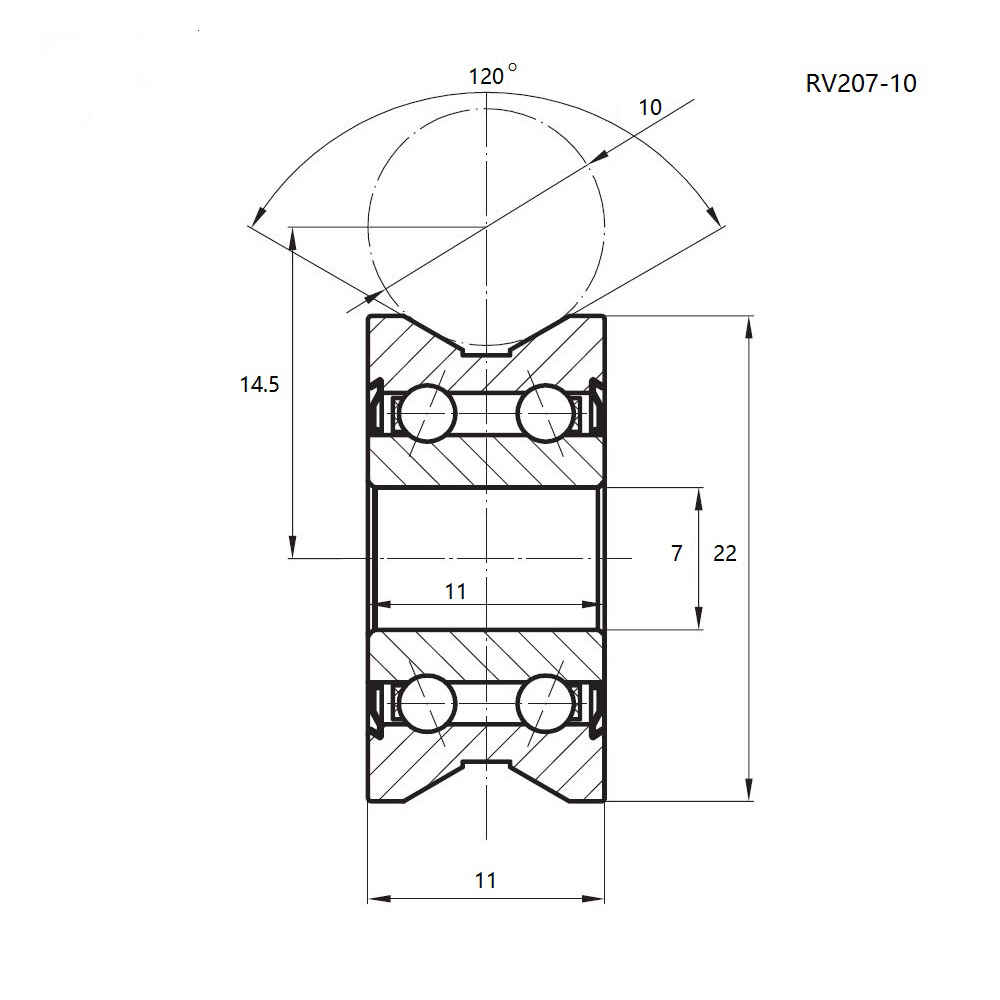

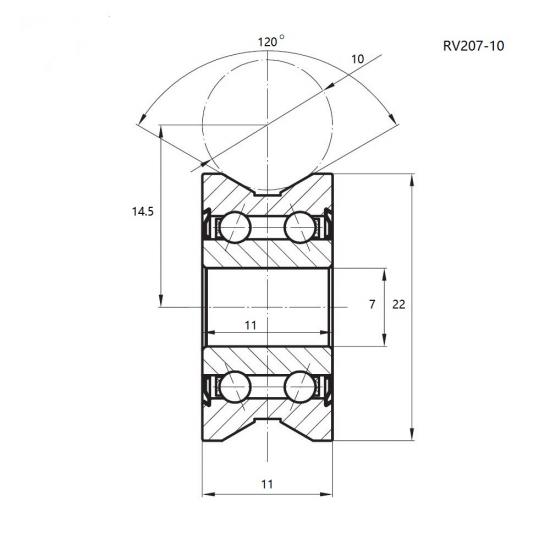

Size :d :7 mm*D22mm*11mm

Material :Chrome steel Gcr15 ,Stainless steel

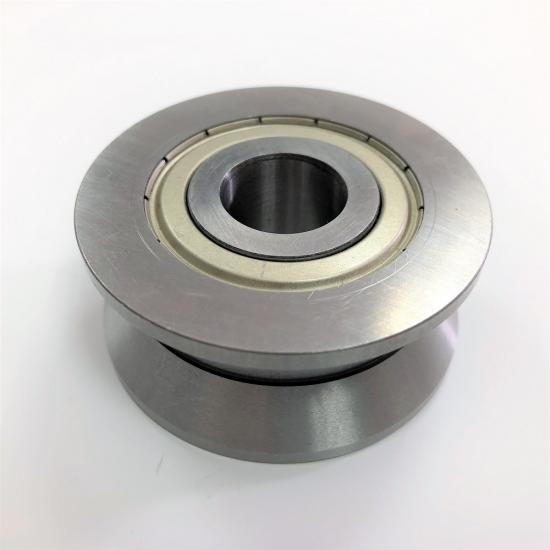

Lv20/7zz V Groove Roller Bearing

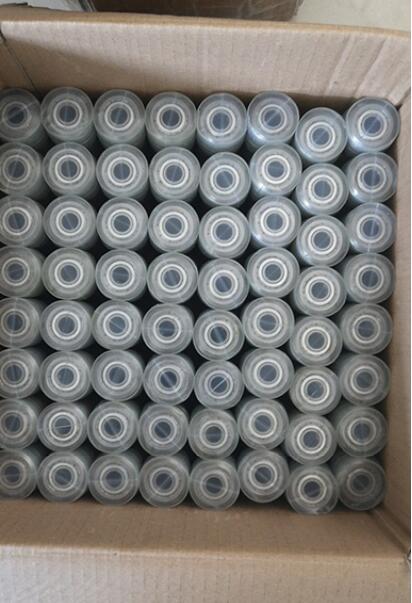

V Groove Bearing Track Packing :

Normal Packing : 10 PCS /plastic tube +standard export carton

Or as your requirements



RM2 BEARINGS



LV Series Guide Bearings Have Below Features:

1. Low resistance, long service life and wide application: The V-shaped surface of LV series guide bearing is finely ground and the surface roughness reaches Ra0.32. The V-groove of the bearing is parallel to the mounting plane of the inner ring. When working, the force between the bearing and the cylindrical guide rail is stable, and the friction resistance is small.

2. Simple and convenient installation: After the bearing is equipped with the eccentric shaft and the concentric shaft, the installation is very convenient, and the eccentricity of the eccentric bearing can be adjusted to obtain a suitable preload.


MKL can produce LV bearing adopts the internal structure design with double row angular contact ball bearing and the thickened outer ring, the bearing can bear higher capacity.

MKL can produce LV bearing with material high quality bearing steel AISI52100 or stainless steel AISI440C,  with heat treated and precision ground, and filled with long-life high-quality multi-purpose grease. The bearing is dustproof with metal shields or rubber seals .

The bottom of the V-shaped groove of outer ring has an undercut groove. If the backing groove is not allowed for use, the bearing without the undercut can be ordered from us, we can provide with a customized service .


 Here is our LV series Bearing Track Roller Catalogues:

Bearing No.

Dimension(mm)



dw

d

D

B

C

A

a

rs

Cw(KN)

Cow(KN)

LV20/7ZZ

10

7

22

11

11

14.5

120

0.3

3.78

2.05

LV20/8ZZ

10

8

30

14

14

18.1

120

0.3

5.13

2.67

LV202-38ZZ

10

15

38

17

17

22.25

120

0.5

8.47

5.37

LV202-40ZZ

10

15

40

18

18

22

120

0.5

8.47

5.37

LV201ZZ

20

12

41

20

20

28

120

0.3

8.47

5.37

LV201-14.2RS

14

12

39.9

18

18

24

100

0.5

8.9

5

LV202-41ZZ

20

15

41

20

20

28

120

0.5

8.47

5.37

LV203ZZ

20

17

58

25

25

35

120

0.5

14.66

9.1

LV204-57ZZ

30

20

57

22

22

41

120

0.6

14.66

9.1

LV204-58ZZ

30

20

58

25

25

41

120

0.6

14.66




We can produce with different type of track rollers bearing such as   LR, LFR, LV(RV), VW(RM), SG, ZL etc.




V groove truck roller bearing
