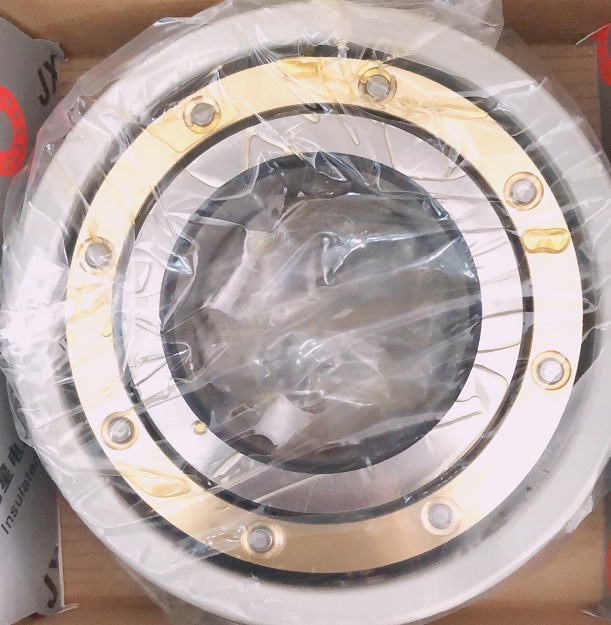

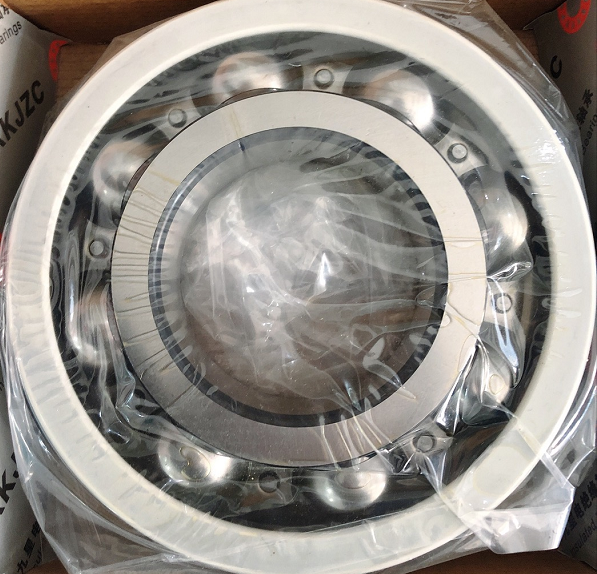

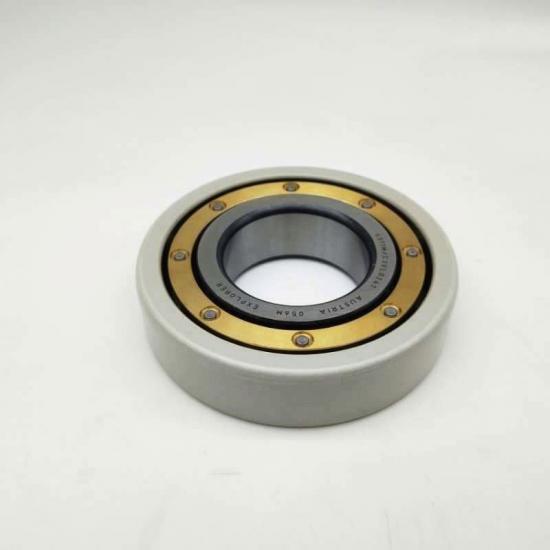

6219MC3/VL0241 Insulated Ball Bearings

95x170x32mm C3 Insulation Bearing 6219/C3VL0241 ,we have this bearing in stock now .

item no.:
6319 M/C3VL0241
lead time:
3 DAYS
product orgin:
China ,Shanghai
shipping port:
NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
payment:
30% TT in advance
MOQ:
1

products details

Specs of 6219/C3VL0241 Bearing:

Bearing No.:6219/C3VL0241

Inside Diameter:95mm

Outside Diameter:170mm

Race Width:32mm

Suffix explanation 6219/C3VL0241 SKF

VL0241: External surfaces of the outer ring coated with aluminium oxide. The coating is sealed with a resin to protect against the conductive effects of water and moisture. This basic coating can withstand voltages up to 1.000 V DC.

C3: Internal clearance greater than Normal. The extra internal clearance allows expansion due to high speeds or temperatures.

Classification of Insulation Bearings:

Electrically insulated deep groove ball bearings
Electrically insulated angular contact ball bearings
Electrically insulated cylindrical roller bearings
An inner or outer ring insulating bearing with an oxide coating
Hybrid bearings with electrically insulating ceramic rolling elements

Application

Applicable to motors, generators, especially variable frequency motors are more widely used.

Cage of Insulation Bearings

According to different bearing series and size, electrical insulation bearing with the following cage:

Reinforced nylon 66 cage
Stamping steel plate holder
Car body solid copper cage

ZZ BEARINGS can Produce Differeent Range of Insulation Bearings :

Size Range Electrically insulated deep groove ball bearings Diameter range: 40mm ~ 140mm Outside diameter size range: 80mm ~ 300mm Width size range: 18mm ~ 62mm Electrically insulated angular contact ball bearings Diameter range: 40mm ~ 140mm Outside diameter size range: 80mm ~ 300mm Width size range: 18mm ~ 62mm Electrically insulated cylindrical roller bearings Inside diameter range: 45mm ~ 140mm Outer diameter size range: 100mm ~ 300mm Width size range: 25mm ~ 62mm	VL0241: Insulation on the outer ring
	VL2071: Insulation on the inner ring
	Common Deep groove ball bearing (Insulated bearing)
	6312MC3 6313MC3 6314MC3 6315MC3 6316MC3 6317MC3
	6318MC3 6319MC3 6320MC3 6322MC3 6326MC3 6328MC3
	Common Tapered roller bearing (Insulated bearing)
	30316 30317 30318 30319 30320 30322 30324 30326 30328 30330
	Common Cylindrical roller bearing (Insulated bearing)
	NU312MC3 NU313MC3 NU314MC3 NU315MC3 NU316MC3 NU317MC3
	NU318MC3 NU319MC3 NU320MC3 NU322MC3 NU326MC3 NU328MC3

hot tags :

Electric Motor Bearing 6219MC3/VL0241 Insulated Bearing Motor Electrically Insulated Bearing Electricity Insulation Bearings Insulation Bearing 6219/C3VL0241 Electrically Insulated Bearing

next :
6319 M/C3VL0241 INSOCOAT Deep Groove Ball Bearing

related products

6319 M/C3VL0241 INSOCOAT Deep Groove Ball Bearing

6319M/C3VL0241 INSOCOAT ball bearing A special coating on the outer ring (VL0241) protects against bearing damage and eventual failure due to the passage of electric current.

White U-Groove Sliding Door Roller

5x24x7mm 626zz U groove white color door roller are produce with Chome steel and nylon coated material ,we have product in stock ,short delivery time can provide for you .

693zz Green Small Nylon Track Rollers Pulley Bearing

693zz Green Small Nylon Track Rollers Pulley Bearing are produced with material stainless steel 420 and outer materialnylon with that material the pulley bearing can work well and anti-rust , we can produce Pulley roller with customized service .this size we have now is with size 3*12.5*8mm

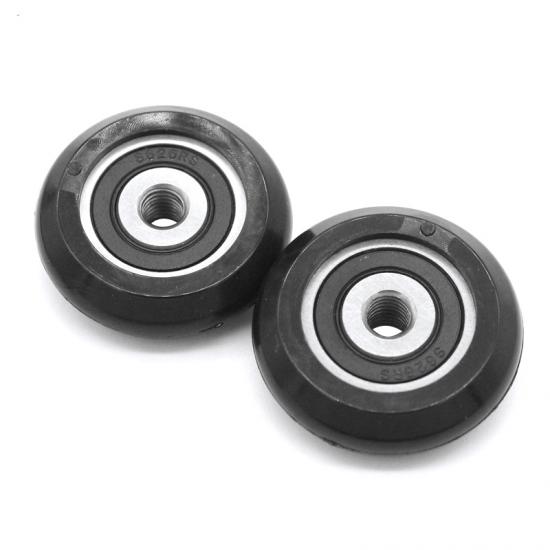

626RS Black Plastic Pulley Wheels

Plastic pulley wheels 626RS with material stainless steel AISI420+POM ,our size is 10*28*8mm,we also can do customzied service .

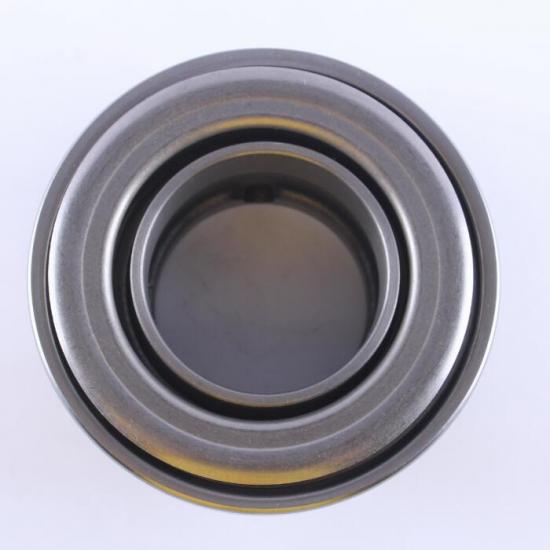

RCTS70SA-6 Automobile Clutch Release Bearing
