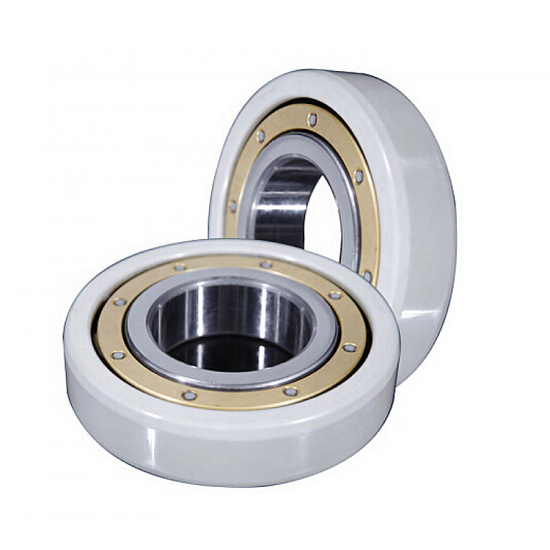

6319M/C3VL0241 INSOCOAT ball bearing A special coating on the outer ring (VL0241) protects against bearing damage and eventual failure due to the passage of electric current.
item no.:
6319 M/C3VL0241lead time:
3 DAYSproduct orgin:
China ,Shanghaishipping port:
NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAIpayment:
30% TT in advanceMOQ:
1
6319 M/C3VL0241 Bearings Specification:`
Bearing No.:6319M/C3VL0241
Dimension :
Inner diameter : 95
Outer diameter: 200
Width:45
Weight:6.93 kgs
OEM NO.:
6319M.C3
6319M/C3
6319-M-C3-J20AA
6319-M-J20AA-C3
7316571429106
Bearing Code Introduction :
M=Machined Brass Cage,
Ball Centered; Different Designs And Material Grades Are Identified By A Figure Following The M, e.g. M2.
C3=Internal Clearance Larger Than Normal.
VL0241=(Segment Precision, Code 10)=Electrical Resistance: Min. 50MΩ, Breakdown Voltage: Max. Operating Voltage 1.000v DC.
INSOCOAT Bearings Application :
Industrial electric motors
Wheel sets and traction motors (rail vehicles)
Power transmissions
Generators (wind power)
Features :
Protection against electric current passage
Prevent downtime and lost production
Outer ring coated with aluminium oxide
Interchangeable with standard bearings (same dimensions and performance)
We can produce other INSOCOAT bearings
|
Principal dimensions
|
Fatique load limit
|
Designation
|
||
|
d[mm]
|
D[mm]
|
B[mm]
|
Pu[kN]
|
|
|
70
|
150
|
35
|
2.75
|
6314/C3VL0241
|
|
70
|
150
|
35
|
2.75
|
6314 M/C3VL0241
|
|
75
|
130
|
25
|
2.04
|
6215/C3VL0241
|
|
75
|
160
|
37
|
3
|
6315/C3VL0241
|
|
75
|
160
|
37
|
3
|
6315 M/C3VL0241
|
|
80
|
140
|
26
|
2.2
|
6216/C3VL0241
|
|
80
|
170
|
39
|
3.25
|
6316/C3VL0241
|
|
80
|
170
|
39
|
3.25
|
6316 M/C3VL0241
|
|
85
|
150
|
28
|
2.5
|
6217/C3VL0241
|
|
85
|
180
|
41
|
3.55
|
6317/C3VL0241
|
|
85
|
180
|
41
|
3.55
|
6317 M/C3VL0241
|
|
90
|
160
|
30
|
2.8
|
6218/C3VL0241
|
|
90
|
190
|
43
|
3.8
|
6318/C3VL0241
|
|
90
|
190
|
43
|
3.8
|
6318 M/C3VL0241
|
|
95
|
170
|
32
|
3
|
6219 M/C3VL0241
|
|
95
|
170
|
32
|
3
|
6219/C3VL0241
|
|
95
|
200
|
45
|
4.15
|
6319/C3VL0241
|
|
95
|
200
|
45
|
4.15
|
6319 M/C3VL0241
|
|
100
|
180
|
34
|
3.35
|
6220/C3VL0241
|
|
100
|
215
|
47
|
4.75
|
6320/C3VL0241
|
|
100
|
215
|
47
|
4.75
|
6320 M/C3VL0241
|
|
110
|
200
|
38
|
4
|
6222/C3VL0241
|
|
110
|
200
|
38
|
4
|
6222 M/C3VL0241
|
|
110
|
240
|
50
|
5.7
|
6322/C3VL0241
|
|
110
|
240
|
50
|
5.7
|
6322 M/C3VL0241
|
|
120
|
215
|
40
|
3.9
|
6224/C3VL0241
|
|
120
|
260
|
55
|
5.7
|
6324/C3VL2071
|
|
120
|
260
|
55
|
5.7
|
6324 M/C3VL2071
|
|
130
|
230
|
40
|
4.15
|
6226/C3VL2071
|
|
130
|
280
|
58
|
6.3
|
6326/C3VL2071
|
|
130
|
280
|
58
|
6.3
|
6326 M/C3VL2071
|
|
140
|
250
|
42
|
4.55
|
6228/C3VL2071
|
|
140
|
300
|
62
|
7.1
|
6328/C3VL2071
|
|
140
|
300
|
62
|
7.1
|
6328 M/C3VL2071
|
|
150
|
270
|
45
|
4.9
|
6230/C3VL2071
|
|
150
|
320
|
65
|
7.8
|
6330/C3VL2071
|
|
160
|
340
|
68
|
7.65
|
6332 M/C3VL2071
|
|
170
|
360
|
72
|
8.8
|
6334 M/C3VL2071
|
|
180
|
380
|
75
|
10.4
|
6336 M/C3VL2071
|
