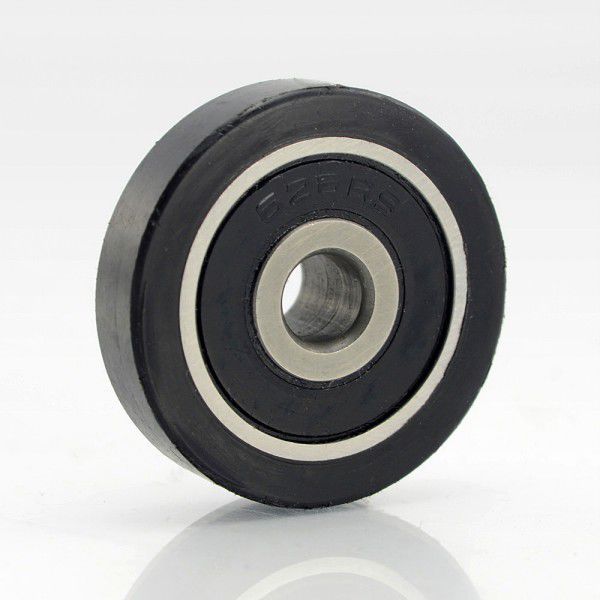

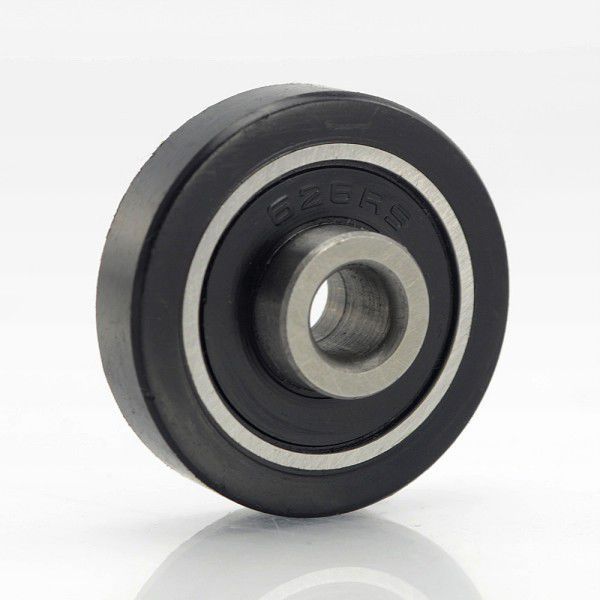

626RS Sliding Drawer Rollers Wheel

626RS  Drawer Rollers Specification:

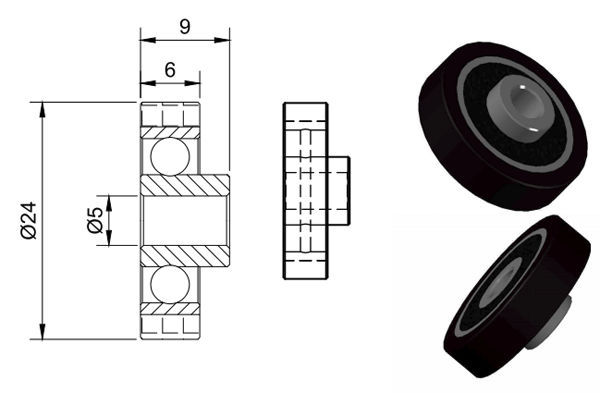

Diameter:

Inner diameter: 5mm

Outer diameter: 24mm

Width: 9mm

Bearing number: 626RS

Bearing Material: GCr15 bearing steel

Cover Material: Polyurethane(PU)

Shape: Flat

Color: Back

Shore Hardness: 75-95

Precision Rating: P0

Seals Type: NBR rubber seal

Description:

Polyurethane material ( PU) is a new type of polymer composite materials between rubber and plastic, while offering higher load bearing capacity. Compared to plastics, urethanes offer superior impact resistance, while good mechanical properties and machinability.

PU Roller Features :

Anti-abrasion, Soft, tensile strength,high elasticity, cushioning and long working life.

Application:

PU roller usually used for drawer currency sorter, bill counter, counting machine and Cash Counter.

For outside coated material ,we also can produce with POM ,PP ,PE and PTFE  ,you can choose according to your requirements.

Material Introduction :

1.For POM and PP plastic coated bearings Materials with good mechanical strength and wear resistance

2. suitable for the production of more sophisticated plastic bearings

3.Can working temperature from -60 °C ~ 100 °C

4.Can be used in high speed operation .

5.For PTFEmaterial ,it can used for roller wheel used in high-temperature corrosion-resistant

Sample :(FREE SAMPLE )

Usually by EMS, DHL, UPS, TNT, Fedex.

Bulk order:Usually by sea.

Delivery:

Within 7 days for Sample or below 100 pcs,30-45 days for large quantity.

Payment:

Through T/T, Western union.

It is Easy to Order Bearings from ZZ BEARINGS .

1.we will send you a Proforma invoice, client need check and confirms price, lead time, specificatin if no question .

2. Client sends 30% deposit (or other terms agreed) ,then MKL will start production.

3. Client approves our production sample, packing list ,invocie

4. ZZ BEARINGS arranges shipment and provides shipping documents(packing list ,invocie ,bill of lading)

5. Client sends balance payment.

6. ZZ BEARING worker sends original documents or telex release the goods.

7. Client receives order and gives feedback on quality, service, and suggestion.
