V Groove Gate Wheels With Material Steel Q235or stainless steel and we can do surface with galvanized with silver,yellow,color zinc,long lasting,different size can be provide.
item no.:
MKL1V60lead time:
7-30 daysproduct orgin:
China ,Shanghaishipping port:
Ningbo ,Shanghai,GuanzhouMOQ:
100
Steel Ball Bearing V Groove Wheels For Sliding Gates Specification
1.With Material: steel,Q235 and we can finish surface treatment with yellow zinc plating or silver zin plating .
2.We can produce with wheel diameter with 30mm ,38mm etc and customized size also welcome
4.We can produce with inside with single or double bearings
5.Except V groove wheels ,we can produce sliding gate wheel with U groove and Y groove

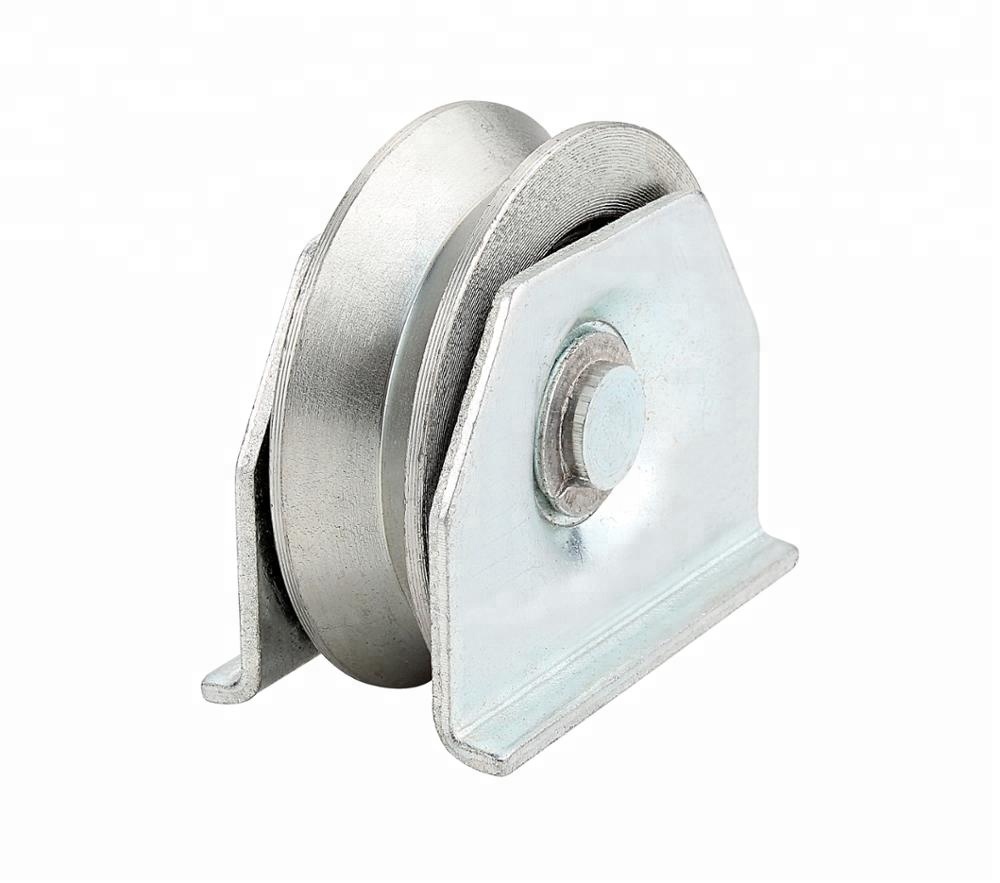

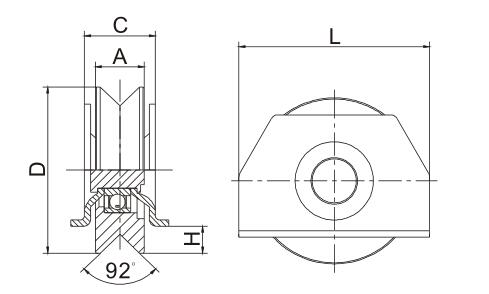

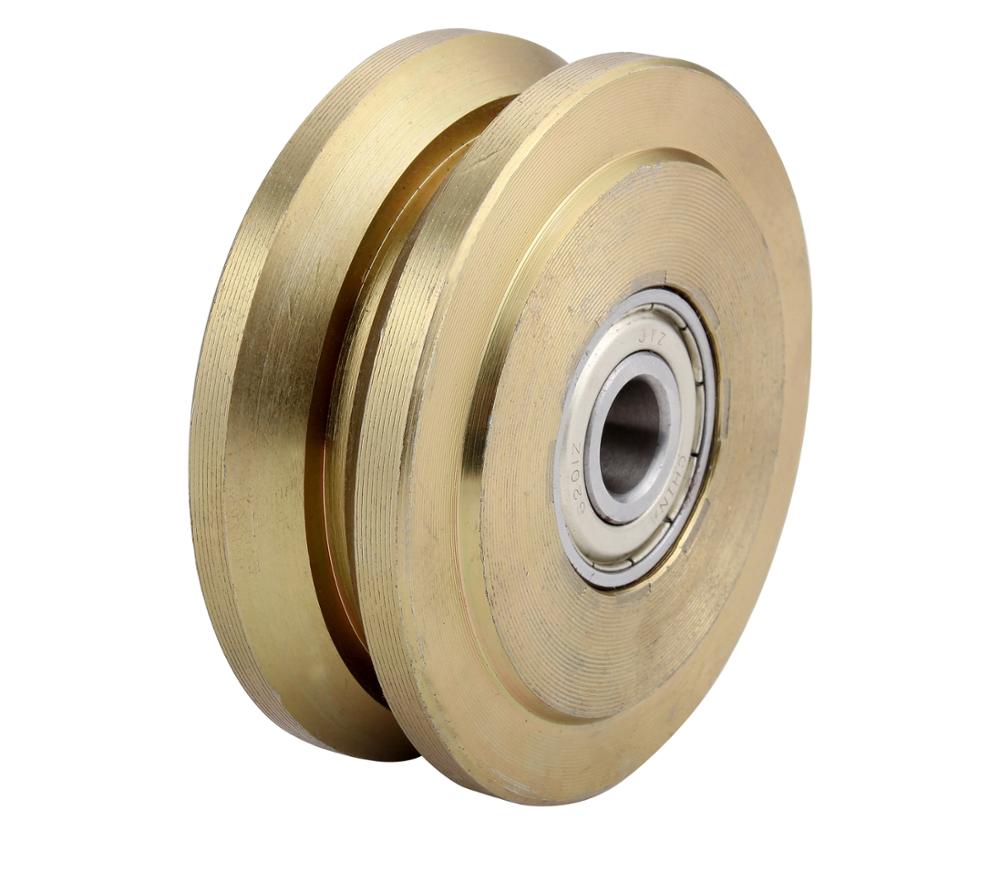

Sliding Roller Wheel Inside With Single Bearing
NO. | D | A | C | H | d | WT/KG |
HS1U60 | 58 | 17 | 28 | 7 | 16.5 | 0.31 |
HS1U70 | 68 | 20 | 29 | 11 | 16.5 | 0.491 |
HS1U80 | 78 | 20 | 29 | 16 | 16.5 | 0.627 |
HS1U90 | 88 | 20 | 29 | 12 | 16.5 | 0.838 |
HS1U100 | 98 | 22 | 30 | 16 | 16.5 | 1.225 |
HS1U80R10 | 78 | 25 | 30 | 16 | 20.5 | 0.6 |
HS1U90R10 | 88 | 25 | 30 | 12 | 20.5 | 0.808 |
HS1U100R10 | 98 | 25 | 30 | 17 | 20.5 | 1.085 |
HS1U120 | 118 | 22 | 32 | 22 | 20.5 | 2.062 |

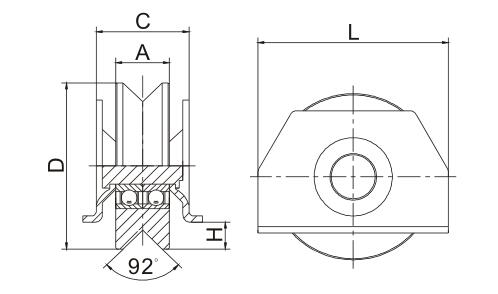

MKL also can produce sliding gate door whee with two bearing which can bear double weight capacity ,for more informations ,pls contact with us directly .
1. inside for this roller has 2 bearings
2. this roller has steel plates supported
3. surface can be in yellow or white zinc galvanized
NO.
D
A
C
H
d
WT/KG
HS2U80
78
25
33
16
20.5
0.932
HS2U90
88
25
35
12
20.5
1.294
HS2U100
98
25
37
17
20.5
1.508
HS2U120
118
30
37
22
20.5
2.66

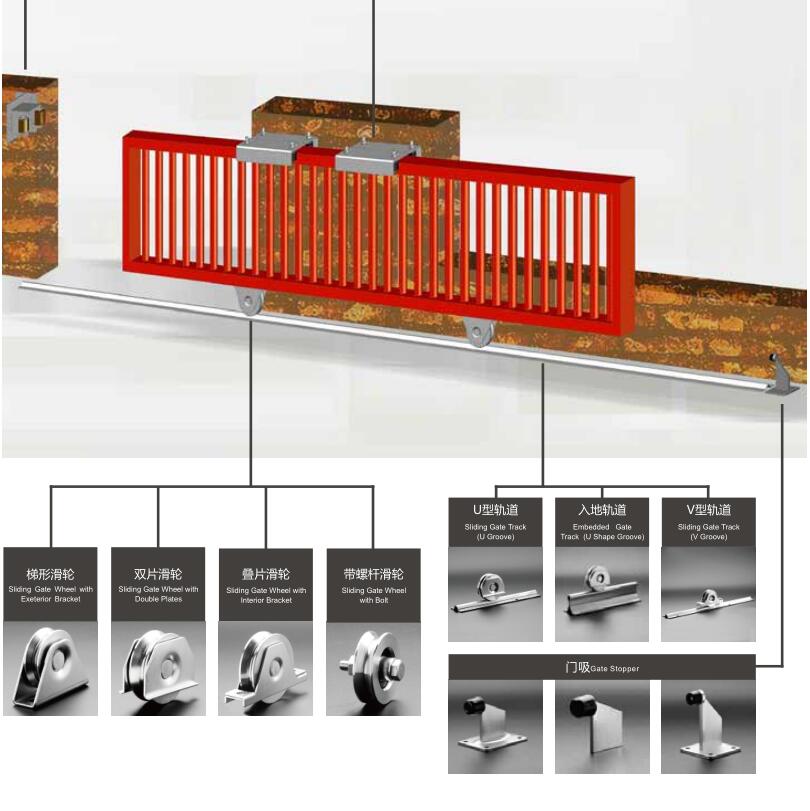

Other Type of Sliding Gate Bearing wheels

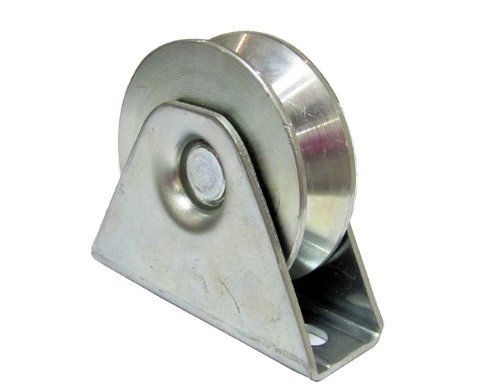

sliding gate wheel with exterior bracket

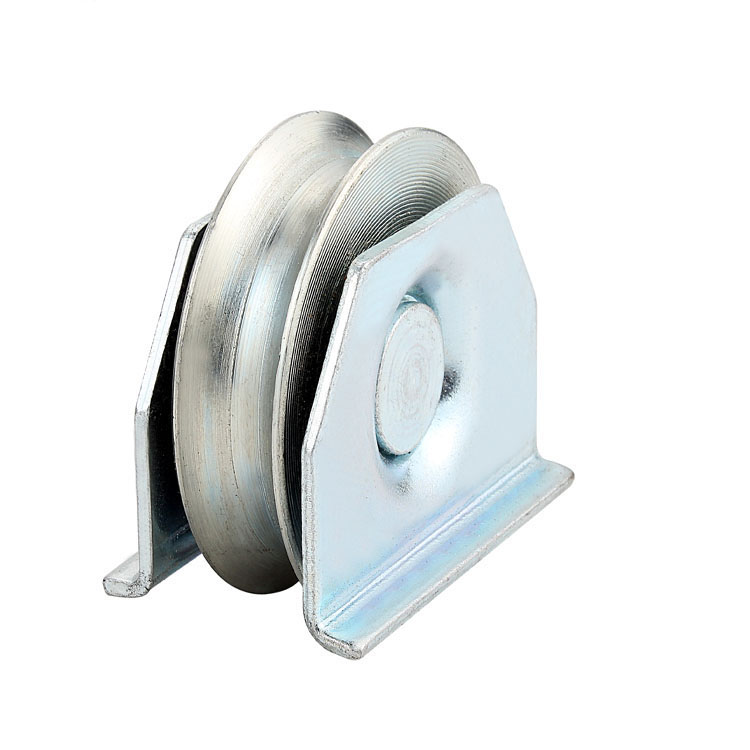

sliding gate wheel with double plates
sliding gate wheel with interior bracket

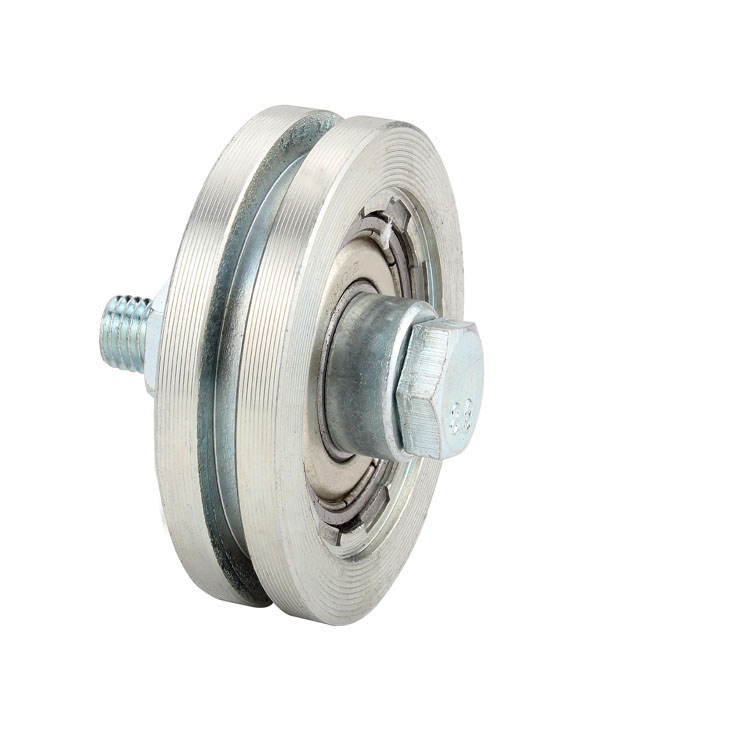

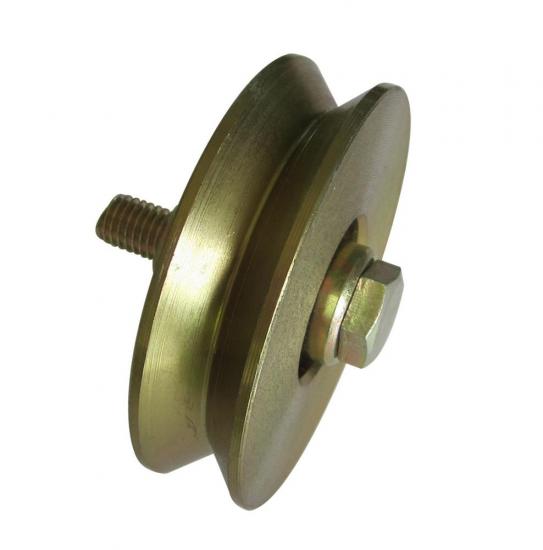

sliding gate wheel with bolt
sliding gate wheel with bolt
Sliding Gate Roller Wheels Are Widely Used In :
Gate doors
Factory doors
Entrance doors
Warehouse sliding doors

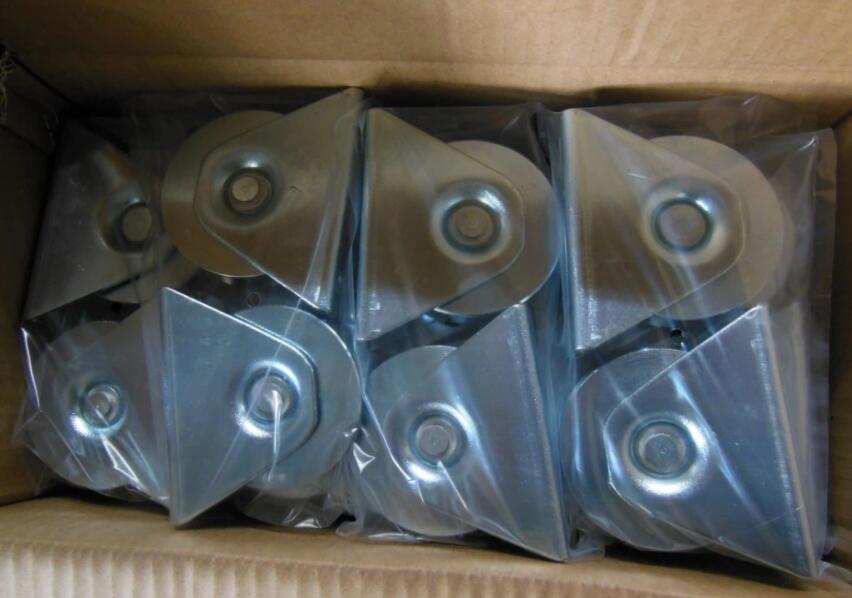

Sliding Gate V Track Packing:
Normally we packed gate wheel in plastic per 2 pcc ,then take it in cartons,finally packing pallet;if you have own requirements ,pls let us know.
