696ZZ External Thread Ball Bearings

new products

696ZZ External Thread Ball Bearings

69615-5C1L8M6  screw bearing produced with 304 stainless steel Screw + Chrome steel bearings ,sample can be provide in advance .

  • item no.:

    69615-5C1L8M6
  • lead time:

    7 days
  • product orgin:

    China ,Shanghai
  • shipping port:

    Ningbo ,Shanghai,Guanzhou,Shanghai
  • MOQ:

    1000
products details

696 Bearing with Shaft M6 Intorduction :

Product Name

69615-5C1L8M6 Deep Groove Ball Bearing with Threaded Shaft M6

Inside Bearing 696ZZ Bearing
Model No 69615-5C1L8M6  screw bearing
Sizes(mm) OD15, C1L8W5M6 External thread ball bearing
Material 304 stainless steel Screw + Chrome steel bearings
Sealed Type ZZ Metal Shield, 2RS Rubber Seals
Precision ABEC-3
Hole Shape Hexagon
Used Desk, conveyor, drawer, cabinet, POS, Furniture, Doors, Windows
Packing 500pcs/plastic bags
Load 20 KG

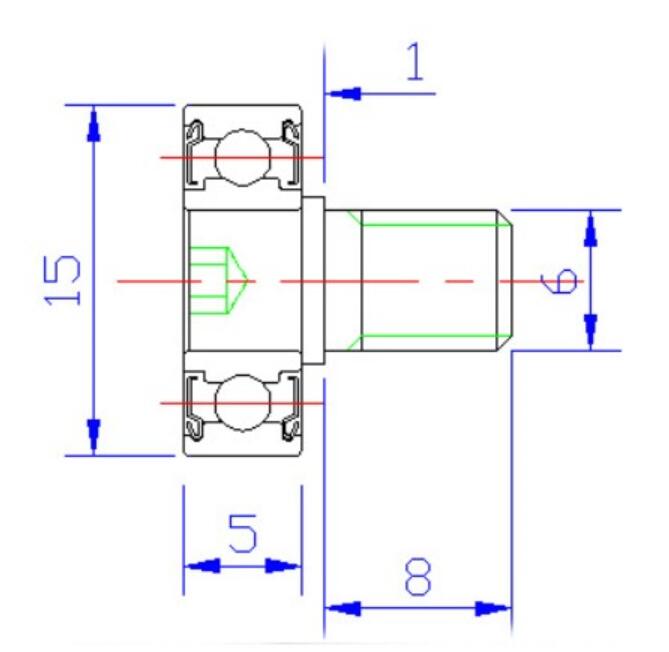

696 screw bearing drawing


Threaded Shaft Features :


1. With high quality chrome steel material , a high load capacity

2.  For screw ,we can provide with M3 M4 M6 M8 M10 screw,you can choose what you need

3. Screw with 304 stianless steel Low noise, stable performance and durable

3.OEM service welcome



696ZZ Bearing with Threaded Shaft M6 Application:

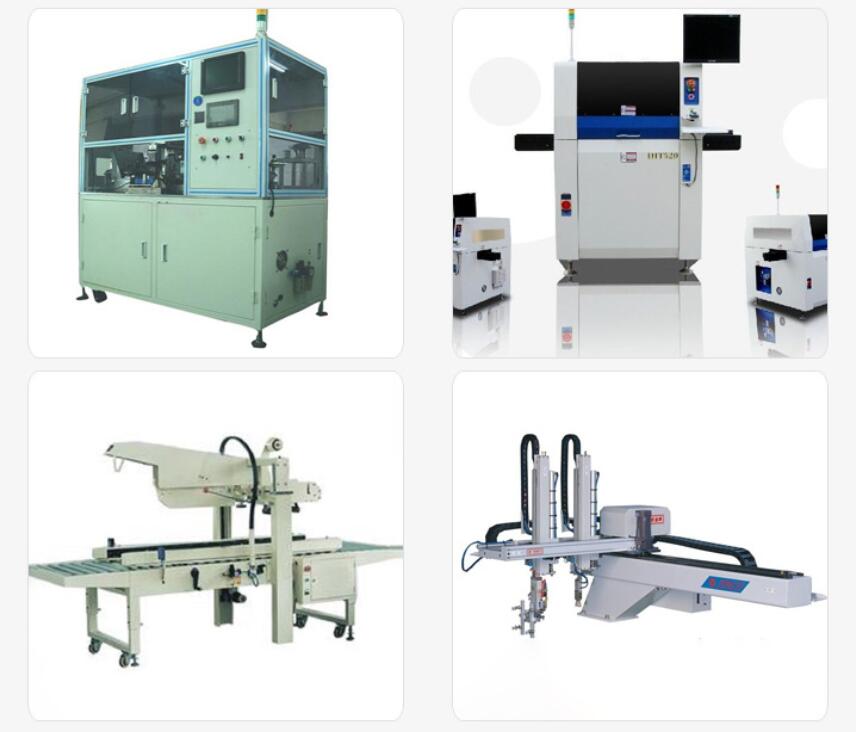

Bearing with screw have wide application ,they can usede for countless applications: drawer slide systems, cabinet, desk office cabinet, money counter, cash drawer roller, POS, Currency Fitness Sorter and Currency Sorting Machine, etc.

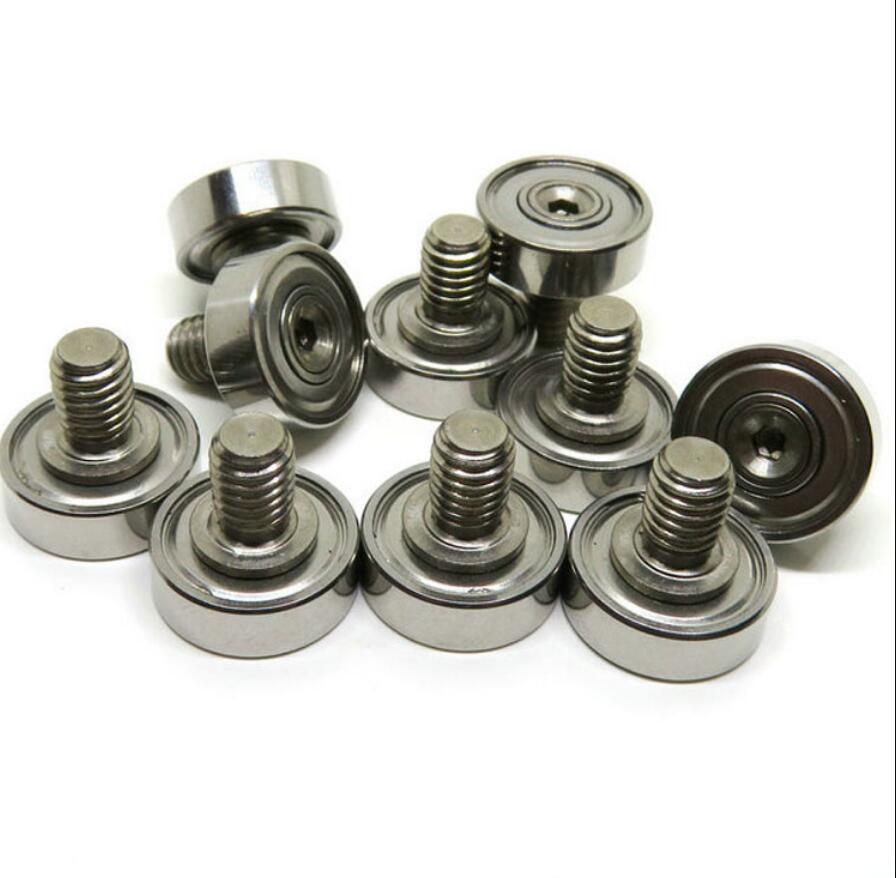

We Can Produce Different Size Screw Bearing for you :

Screw bearing
