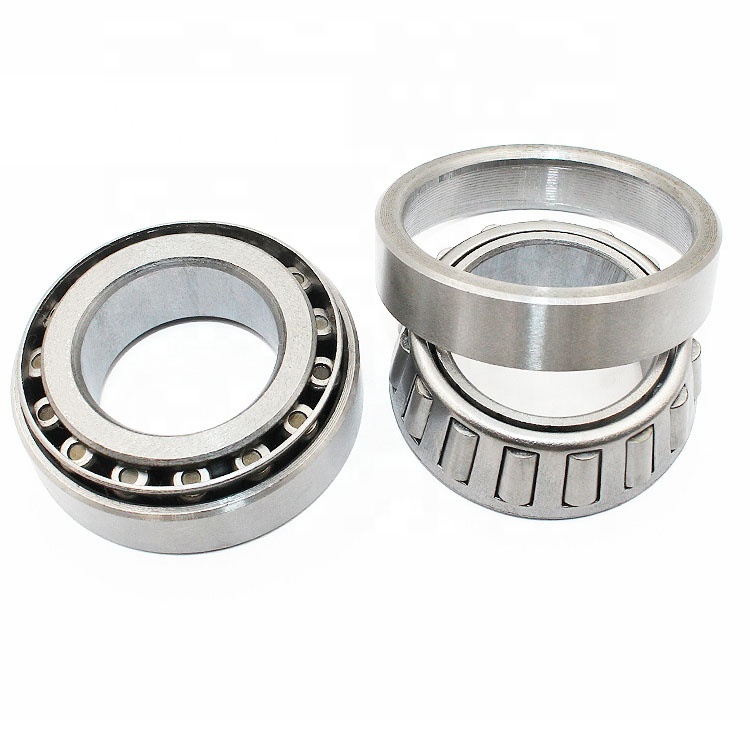

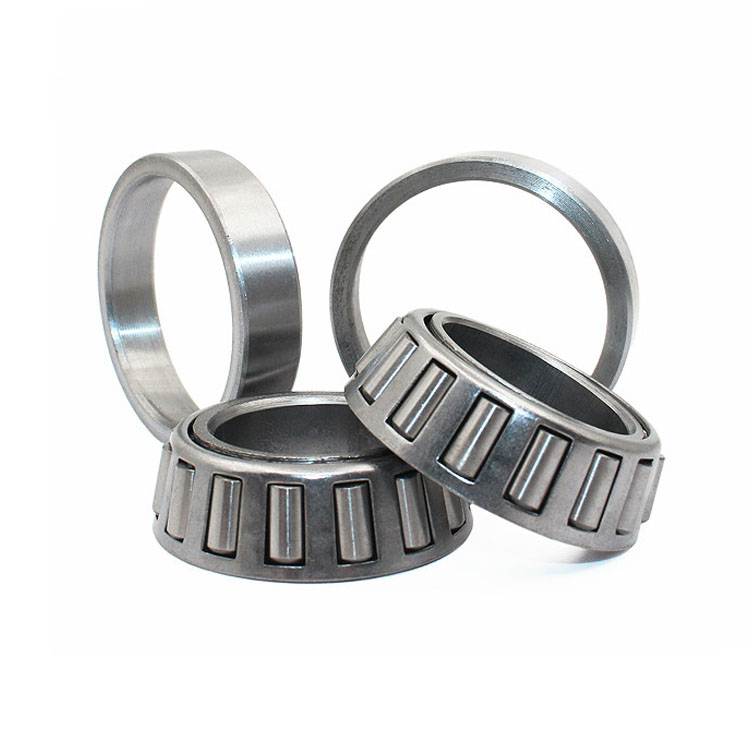

91683/22.5 & 91683/24 Taper Roller Bearings

Bearing 91683/22.5 ( 1 PC ) + 91683/24 ( 1 PC ) = 1 set taper roller bearing are produce with Chrome steel Gcr15 ,we have these two bearings in stock .

item no.:
EE222070/222128
lead time:
7 days
product orgin:
China
shipping port:
NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
MOQ:
1

products details

91683/22.5 , 91683/24 Electric Tricycle Front Steering Pressure Bearing Introduction :

Bearing No.: 91683/22.5

Inner Diameter: 22.5 mm Outer Diameter: 41 mm

Bearing No: 91683/24

Inner Diameter: 24 mm Outer Diameter: 41 mm

Material :Chrome steel Gcr15

With rice stock .

Application : Electric Tricycle

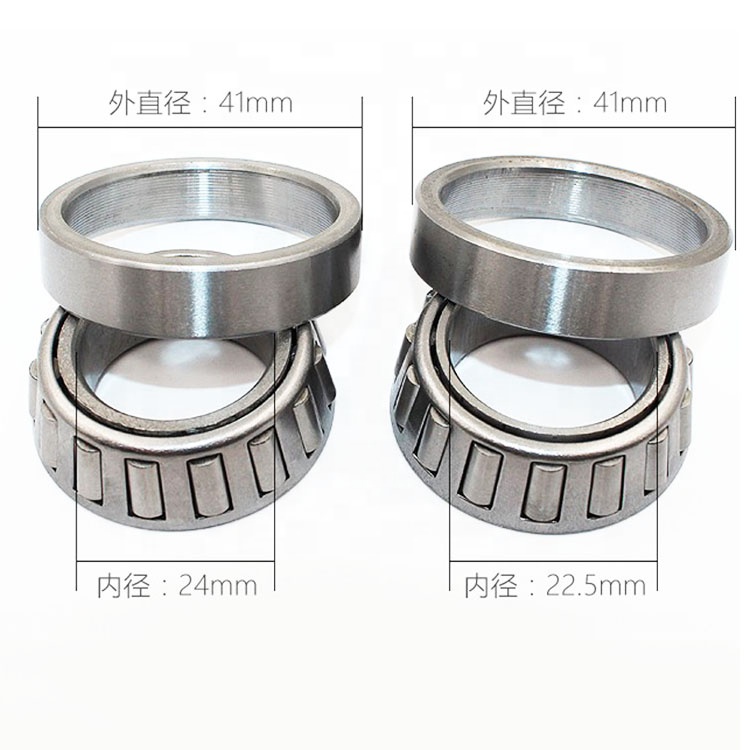

91683/22.5 bearing dimension

91683 / 22.5, inner diameter: 22.5mm, outer diameter: 41mm, height 12.5mm

91683 / 24, inner diameter: 24mm, outer diameter: 41mm, height 12.5mm

When 91683 is in use, it needs to be composed of two bearings .

We can Produce Other Taper Roller Bearing for you :

Part No.	d	D	B	T	OEM	OtherNo.	Wheel	Application
805165	58	110	115		20518610		Rear	VOLVO RENAULT
581079C	68	125	115	26	0484350 70306879 20518661		Front	VOLVO
805958	70	124.7	122				Front	DAF
800308	83	138	110		4200101500			DAF
800792	93.8	148	135	48.4	20558950 9955401 3987673	F200002	Rear	VOLVO
805208	100	148	135				Rear	DAF
804162A	110	170	140		81934200346	F200005	Rear	MAN
803904	120	175	123	43.05	3434301200	503809	Rear	SAF
566834.H195	70	119.7/124.7	110	27.3	1391615 1801595	F200010	Front	DAF
566864.H195	70	124.7	122				Front	DAF
566074.H195	70	125	114	25.4	1699327 1801592	F200006	FRONT	DAF
566193.H195	82	138	130	39.3	1612331 1801593	F200009	Front	DAF
566283.H195	100	148	135	40	1391617 1801594	F200007	Rear	DAF
201051	55	90	60		7180066 7187566 713690540	VKBA3552 7187566 F15121	Rear	IVECO
201050	60	108	75		0159811905	F15120	Front	VOLVO MERCEDES
805092C	77	130	91		85103257	F15127	Rear	IVECO VOLVO
803194A	78	130	90		0139812205 0139812305 0139819805 9753300425	F15125	Rear	VOLVO MERCEDES
805011C	82	140	110		85103258	F15126	Rear	VOLVO MERCEDES
201072	90	160	125.5		42539148	F15124	Rear	IVECO
577822	45	120	85		93810034	F300006 VKBA3553	Front	IVECO
805532	60	168	102		V20550678 R5010587029RVI	F300007 VKBA5407 BTF068	Front	VOLVO RENAULT

We also Produce with Electric Tricycle Front Steering Pressure Bearing 768906 30205 32005

Electric Tricycle Front Steering Pressure Bearing

768906 bearing :inner diameter: 30mm, Outer diameter: 52mm,height 15mm

32005X bearing: inner diameter 25mm, outer diameter 47mm, height: 15mm.

30205 bearing: inner diameter 25mm, outer diameter 52mm, height: 15mm.
