9/16" Agricultural Hexagonal Bearing 202KRR3

202KRR3 Agricultural Hexagonal Bearing with bore 9/16" are produce with Chrome steel.

item no.:
202KRR3
lead time:
30 days
product orgin:
China ,Shanghai
shipping port:
Ningbo,Shanghai,Guangzhou,Qingdao
MOQ:
100

products details

Hexagonal Hole Spherical Bearings 202KRR3 Introduction :

DIMENSIONS:

A mm⁄inch	D mm⁄inch	B mm⁄inch	C mm⁄inch	Mass kg⁄lb
14.3	35	13	11	0.049
0.563	1.378	0.5118	0.4331	0.108

Basic dynamic load rating (C) - 10,6 kN

Basic static load rating (C0) - 4,4 k

Material :Chrome steel

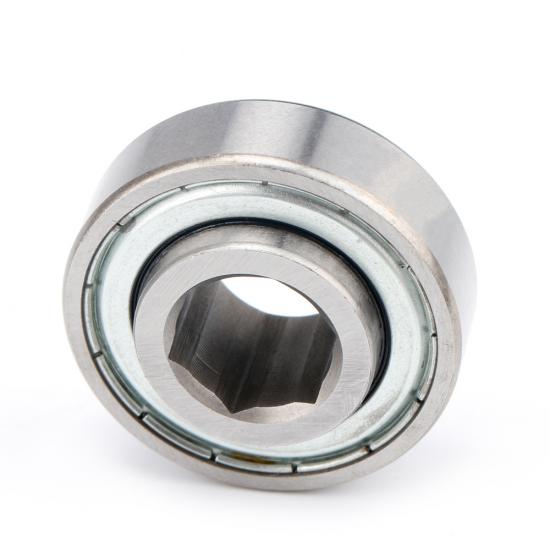

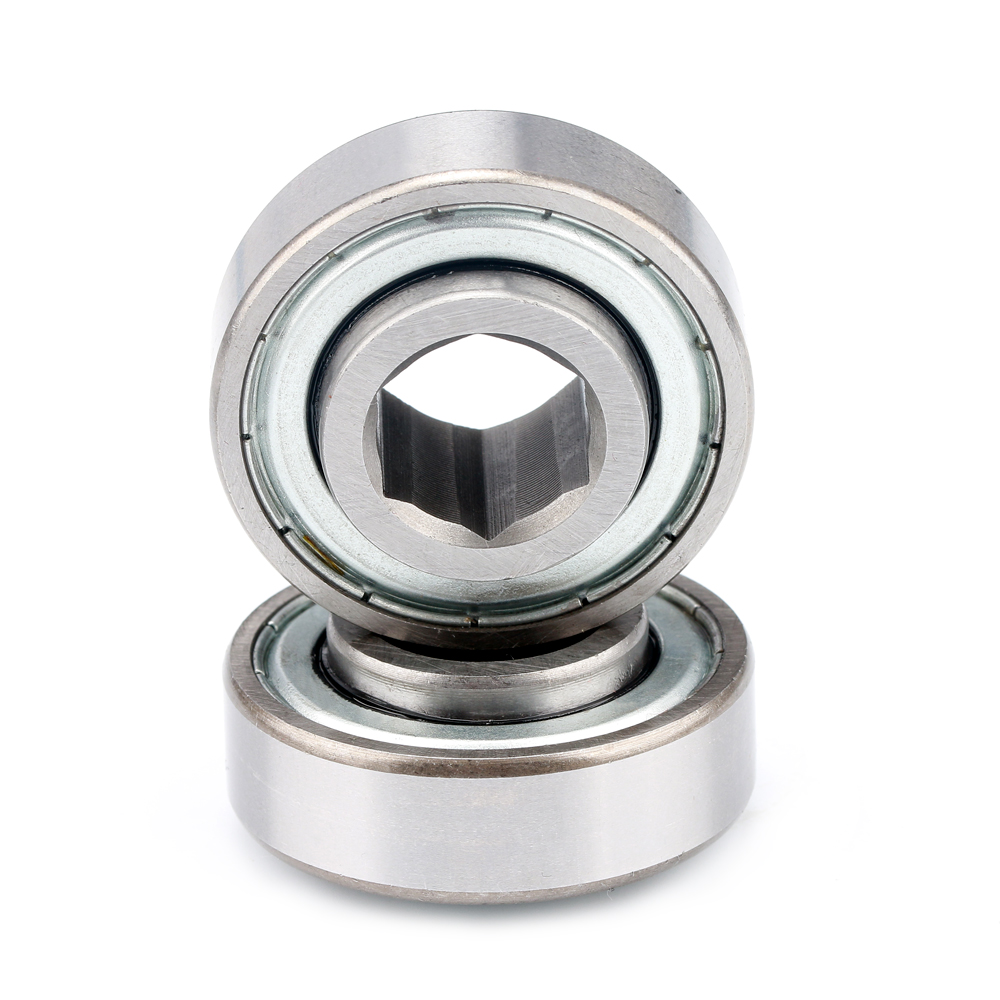

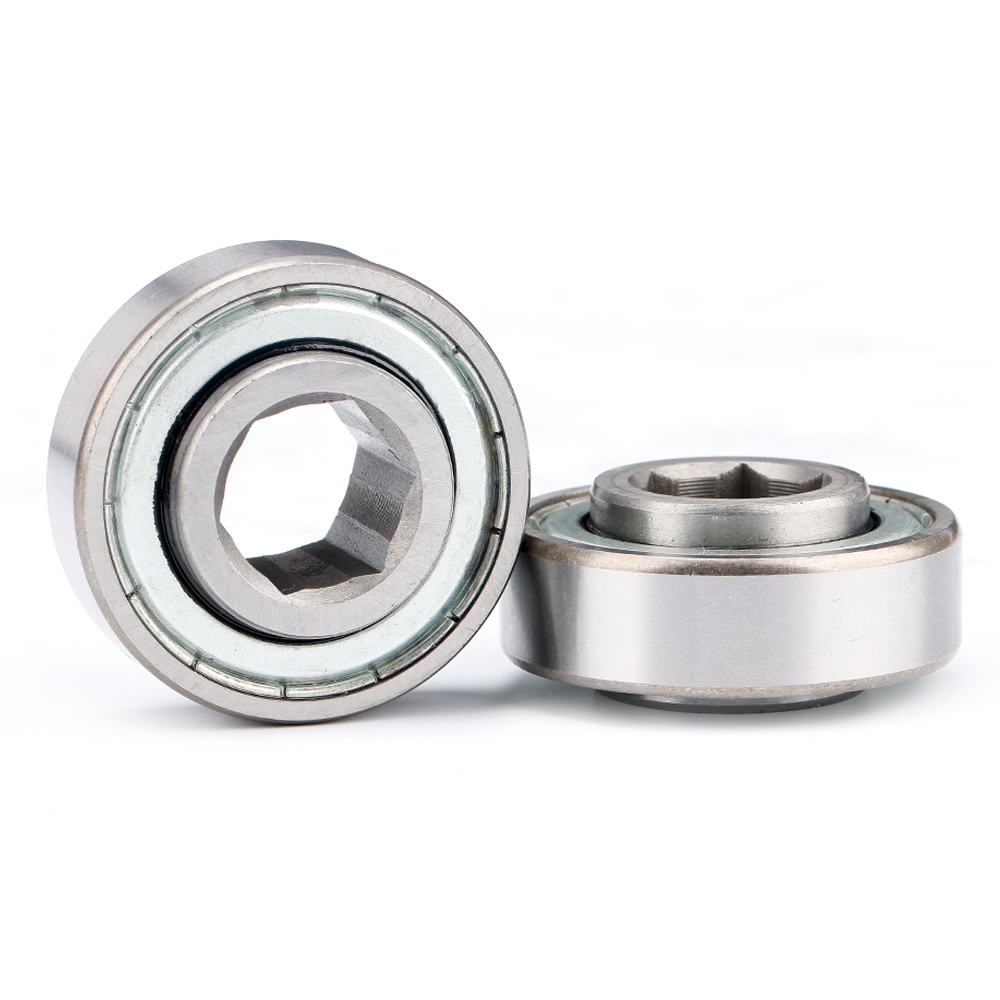

Hex Bore Bearing Picture:

Bearing 202KRR3 Agricultural Bearing Application :

Hex bore bearing are widely usde for agricultural machiery JD7172, 5202SBK22, 202FFS, C88502, BR88502, FS88502, 202KRR3, G88502, B88502, 711-770

ZZ BEARING is a agricultural machine factory,we can produce other farm bearings :

HEX BORE BEARING TYPE

Bearing Number	Type	Hex Shaft Size	A	D	Bi	Be	Load Ratings N		Wt.
Bearing Number	Type	Hex Shaft Size	mm	mm	mm	mm	Dynamic	Static	kg
205KPP2	3	7/8"	22.25	52	25.4	15	3150	1610	0.213
205KRR2	1	7/8"	22.25	52	25.4	15	3150	1610	0.2
205KPPB2	4	7/8"	22.25	52	25.4	15	3150	1610	0.213
205KRRB2	2	7/8"	22.25	52	25.4	15	3150	1610	0.2
206KPP4	3	1"	25.425	62	26.924	16	4370	2320	0.213
G206KPPB4	4	1"	25.425	62	24	18	4370	2320	0.213
206KPPB5	4	1"	25.425	62	26.924	16	4370	2320	0.213
206KRR6	1	1"	25.425	62	24	16	4370	2320	0.34
206KRRB6	2	1"	25.425	62	24	16	4370	2320	0.34
G207KPPB2	4	1 1/8"	28.6	72	37.694	19	5770	3150	0.499
207KRRB9	2	1 1/8"	28.6	72	37.694	17	5770	3150	0.454
207KRRB12	2	1 1/8"	28.6	72	25	17	5770	3150	0.395
SL53-014-2T	Special	7/8"	22.225	53.086	19.4	18.288	3150	1610	0.174
