1-1/8" NTN Hex Bore Bearing 2AH07-1.1/8

NTN Bearing 2AH07-1.1/8 is same as bearing 207KRRB9 with hex bore ,and these bearings are widely used for Agricultural machiery parts such as John Deere ,Case-IH.

item no.:
2AH07-1.1/8
lead time:
30 days
product orgin:
China ,Shanghai
shipping port:
Ningbo,Shanghai,Guangzhou,Qingdao
MOQ:
100

products details

Insert Ball Bearing NTN 2AH07-1.1/8 Introduction :

DIMENSIONS:

BORE: 1-1/8" Hex

O.D. 2.83" Round

IR Width: 1.484"

OR Width: .669"

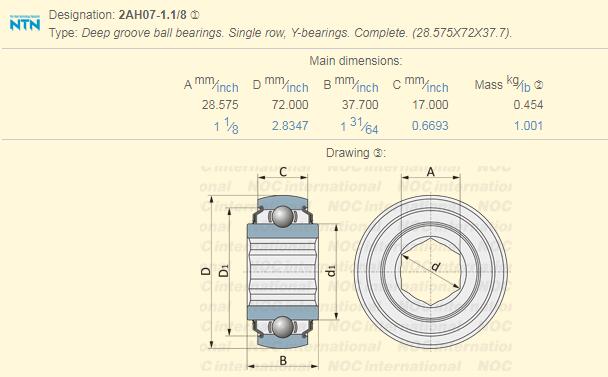

2AH07-1.1/8 bearing size

2AH07-1.1/8 Bearing Also Know AS:

FAFNIR: 207KRRB9

BCA: HPS102GP

INA: SK102-207-KRR-B-AH10

New Holland 121602

John Deere: JD9457

NTN :2AH07-1 1/8

RHP:HPS102GP,18K207N

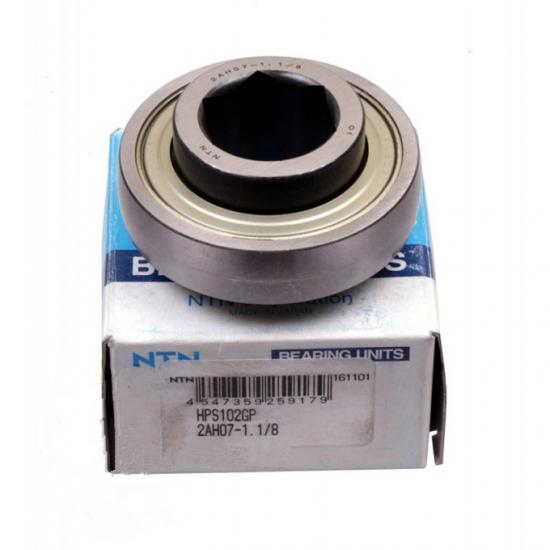

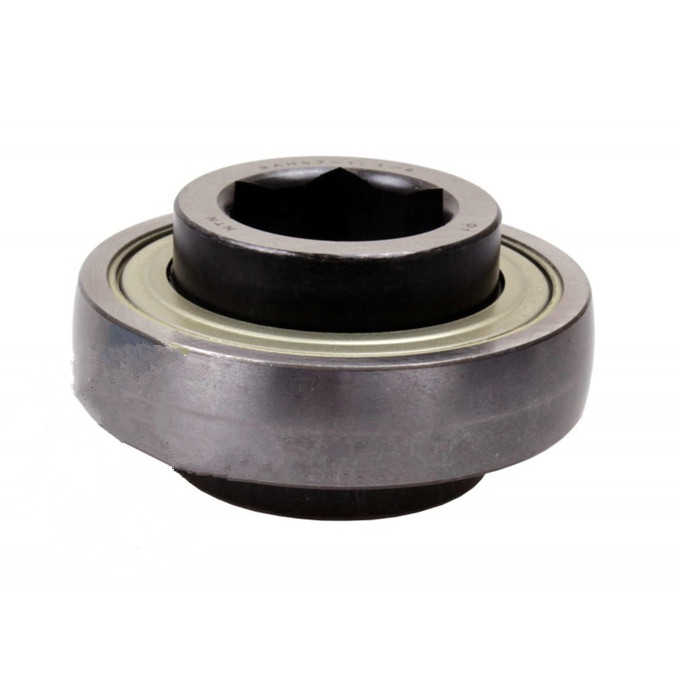

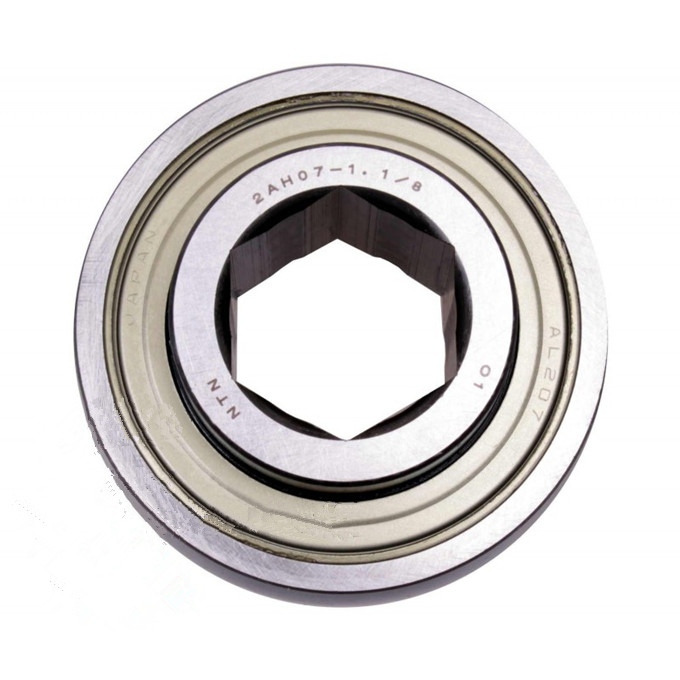

Bearing Picture :

Bearing 2AH07-1.1/8 Can Be Used For :

Case-IH: Corn Head Auger Bearing

John Deere: 410, 500 & 510 bailers.

Bearings application

We Can Produce Other Agricultural Bearings :

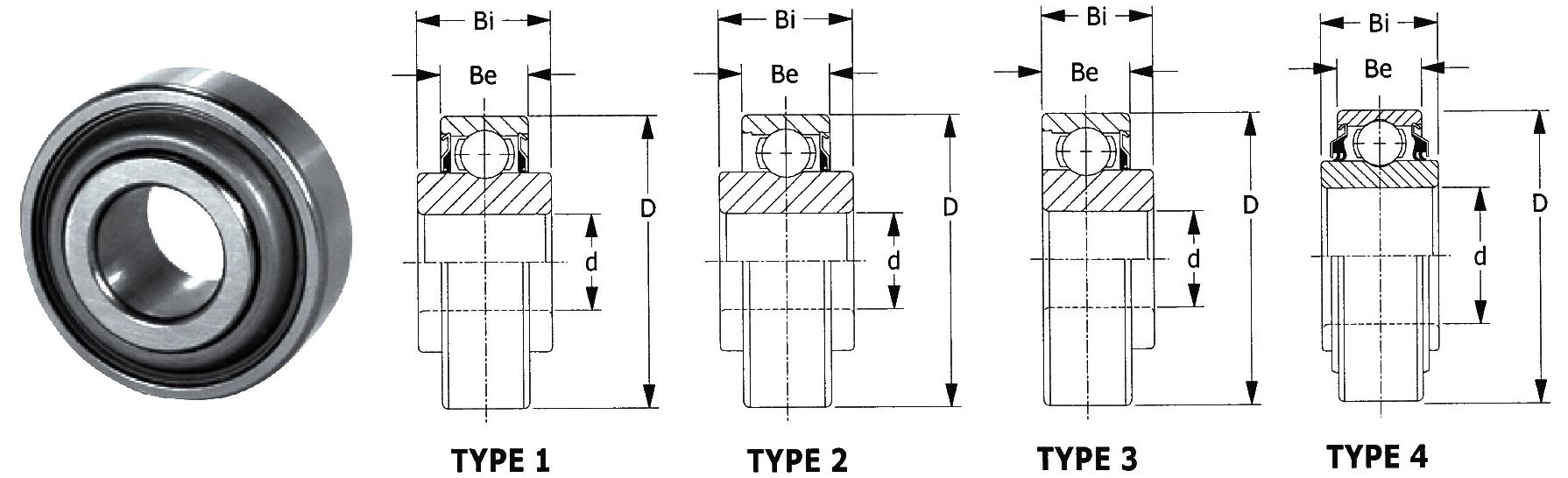

ag bearing type

Bearing No.	Type	d	D	Be	Bi	Wt. kg
		mm	mm	mm	mm	approx.
203-KRR-AH05	4	13	40	12	18.3	0.09
203KRR5	1	13.081	40	12	18.288	0.1
202-KRR	4	15	35	11	14.4	0.05
203KR2	3	15.883	40	12	14	0.082
203-KRR-AH02	4	16.2	40	12	18.3	0.07
203KRR2	1	16.26	40	12	18.288	0.073
BB203KRR2*	1	16.26	40	12	18.288	0.073
BB203KRR2FD^	4	16.26	40	12	18.288	0.077
203KRR7	1	17	40	12	16.612	0.082
203-KRR	4	17	40	12	18.3	0.07
204KR2	3	19.063	45.225	15.494	15.494	0.107
202NPP9 (202FFH8)		12.827	38.1	11	11	0.064
202RRE		15	35	11	22.352	0.061
CF5202-2RST-8		12.7	38.2	15.9	15.9	0.078
203JD		17	40	12	14
203KRR3		15.951	50.8	15	15
203KRR6		16.256	47	12	18.288	0.13
203NPP9		15.9	40	12.95	12.95
5203KYY2		16.256	40	39.12	44.12
204JY3		16.053	45.225	15.494	18.669	0.118
204RY2		16.027	45.225	15.494	18.669	0.118
204KRD4		16	47	14	17.5	0.135
204RR6		19.063	45.225	15.49	15.49
204RR7		19.18	45.225	15.49	15.49
204RR8		16.03	45.225	15.49	15.49
204KRR14	1	16.027	47	15	18.288	0.142
Z9504-2RST		19.05	45.225	15.494	15.494	0.12
205KRP2		19.202	52	15	21.107
205KR3		19.08	52	17.78	16.26
205KRR6		13.081	52	15	34.925
205KRR7		13	52	15	38.1	0.504
205KP6	4	19.202	52	17.78	23.393
205KP8		19.2	52	15	18.288
205KYY3		19.202	63.5	25.4	26.975
205PP8		12.964	52	15	34.925
205PP9		19.202	52	15	34.925
205PP10		16	52	15	34.925
205PP12		16.129	52	15	38.1
206KPP16		19.177	62	16	24
SL 5316 2T		16	53.086	18.288	19.4
