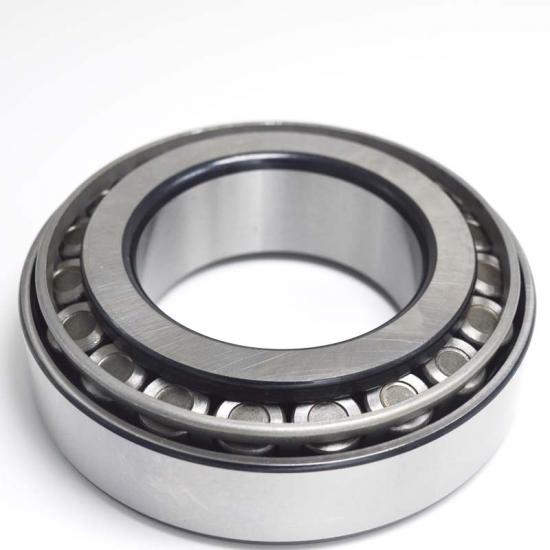

24x52x15/20mm 91103-5T0-003 Tapered roller bearings can be used for Honda Gearbox ,we have this bearings in stock ,for more bearing informations pls contact with us .
item no.:
91103-5T0-003lead time:
7 daysproduct orgin:
Chinashipping port:
NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAIMOQ:
5091103-5T0-003 Tapered Roller Bearing Specification:
| Model Number | 91103-5T0-003 |
| Type | Tapered Roller |
| Application | Honda Gearbox |
| Inner Dia. (mm) | 24 |
| Outer Dia. (mm) | 52 |
| Thickness (mm) | 15/20 |
| Weight (KG) | 0.2 |
Bearings Application :

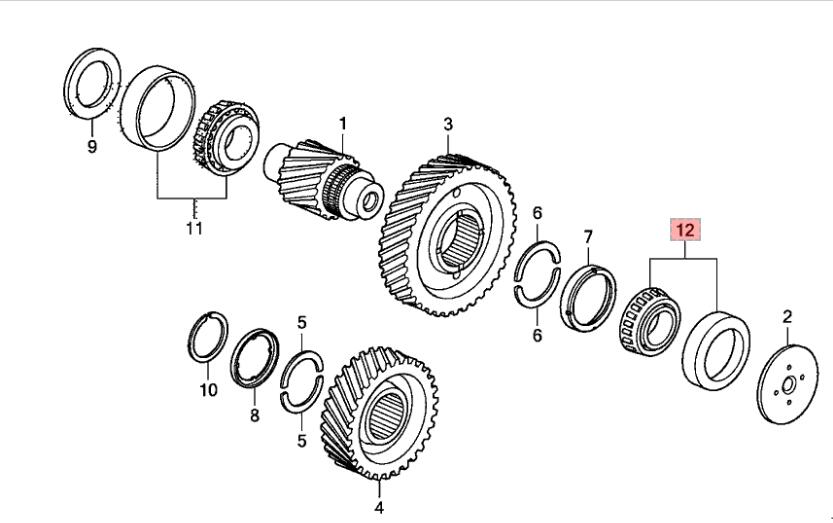

91103-5T0-003 roller bearings can be used for Honda gearbox .
We Can Produce Other Auto Bearings :
9884-55106 28680/22
9884-57102 462/453X
9884-63103 29586A/22A
9884-65102 32313
9884-65103 30313
9884-65104 3231
The structure of taple roller bearing :
We can prodive different type of taper roller bearings ,if you are interested ,pls feel free to contact with me ,here are some KOYO bearing number for your reference:
Taper roller bearing have widely application:
For more bearings ,pls contact with us free at info@bearings-factory.com
| Bearing No. | Boundary dimensions(mm) | |||
| d | D | T | B | |
| 323/32R | 32 | 75 | 29.75 | 28 |
| 32907JR-2 | 35 | 55 | 14 | 14 |
| 32007JR | 35 | 62 | 18 | 18 |
| 33007JR | 35 | 62 | 21 | 21 |
| 30207CR | 35 | 72 | 18.25 | 17 |
| 30207JR | 35 | 72 | 18.25 | 17 |
| 32207-1R | 35 | 72 | 24.25 | 23 |
| 32207JR | 35 | 72 | 24.25 | 23 |
| 33207JR | 35 | 72 | 28 | 28 |
| 30307DJR | 35 | 80 | 22.75 | 21 |
| 30307XR | 35 | 80 | 22.75 | 21 |
| 30307JR-1 | 35 | 80 | 22.75 | 21 |
| TR0708-1R | 35 | 80 | 32.75 | 31 |
| 32307JR | 35 | 80 | 32.75 | 31 |
| 32908JR | 40 | 62 | 15 | 15 |
| 32008JR | 40 | 68 | 19 | 19 |
| 33008JR | 40 | 68 | 22 | 22 |
previous :
NA329120/329173D Double Row Taper Roller Bearingsnext :
ECO.1 CR05A93 Tapered Roller Bearing
Bearings KOYO 32008jr are single row taper roller bearing with size 40*68*19mm, and the material Chrome steel Gcr15 ,we have this bearing with 665 PCS in stock now .
Japan original NSK Tapered Roller Bearing R37-7 with size 37x77x12/17mm
30YM1/48Y1 Steering Head Bearing with dimension 30*48*12 mmcan be used For Column Izh Jupiter Izh Planeta,we have bearings in stock now ,can provide with short delivery time.
184.15x242.888x95.25 mm double row inch taper roller bearing LM637349NW LM637310D,we have this bearings in stock now ,can provide with short delivery time .
WIth size 20x42x15 mm ,Tapered Roller Bearing 32004 X are produce with Chrome steel GCr15 ,we have this bearing in stock now ,and free sample can be provide for test in advance.
High Quality 91683/22.5 & 91683/24 Bearings Can Used For Electric Tricycle Front Steering Pressure Bearing,We Have Products in Stock Now.
