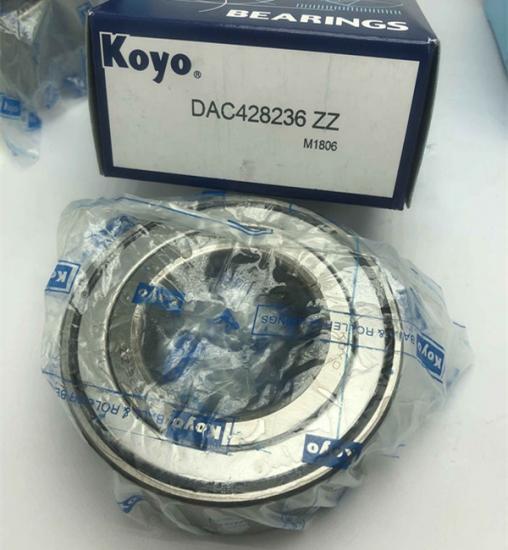

DAC428236 Auto Wheel Hub Bearing

Auto Wheel Hub Bearing Specification :

Bearing No.:DAC428236
Dimension:
Inner diameter :42 mm
Outer diameter: 82 mm
Height：36 mm

Material:Chrome steel Gcr15

Other OEM No.:38BWDD09 DAC3871W

We Can Produce Four Generation Auto Wheel Bearings:

The first generation wheel bearing is a double row angular contact bearing components.

The second generation wheel bearing have an outer raceway for the bearing retainer flange, the bearing sleeve may simply be fixed with a nut on the axle. Making the car maintenance becomes easy.

The third generation wheel hub bearing units are used bearing unit and anti-lock braking system ABS compatible. Wheel hub unit designed with inner flange and outer flange, bolted flange on the drive shaft, the entire outer flange bearings mounted together.

The fourth generation hub bearing unit is the CVJ and bearing made of a whole, to solve the prior art because the hub and the constant velocity joint integrated structure makes wheel size increases caused by increased weight disadvantage. Features are: no need to adjust the bearing assembly clearance, bearing assembly process more rational, lighter volume decreases, disposable after use almost permanently fitted grease, reduced the overall cost of production, more conducive to the massive popularity.
