F608 2RS Flange Ball Bearing

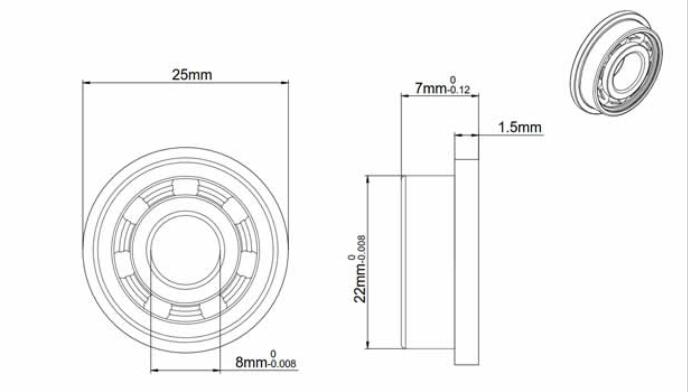

Bearing F608 Introduction :

Bearing type :Flange bearing

Bearing No.: F608

Inside diameter (d) 8 mm

Inner diameter tolerance -0.008mm ~ 0

Outside diameter (D) 22mm

Outer diameter tolerance -0.008mm ~ 0

Width (B) 7mm

Width tolerance -0.12mm ~ 0

Flange OD: 25mm

Flange thickness: 1.5mm

Bearing material: GCr15 bearing steel

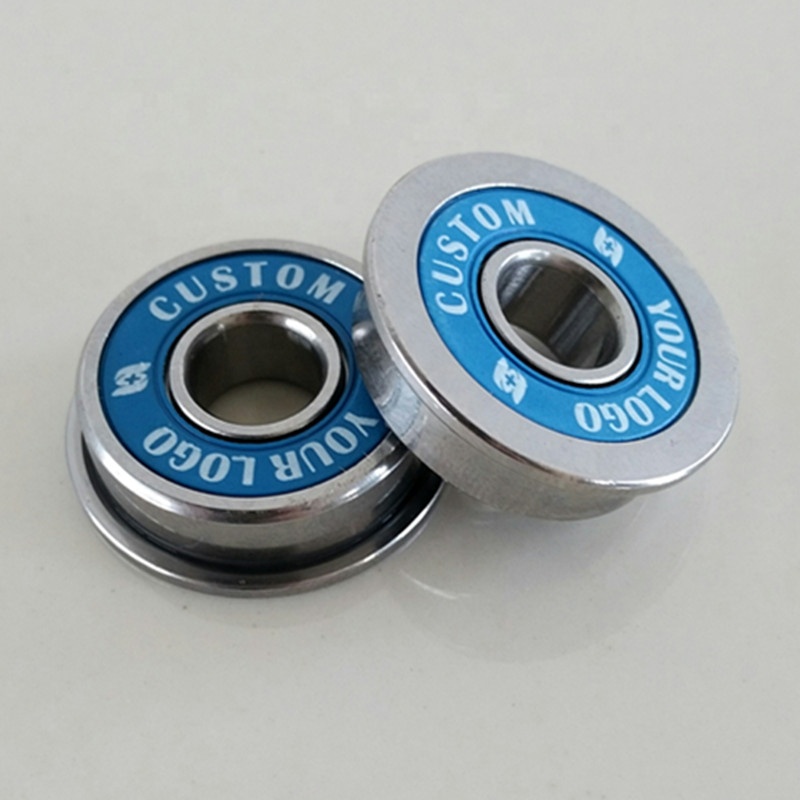

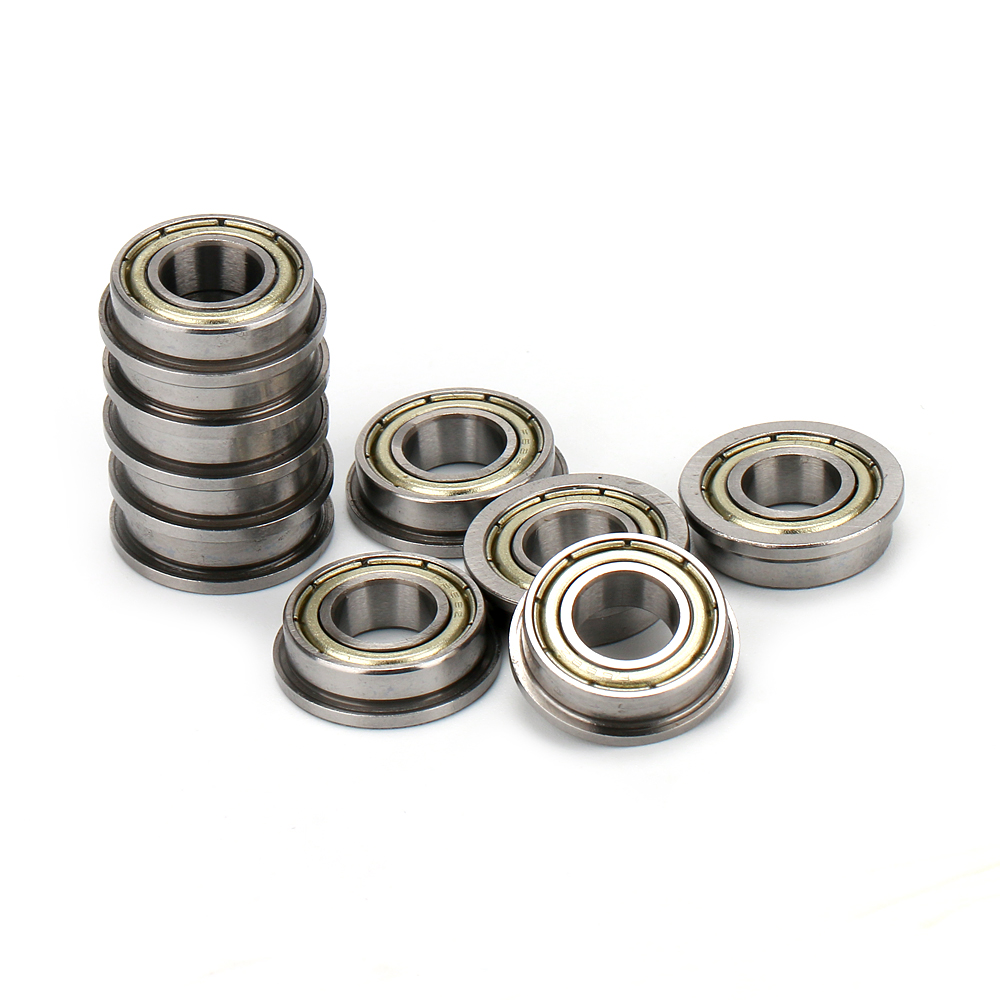

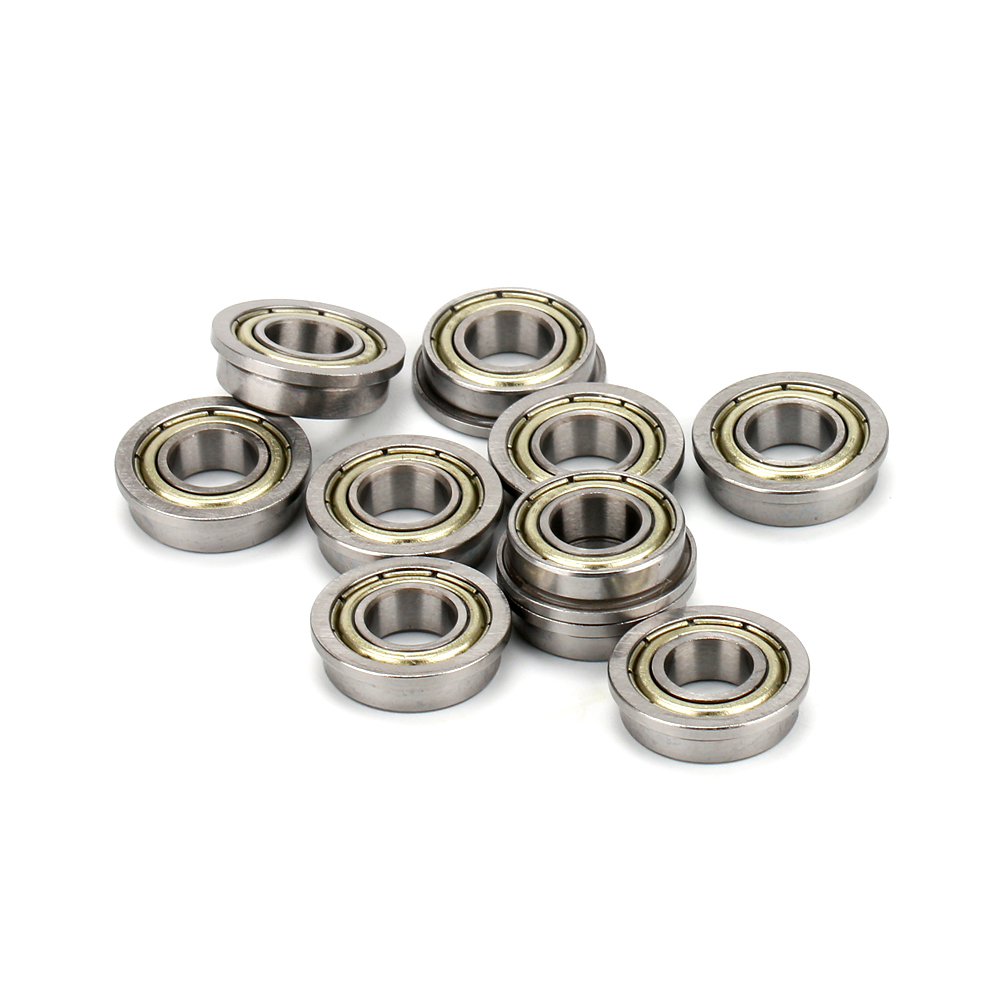

China Chrome steel F608 Bearing Pictures :

We can produce F608 bearing with customized service .

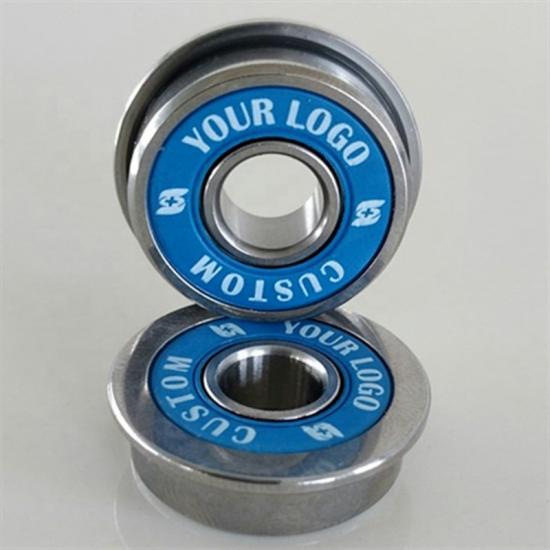

Show your logo on bearing .

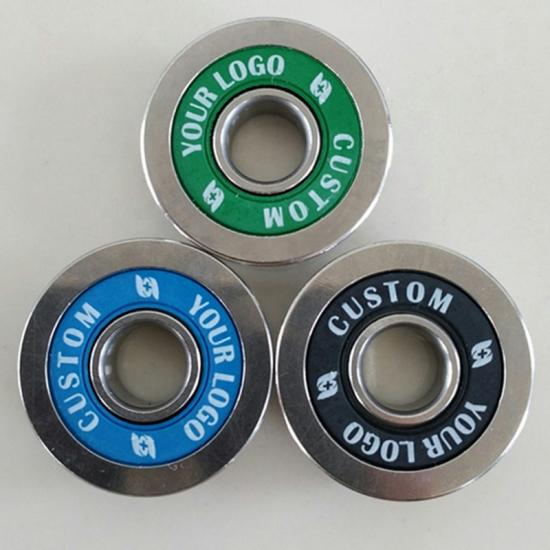

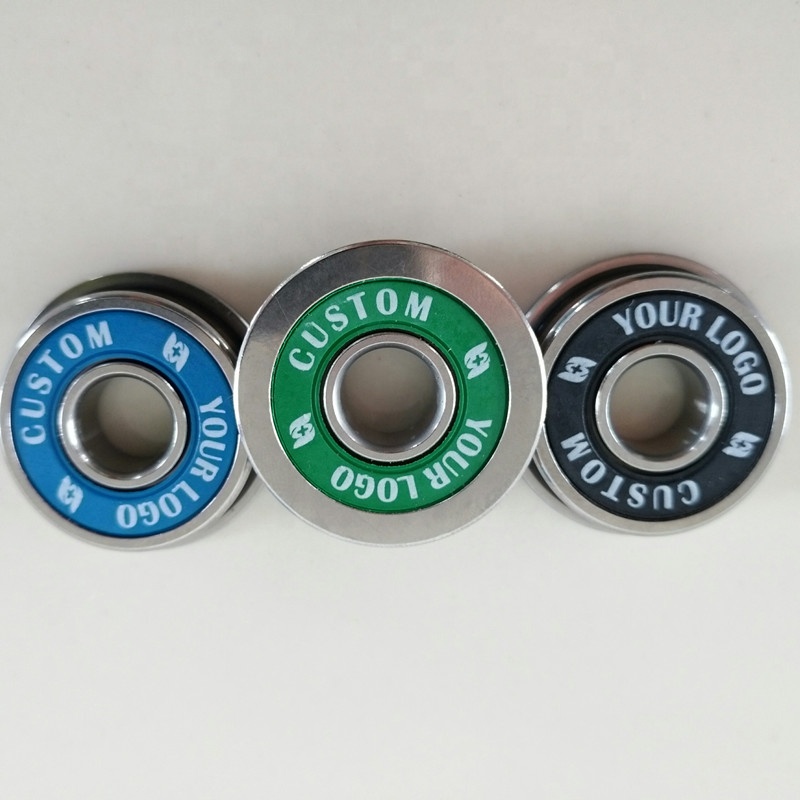

Different seal colors

ZZ BEARING Specification :

1). Materials: GCr15_China/ (AISI) 52100_American/ (Din) 100Cr6_Germany (Chrome Steel);

2). Tolerance: ABEC-1(P0)ABEC-3(P6),ABEC-5(P5);ABEC-7;ABEC-9

3). Vibration: Z1V1,Z2V2, Z3V3;

4). Radial Play (Clearance): C2,C0,C3,C4,C5;

5). Brand:  OEM;

F608 miniature flanged bearings are suitable for gyros, anemometers, flow meters, miniature gearboxes, small motors.

We Can Produce Other Deep Groove Ball Bearings :

1). 6000 Series: 606,607,608,609,6000,6001,6002,6003,6004,6005,6006 --- Open, ZZ, 2RS, ZZ;

2). 6200 Series: 626,627,628,629,6200,6201,6202,6203,6204,6205,6206 --- Open, ZZ, 2RS, ZZ;

3). 6300 Series: 6300,6301,6302,6303,6304,6305,6306 --- Open, ZZ, 2RS, ZZ;

4). 16000 series: 16000, 16001,16001,16003,16004----Open, ZZ, 2RS, ZZ;
