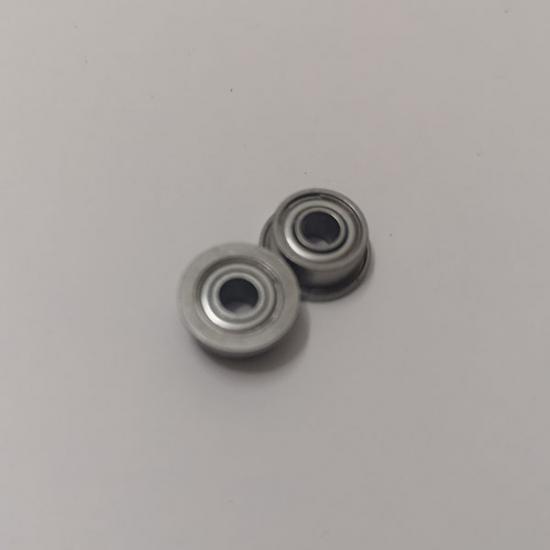

F693 Flanged Miniature Bearing

3 x 8 x 3 mm F693 ZZ bearing is a metric flanged ball bearing ,we can produce this bearings with Chrome steel or stainless steel material ,free sample can be provide for you to test in advance .

item no.:
F693
lead time:
5 days
product orgin:
China
shipping port:
NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI,Shanghai
MOQ:
1000

products details

F693 Bearing Specification :

3X8X3 Flanged Bearing F693ZZ

Inner diameter: 3 MM

Outer diameter: 8 MM

Thickness: 4 M4

Race Material: AISI52100 Bearing Steel (Chrome steel Gcr15 ,bearing steel )

Ball Material: AISI52100 Bearing Steel (Chrome steel Gcr15 ,bearing steel )

Retainer: Steel

Enclosure: Metal Shields or Rubber Seals

Bearing No.: F693Z, FL693ZZ, RF830ZZ, LF830-ZZ, F693.2ZJ1, F693.2Z, MF693ZZ, F693SS

Applicaition :F693 motor bearings

We Can Produce Other Miniature Flanged Ball Bearing:

Model			Frange Diameter (D1)		Width(b)		Width of flange(c)		Cr(N)	Cor(N)	Permit Speeding
	(d)	(D)	open	zz	open	zz	open	zz			Grease	Oil
			open	zz	open	zz	open	zz			*1000rpm
F682zz	2	5	6.1		1.5	2.3	0.5	0.6	169	50	85	100
MF52zz	2	5	6.2		2	2.5	0.6	0.6	169	50	85	100
F692zz	2	6	7.5		2.3	3	0.6	0.8	330	99	75	90
MF62zz	2	6	7.2		2.5	2.5	0.6	-	330	99	75	90
MF72zz	2	7	8.2		2.8	3	0.6	0.6	386	129	63	75
F602zz	2	7	8.5		2.8	3.5	0.7	0.9	386	129	60	71
F682Xzz	2.5	6	7.1		1.8	2.6	0.5	0.8	209	74	71	80
F692Xzz	2.5	7	8.5		2.5	3.5	0.7	0.9	386	129	63	75
MF82X	2.5	8	9.2		2.5	-	0.6	-	558	180	60	67
F602Xzz	2.5	8	9.5		2.8	4	0.7	0.9	552	177	60	71
MF63zz	3	6	7.2		2	2.5	0.6	0.6	209	74	71	80
F683zz	3	7	8.1		2	3	0.5	0.8	311	112	63	75
MF83zz	3	8	9.2		2.5	3	0.6	-	395	141	60	67
F693zz	3	8	9.5		3	4	0.7	0.9	558	180	60	67
MF93zz	3	9	10.2	10.6	2.5	4	0.6	0.8	571	189	56	67
F603zz	3	9	10.5		3	5	0.7	-	571	189	56	67
F623zz	3	10	11.5		4	4	1	1	631	219	50	60
MF74zz	4	7	8.2		2	2.5	0.6	0.6	255	108	60	67
MF84zz	4	8	9.2		2	3	0.6	0.6	395	141	56	67
F684zz	4	9	10.3		2.5	4	0.6	1	641	227	53	63
MF104zz	4	10	11.2	11.6	3	4	0.6	0.8	711	272	48	56
F694zz	4	11	12.5		4	4	1	1	957	350	48	56
F604zz	4	12	13.5		4	4	1	1	957	350	48	56
F624zz	4	13	15		5	5	1	1	1301	488	40	48
F634zz	4	16	18		5	5	1	1	1340	523	36	43
MF85zz	5	8	9.2		2	2.5	0.6	0.6	218	90	53	63
MF95zz	5	9	10.2		2.5	3	0.6	0.6	431	169	50	60
MF105zz	5	10	11.2	11.6	3	4	0.6	0.8	431	169	50	60
MF115zz	5	11	12.5		-	4	0.8	1	716	282	45	53
F685zz	5	11	12.5		3	5	0.8	1	716	282	45	53
F695zz	5	13	15		4	4	1	1	1077	432	43	50
F605zz	5	14	16		5	5	1	1	1329	507	40	50
F625zz	5	16	18		5	5	1	1	1729	675	36	43
F635zz	5	19	22		6	6	1.5	1.5	2336	896	32	40
MF106zz	6	10	11.2		2.5	3	0.6	0.6	496	218	45	53
MF126zz	6	12	13.2	13.6	3	4	0.6	0.8	716	295	43	50
F686zz	6	13	15		3.5	5	1	1.1	1082	442	40	50
F696zz	6	15	17		5	5	1.2	1.2	1340	523	40	45
F606zz	6	17	19		6	6	1.2	1.2	2263	846	38	45
F626zz	6	19	22		6	6	1.5	1.5	2336	896	32	40
MF117zz	7	11	12.2		2.5	3	0.6	0.6	455	202	43	50
MF137zz	7	13	14.2	14.6	3	4	0.6	0.8	541	276	40	48
F687zz	7	14	16		3.5	5	1	1.1	1173	513	40	50
F697zz	7	17	19		5	5	1.2	1.2	1605	719	36	43
F607zz	7	19	22		6	6	1.5	1.5	2336	896	36	43
F627zz	7	22	25		7	7	1.5	1.5	3287	1379	30	36
MF128zz	8	12	13.2	13.6	2.5	3.5	0.6	0.8	543	274	40	48
MF148zz	8	14	15.6		3.5	4	0.8	0.8	817	386	38	45
F688zz	8	16	18		4	5	1	1.1	1252	592	36	43
F698zz	8	19	22		6	6	1.5	1.5	2237	917	36	43
F608zz	8	22	25		7	7	1.5	1.5	3293	1379	34	40
F689zz	9	17	19		4	5	1	1.1	1327	668	36	43
F699zz	9	20	23		6	6	1.5	1.5	2467	1081	34	40
F6700zz	10	15	16.5	16.5	3	4	0.8	0.8	850	430	14	16
F6800zz	10	19	21		5	5	1	1	1700	800	35	42
F6900zz	10	22	25		6	6	1.5	1.5	2611	1223	31	40
F6701zz	12	18	19.5	19.5	4	4	0.8	0.8	922	512	12	14
F6801zz	12	21	23		5	5	0.8	1	1911	1041	33	39
F6901zz	12	24	26.5		6	6	1	1.5	2831	1411	31	36
