GE50UK-2RS 50mm Spherical Plain Bearing

50*75*35*28mm GE50UK-2RS I50mm Spherical Plain Bearing - Steel/PTFE with Seals ,we can provide sample for test before order .

item no.:
GE50UK-2RS
MOQ:
1

products details

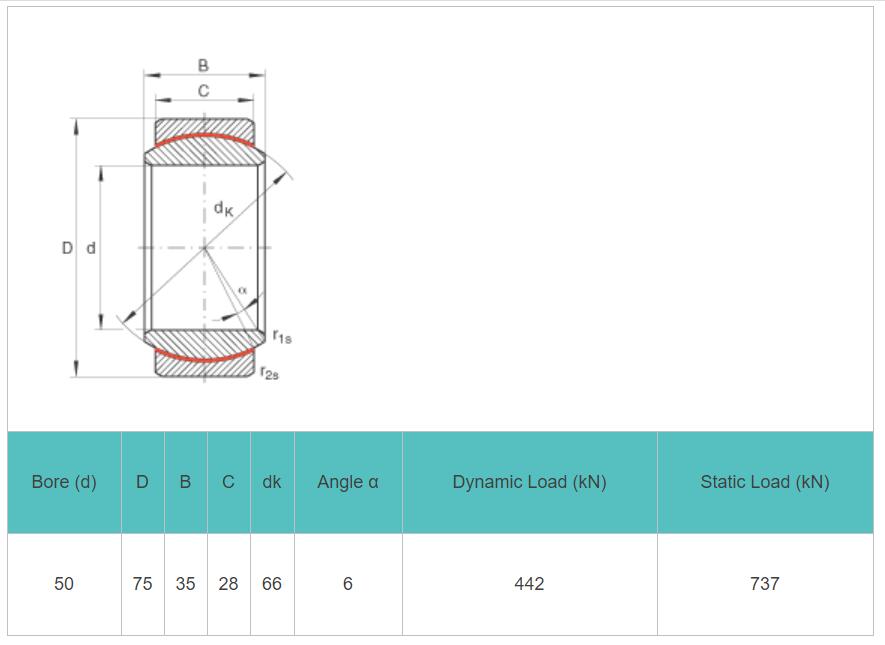

GE50UK 2RS Spherical Plain Bearing Specification:

Measurement Unit: Metric

Contact Material: Steel/PTFE

Bore: 50.00mm

Outside Dia (D): 75.00mm

Ball Width: 35.00mm

Housing Width: 28.00mm

GE50 Bearing

Spherical Plain Bearings are suitable for high load applications where there is limited oscillating movement.

GE50UK-2RS Spherical Bearing have wide applications include hydraulic cylinders, steering systems and applications with moving rods.

Construction can include different lining materials, ,we cna produce as below material:

Steel on Steel - Requiring Lubrication

PTFE - Maintenance Free

We can produce other Radial spherical plain bearings for you .

Bearing N0.	d	D	B	C	Dynamic	Static	Weight
					load	load	(Kg)
					(KN)	(KN)
GE15UK 2RS	15	26	12	9	23	47	0.027
GE17UK 2RS	17	30	14	10	30	60	0.041
GE20UK 2RS	20	35	16	12	42	83	0.066
GE25UK 2RS	25	42	20	16	68	137	0.119
GE30UK 2RS	30	47	22	18	88	176	0.153
GE35UK 2RS	35	55	25	20	112	224	0.233
GE40UK 2RS	40	62	28	22	140	280	0.306
GE45UK 2RS	45	68	32	25	180	360	0.427
GE50UK 2RS	50	75	35	28	220	440	0.546
GE60UK 2RS	60	90	44	36	345	695	1.04
GE70UK 2RS	70	105	49	40	440	880	1.55
GE80UK 2RS	80	120	55	45	567	1140	2.31
GE90UK 2RS	90	130	60	50	690	1370	2.75
GE100UK 2RS	100	150	70	55	858	1730	4.45
GE110UK 2RS	110	160	70	55	924	1860	4.82
GE120UK 2RS	120	180	85	70	1340	2700	8.05
