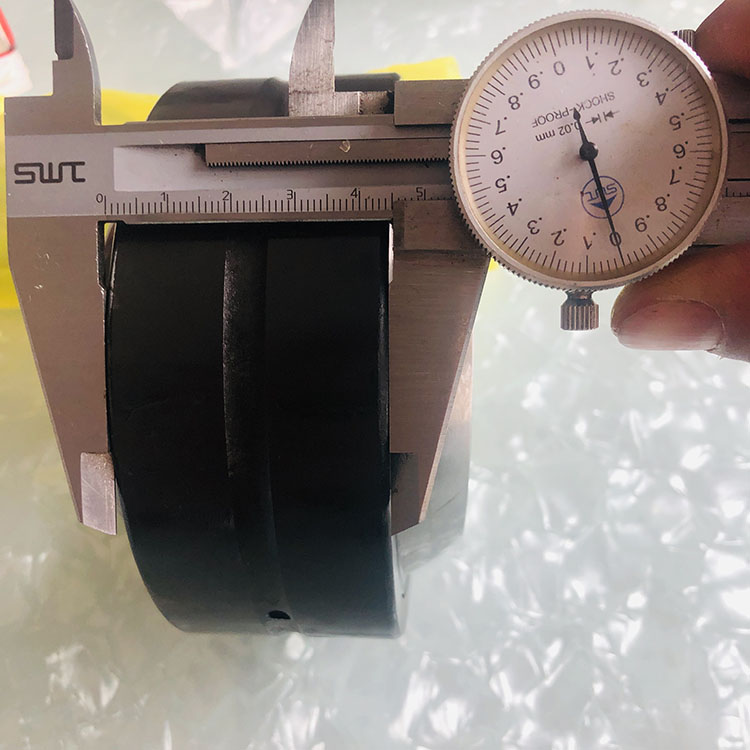

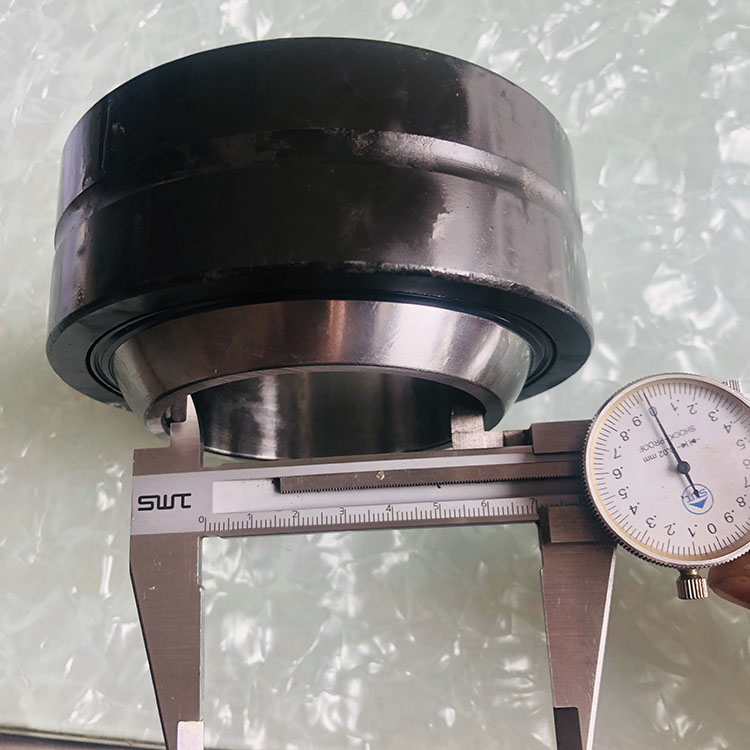

GE70FW 2RS Spherical Plain Bearing

70x120x70mm GE70FW 2RS bearing ,we have bearing in stock now ,sample can be provide in advance .

item no.:
GE70FW 2RS
lead time:
3 DAYS
shipping port:
NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
MOQ:
100

products details

GE70FW 2RS Spherical Plain Bearing Specification :

Inner diameter : 70mm

Outer diameter : 120mm

Heright : 70mm

Material ； Chrome steel Gcr15

Application:suitbale for high shock loads and medium to heavy industrial/mechanical load appllications requiring low friction, they do not require maintenance.

We also can Produce other Spherical Plain Bearing for you :

Designation	d	D	B	C	Dynamic	Static	Weight
					load	load	(Kg)
					(KN)	(KN)
GE15FW 2RS	15	30	16	10	30	60	0.049
GE17FW 2RS	17	35	20	12	42	83	0.083
GE20FW 2RS	20	42	25	16	68	137	0.153
GE25FW 2RS	25	47	28	18	88	176	0.203
GE30FW 2RS	30	55	32	20	112	224	0.304
GE35FW 2RS	35	62	35	22	140	280	0.408
GE40FW 2RS	40	68	40	25	180	360	0.542
GE45FW 2RS	45	75	43	28	220	440	0.713
GE50FW 2RS	50	90	56	36	345	695	1.14
GE60FW 2RS	60	105	63	40	440	880	2.05
GE70FW 2RS	70	120	70	45	567	1140	3.01
GE80FW 2RS	80	130	75	50	690	1370	3.64
GE90FW 2RS	90	150	85	55	858	1730	5.22
GE100FW 2RS	100	160	85	55	924	1860	6.05
