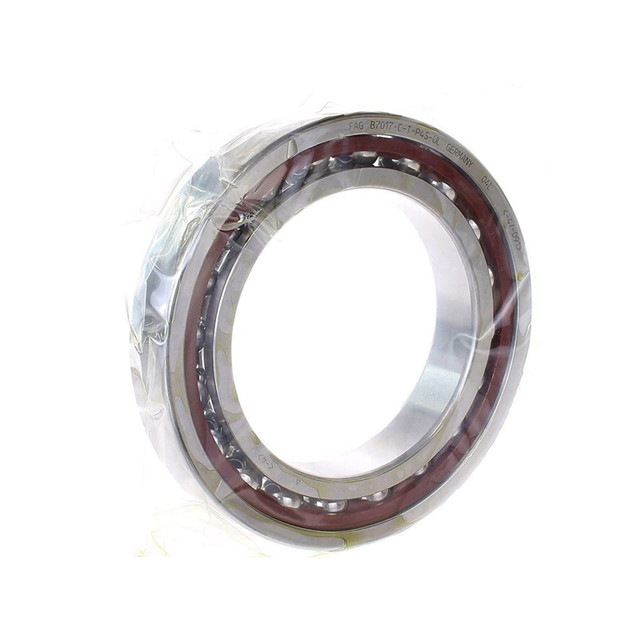

70*110*20 Angular Contact Ball Bearing isType of Spindle Bearing.
item no.:
H7014-C.T.P4A.ULlead time:
3product orgin:
Germanyshipping port:
ShanghaiMOQ:
1
7044.C.T.P4A.UL High Precision Angular Contact Spindle Bearing Specification:
Dimension :
Inner diameter:70 mm
Outer diameter:110 mm
Bore:20 mm
Material : Chrome steel Gcr15
contact angle α = 15°
OEM NO.:
4012801167437
7014CDGA/P4A

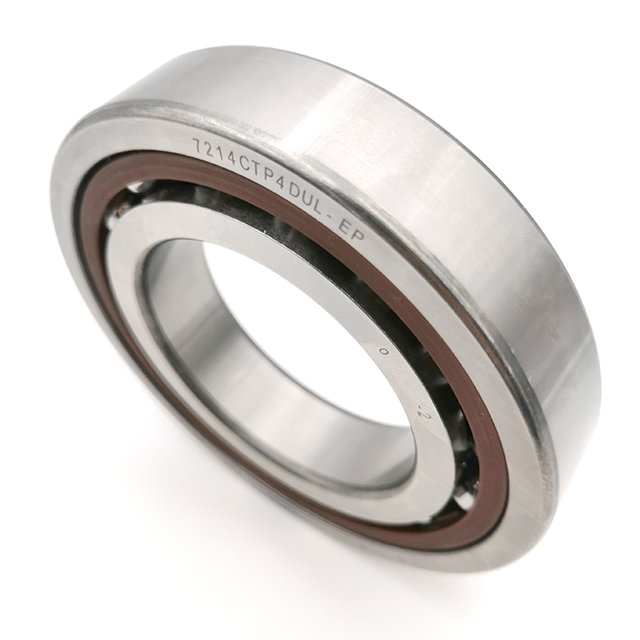

We also Can Produce Other Spindle Bearing Angular Contact Ball Bearing ,such as EBC 7214 CT P4UL,B7013-CT-P4S
 |
 |
The line connecting the steel ball contacting the ball bearing with the contact points of the inner and outer rings is at an angle to the radial direction. The contact angle is generally divided into 15°, 30°, and 40°, which are represented by the letters C, A, and B respectively. NSK specially produces such bearings with a contact angle of 25°, which is represented by A5.
Precision Angular Contact Ball Bearing Catalogue：
| Bearing No. | d | D | B |
| mm | mm | mm | |
| B7000-E-2RSD-T-P4S | 10 | 26 | 8 |
| B7001-E-2RSD-T-P4S | 12 | 28 | 8 |
| B7002-E-2RSD-T-P4S | 15 | 32 | 9 |
| B7003-E-2RSD-T-P4S | 17 | 35 | 10 |
| B7004-E-2RSD-T-P4S | 20 | 42 | 12 |
| B7005-E-2RSD-T-P4S | 25 | 47 | 12 |
| B7006-E-2RSD-T-P4S | 30 | 55 | 13 |
| B7007-E-2RSD-T-P4S | 35 | 62 | 14 |
| B7008-E-2RSD-T-P4S | 40 | 68 | 15 |
| B7009-E-2RSD-T-P4S | 45 | 75 | 16 |
| B7010-E-2RSD-T-P4S | 50 | 80 | 16 |
| B7011-E-2RSD-T-P4S | 55 | 90 | 18 |
| B7012-E-2RSD-T-P4S | 60 | 95 | 18 |
| B7013-E-2RSD-T-P4S | 65 | 100 | 18 |
| B7014-E-2RSD-T-P4S | 70 | 110 | 20 |
| B7015-E-2RSD-T-P4S | 75 | 115 | 20 |
| B7016-E-2RSD-T-P4S | 80 | 125 | 22 |
| B7017-E-2RSD-T-P4S | 85 | 130 | 22 |
| B7018-E-2RSD-T-P4S | 90 | 140 | 24 |
| B7019-E-2RSD-T-P4S | 95 | 145 | 24 |
| B7020-E-2RSD-T-P4S | 100 | 150 | 24 |
| B7021-E-2RSD-T-P4S | 105 | 160 | 26 |
| B7022-E-2RSD-T-P4S | 110 | 170 | 28 |
| B7024-E-2RSD-T-P4S | 120 | 180 | 28 |
| B7026-E-2RSD-T-P4S | 130 | 200 | 33 |
| B7028-E-2RSD-T-P4S | 140 | 210 | 33 |
previous :
83A070SH Motorcycle Engine Bearing
30x47x18mm 83A693CS30 bearing can used for motorcycle crankshaft.
180x225x22mm 180BA2256 Excavator bearing Running Angular Contact Ball Bearing,we have this bearing in stock .
143*175*16mm SF2907VPX1 Angular Contact Ball Bearing,we have this bearing in stock now ,can with fast dispatch .

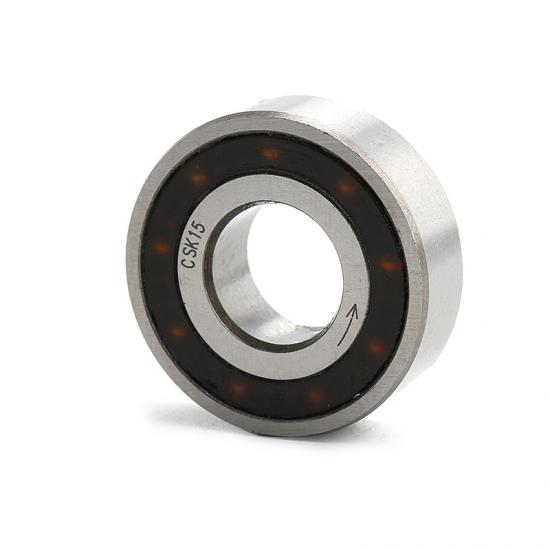

15*35*11 mm CSK15PP Clutch Bearing are produce with Chrome steel Gcr15 material ,this bearings can used for washing machines.
