LFR5201KDD U Groove Track Roller Bearings 12x35x15.9mm LFR5201KDD U groove track roller bearings are produce with Chrome steel Gcr15 ,we can provide sample for you test . more
SG25 U Groove Ball Track Guide Bearings 8*30*14mm SG25 bearings are produce with Chrome steel Gcr15 ,we can provide sample before order . more
S51106 Thrust Ball Bearings 30x47x11mm S51106 Stainless steel thrust ball bearing,produce with stainless steel ,we can provide with OEM service for you . more
inner diameter 73,025 mm,outer diameter 112,712 mm and height 25,4 mm K29685-29620 Bearings are produce with Chrome steel Gcr15 ,we have this bearings in stock ,for detailed price ,contact with us now .
item no.:
K29685-29620lead time:
7 daysproduct orgin:
Chinashipping port:
NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAIMOQ:
50K29685-29620 Tapered roller bearings Specification:
Inside Diameter: 73.025 mm Outside Diameter: 112.712 mm Width: 25.4 mm
Material :Chrome steel Gcr15

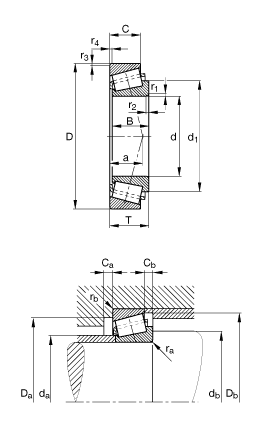

| Bearings No. | K29685-29620 |
| a | 26 mm |
| B | 25.4 mm |
| C | 19.05 mm |
| Ca min | 5 mm |
| Cb min | 6 mm |
| Da min | 101 mm |
| Db min | 109 mm |
| d1 | 95.6 mm |
| da max | 80 mm |
| db min | 86 mm |
| r1,2 min | 3.6 mm |
| r3,4 min | 3.3 mm |
| ra max | 3.6 mm |
| rb max | 3.3 mm |
| Cr | 97000 N, Basic dynamic load rating, radial |
| C0r | 154000 N, Basic static load rating, radial |
| Limiting speed | 6100 1/min |
| Reference speed | 1/min |
| Cur | 19500 N, Fatigue limit load, radial |
| e | 0.49 |
| Y | 1.23 |
| Y0 | 0.68 |
| mass | 0.993 kg |

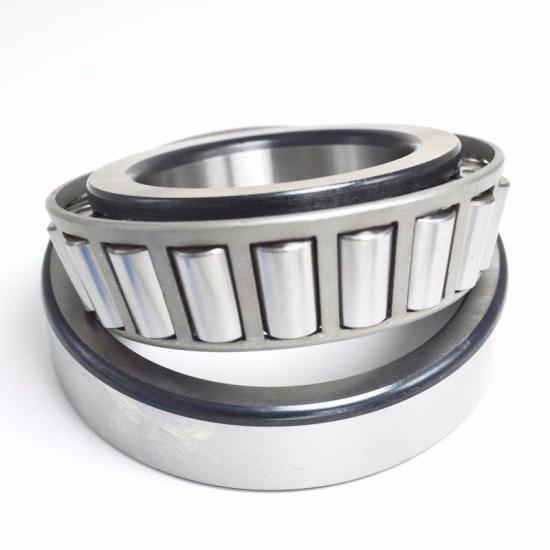

The structure of taple roller bearing :
We can prodive different type of taper roller bearings ,if you are interested ,pls feel free to contact with me ,here are some KOYO bearing number for your reference:
Taper roller bearing have widely application:
For more bearings ,pls contact with us free at info@bearings-factory.com
| Bearing No. | Boundary dimensions(mm) | |||
| d | D | T | B | |
| 323/32R | 32 | 75 | 29.75 | 28 |
| 32907JR-2 | 35 | 55 | 14 | 14 |
| 32007JR | 35 | 62 | 18 | 18 |
| 33007JR | 35 | 62 | 21 | 21 |
| 30207CR | 35 | 72 | 18.25 | 17 |
| 30207JR | 35 | 72 | 18.25 | 17 |
| 32207-1R | 35 | 72 | 24.25 | 23 |
| 32207JR | 35 | 72 | 24.25 | 23 |
| 33207JR | 35 | 72 | 28 | 28 |
| 30307DJR | 35 | 80 | 22.75 | 21 |
| 30307XR | 35 | 80 | 22.75 | 21 |
| 30307JR-1 | 35 | 80 | 22.75 | 21 |
| TR0708-1R | 35 | 80 | 32.75 | 31 |
| 32307JR | 35 | 80 | 32.75 | 31 |
| 32908JR | 40 | 62 | 15 | 15 |
| 32008JR | 40 | 68 | 19 | 19 |
| 33008JR | 40 | 68 | 22 | 22 |
Bearings KOYO 32008jr are single row taper roller bearing with size 40*68*19mm, and the material Chrome steel Gcr15 ,we have this bearing with 665 PCS in stock now .
Japan original NSK Tapered Roller Bearing R37-7 with size 37x77x12/17mm
30YM1/48Y1 Steering Head Bearing with dimension 30*48*12 mmcan be used For Column Izh Jupiter Izh Planeta,we have bearings in stock now ,can provide with short delivery time.
184.15x242.888x95.25 mm double row inch taper roller bearing LM637349NW LM637310D,we have this bearings in stock now ,can provide with short delivery time .
WIth size 20x42x15 mm ,Tapered Roller Bearing 32004 X are produce with Chrome steel GCr15 ,we have this bearing in stock now ,and free sample can be provide for test in advance.
High Quality 91683/22.5 & 91683/24 Bearings Can Used For Electric Tricycle Front Steering Pressure Bearing,We Have Products in Stock Now.
