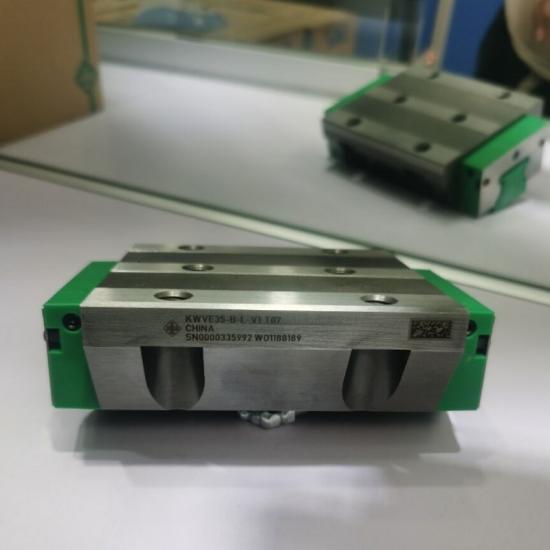

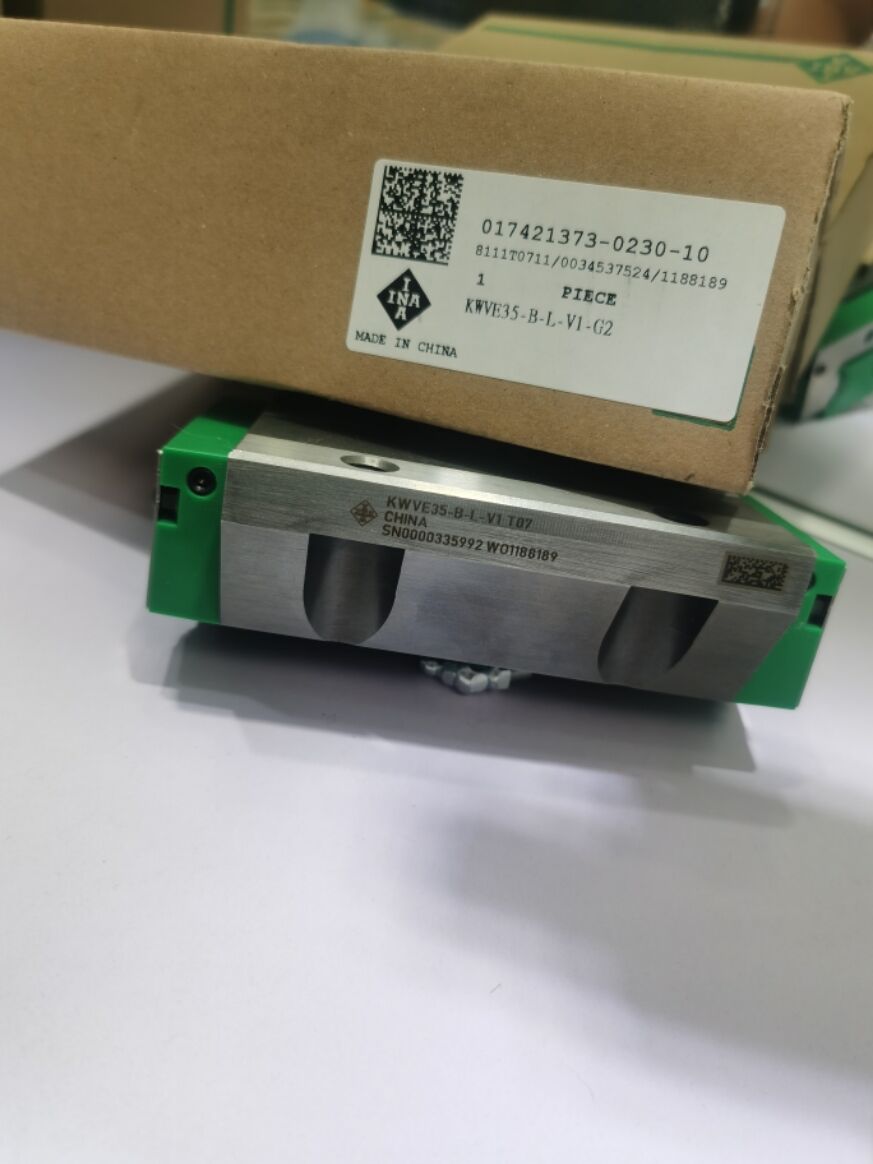

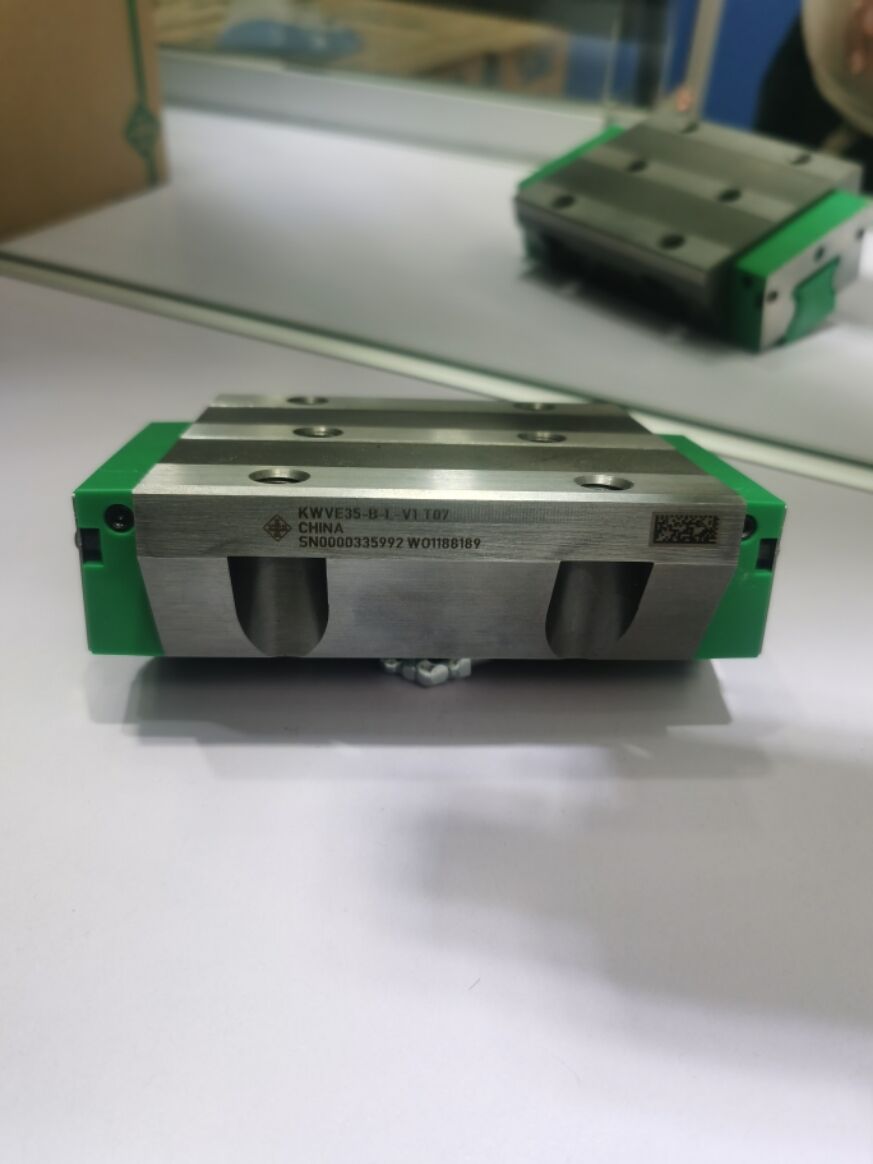

KWVE35-B-L-V1-G2 INA Linear Motion Bearing

34*100*145 mm KWVE35-B-L-V1-G2 are with long carriage, four-row, full complement ball set.

item no.:
KWVE35-B-L-V1-G2
lead time:
3 days
product orgin:
China
shipping port:
NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
MOQ:
5

products details

Item Number：

KWVE35-B-L-G1-V1
KWVE35BLG1V1
KWVE35-B-L-G2-V1

Technical details (B-L-G2-V1)

B=Standard Carriage

Four-Row,

Full Complement Ball Set

L=Long Carriage.

G2=Precision Class 2.

V1=No Preload.

Type:Linear Plain Bearing Unit

Inner (d) :34,00mm

Outer (D):100,00mm

Width (B) :145,00mm

Weight :2.52 kgs

We also can provide with other INA Carriage:

KUVE15 KUVE20 KUVE25 KUVE30 KUVE35 KUVE45 KUVE55

KUVE15B KUVE20B KUVE25B KUVE30B KUVE35B KUVE45B KUVE55B

KUVE15BL KUVE20BL KUVE25BL KUVE30BL KUVE35BL KUVE45BL KUVE55BL

KUVE15BEC KUVE20BEC KUVE25BEC KUVE30BEC KUVE35BEC KUVE45BEC KUVE55BEC

	H	B	L
	mm	mm	mm
KWVE20-B-L	30	63	88,9
KWVE25-B-L	36	70	109,1
KWVE30-B-L	42	90	127
KWVE35-B-L	48	100	145
KWVE45-B-L	60	120	172,7
KWVE55-B-L	70	140	211,6

Linear guide rail and block system is a kind of rolling guide, which is an infinite rolling cycle between the steel ball and the guide rail, so that the load platform can easily move linearly along the guide rail with high precision and reduce the friction coefficient, to achieve high positioning accuracy. The design of the final unit between the slider and the guide rail enables the linear guide to bear the load in all directions, such as up, down, left and right. The patented reflow system and the simplified structural design make the linear guide have smoother and less noisy motion.

Application of linear guide and blocks:

Grinding machine, milling machines, lathes, drilling machine, and comprehensive processing machines, discharge manufacturing machine, boring machine, line cutting machine, precise measurement instrument, woodworking machinery, handling machine, and the shipping device.
