Linear Ball Bearing LM25UU

China linear bearing LM25UU with size 25*40*59 can used for face mask machine or 3d print machine .

item no.:
LM25UU
lead time:
3-7 DAYS
product orgin:
China
shipping port:
NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
payment:
20% TT in advance
MOQ:
100

products details

Linear Ball Bushing Bearing LM25UU Introduction :

Type	Linear Ball Bearing
Number	LM25UU
Inner Diameter	d:25mm
Outer Diameter	D:40mm
Bore	59mm
Weight	0.22
Material	GCR-15 Chrome steel

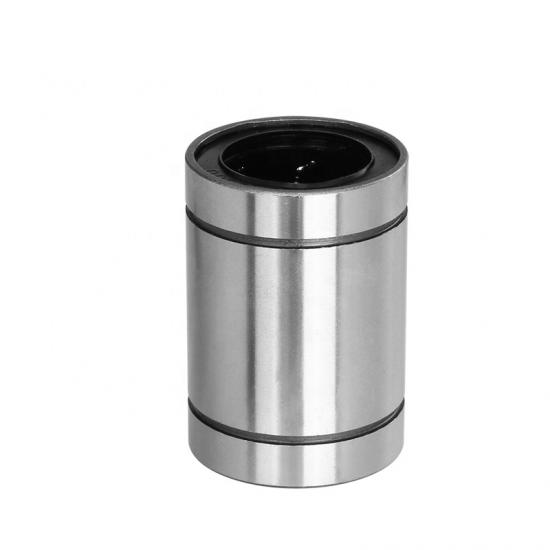

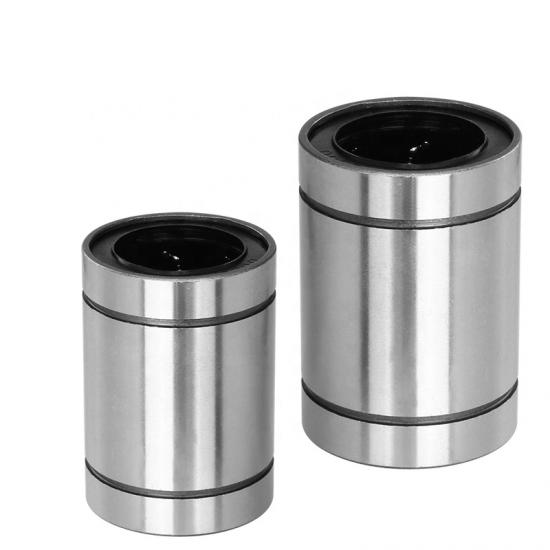

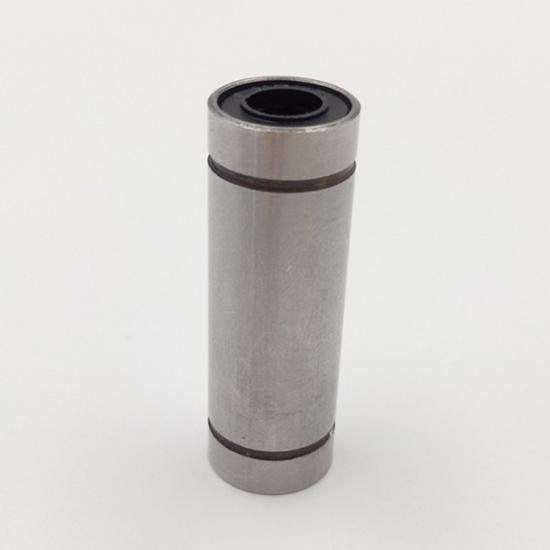

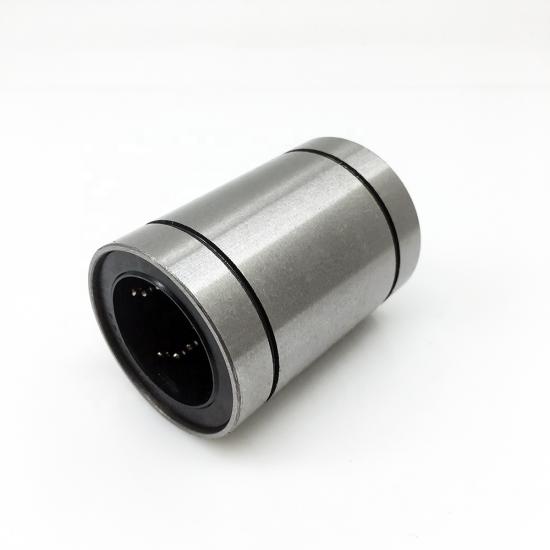

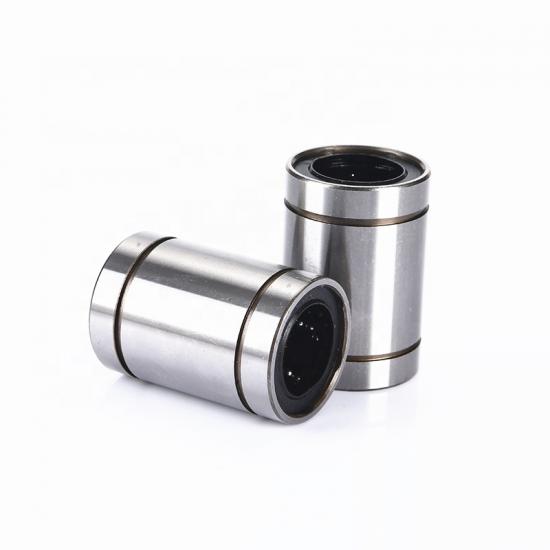

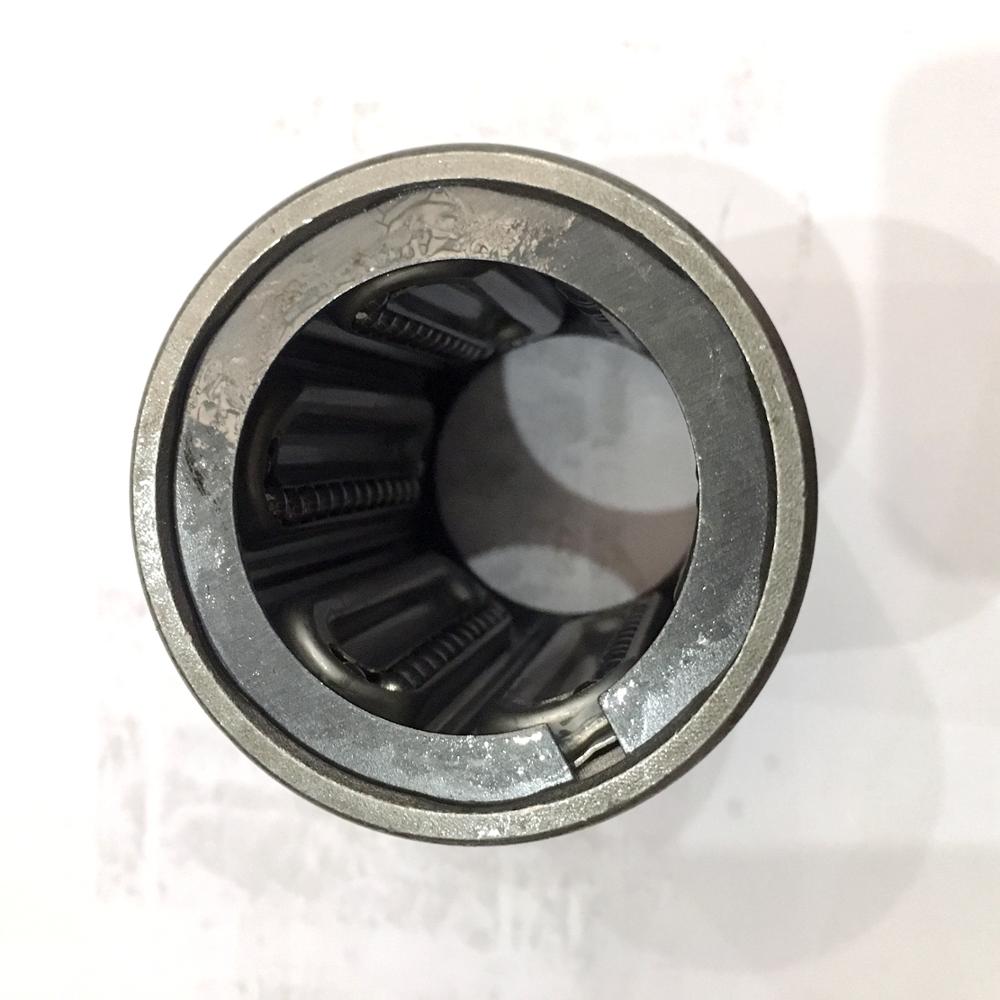

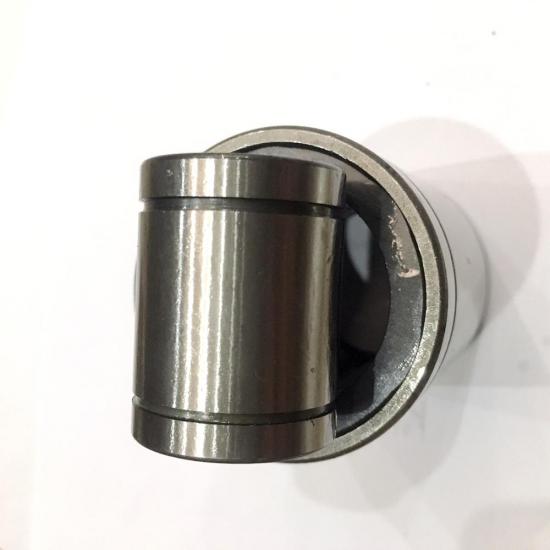

High Quality Linear Ball Bearing Picture

Features of China Linear Ball Bearing

With high quality Chrome steel material ,the linear bearing have high harness

High temperature &anti-corrosion

Low noise with long working life

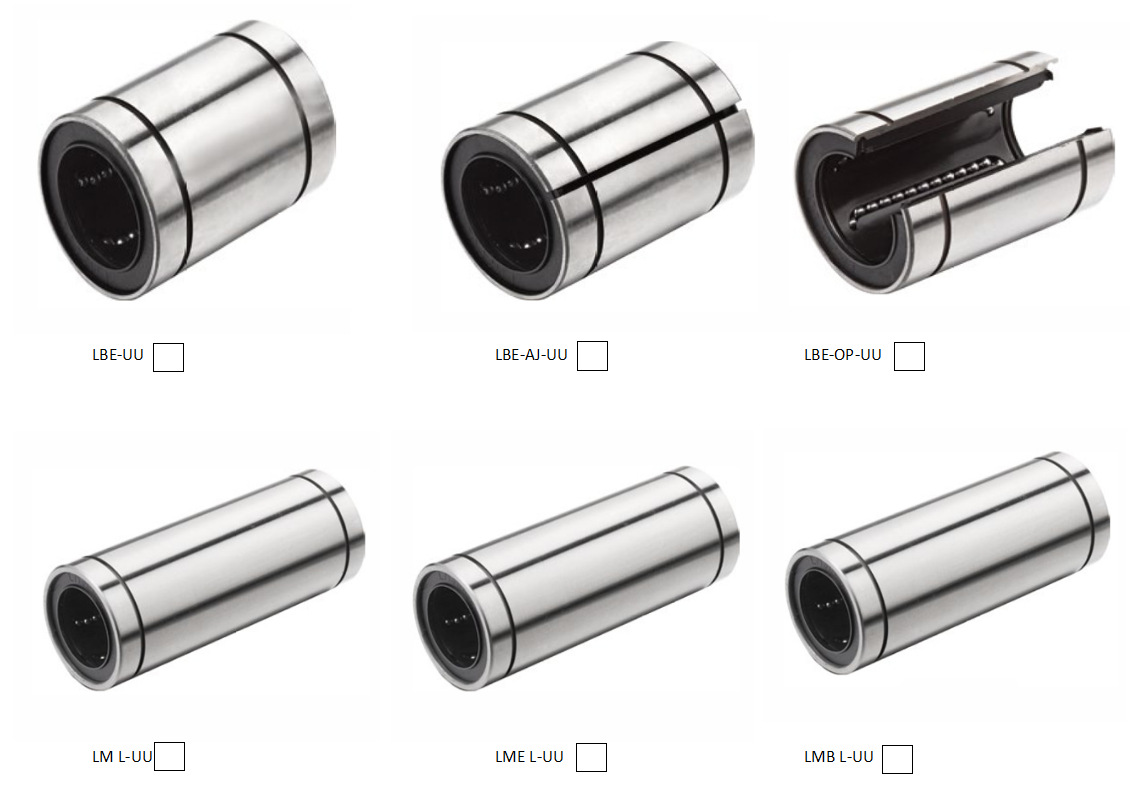

What Are The Suffixes and Profixes Mean of Linear Bearing ?

"LM" metric standard type linear bearing

"LME" inch standard type linear bearing

"UU" rubber seals on the both sides of the long type linear bearing

"OP" open type linear bearing

"AJ" adjustment type linear bearing

*LM...UU: LM...(sylinder), LM...OP(open type), LM...AJ(clearance adustable)

*LME...UU: LME...(sylinder), LME...OP(open type), LME...AJ(clearance adustable), LM...UU & LME...UU: Long type

Linear Ball Bearing

Below Here Are Some Linear Bearing For Your Reference

Model	Inner size(mm)	Outer size(mm)	Length(mm)	Weight(kg/pc)
LM6UU	6	12	19	0.007
LM8UU	8	15	24	0.015
LM10UU	10	19	29	0.03
LM12UU	12	21	30	0.032
LM13UU	13	23	32	0.043
LM16UU	16	28	37	0.069
LM20UU	20	32	42	0.087
LM25UU	25	40	59	0.22
LM30UU	30	45	64	0.25
LM35UU	35	52	70	0.39
LM40UU	40	60	80	0.585
LM50UU	50	75	100	1.58
LM60UU	60	90	110	1.86
LM80UU	80	120	140	4.42

Model	Inner size(mm)	Outer size(mm	Length(mm)	Weight(kg/pc)
LME8UU	8	16	25	0.02
LME12UU	12	22	32	0.041
LME16UU	16	26	36	0.057
LME20UU	20	32	45	0.091
LME25UU	25	40	58	0.215
LME30UU	30	47	68	0.325
LME40UU	40	62	80	0.705
LME50UU	50	80	100	1.13
LME60UU	60	90	125	2.05
LME80UU	80	120	168

Model	Inner size(mm)	Outer size(mm)	Length(mm)	Weight(kg/pc)
LM6LUU	6	12	35	0.016
LM8LUU	8	15	45	0.031
LM10LUU	10	19	55	0.062
LM12LUU	12	21	57	0.08
LM13LUU	13	23	61	0.09
LM16LUU	16	28	70	0.145
LM20LUU	20	32	80	0.18
LM25LUU	25	40	112	0.44
LM30LUU	30	45	123	0.58
LM35LUU	35	52	135	0.795
LM40LUU	40	60	154	1.17
LM50LUU	50	80	192	2.1
LM60LUU	60	90	211	3.5

Model	Inner size(mm)	Outer size(mm)	Length(mm)	Weight(kg/pc)
LME8LUU	8	16	45	0.031
LME12LUU	12	22	57	0.08
LME16LUU	16	26	70	0.145
LME20LUU	20	32	80	0.18
LME25LUU	25	40	112	0.44
LME30LUU	30	47	123	0.58
LME40LUU	40	62	154	1.17
LME50LUU	50	75	192	3.1
LME60LUU	60	90	211	3.5

Application of High Quality Linear Bearing:
Linear bearings are more and more widely used in precision equipment such as electronic equipment, food machinery, packaging machinery, medical machinery, printing machinery, textile machinery, machinery, instruments, robots, machine tools, CNC machine tools, automobiles and digital 3D coordinate measuring equipment Or in the special machinery industry.

Our Advantages :

1,Low MOQ: Can meet your small order request.

2,OEM accepted: Can make products as per your design.what you need to do is sending us your drawings

3,Good service: Treat every client as friend.

4,Good quality: Have strict quality inspection system. Good reputation in the market.

Mark:if you need the matched Linear motion slide units,please feel free to contact us
